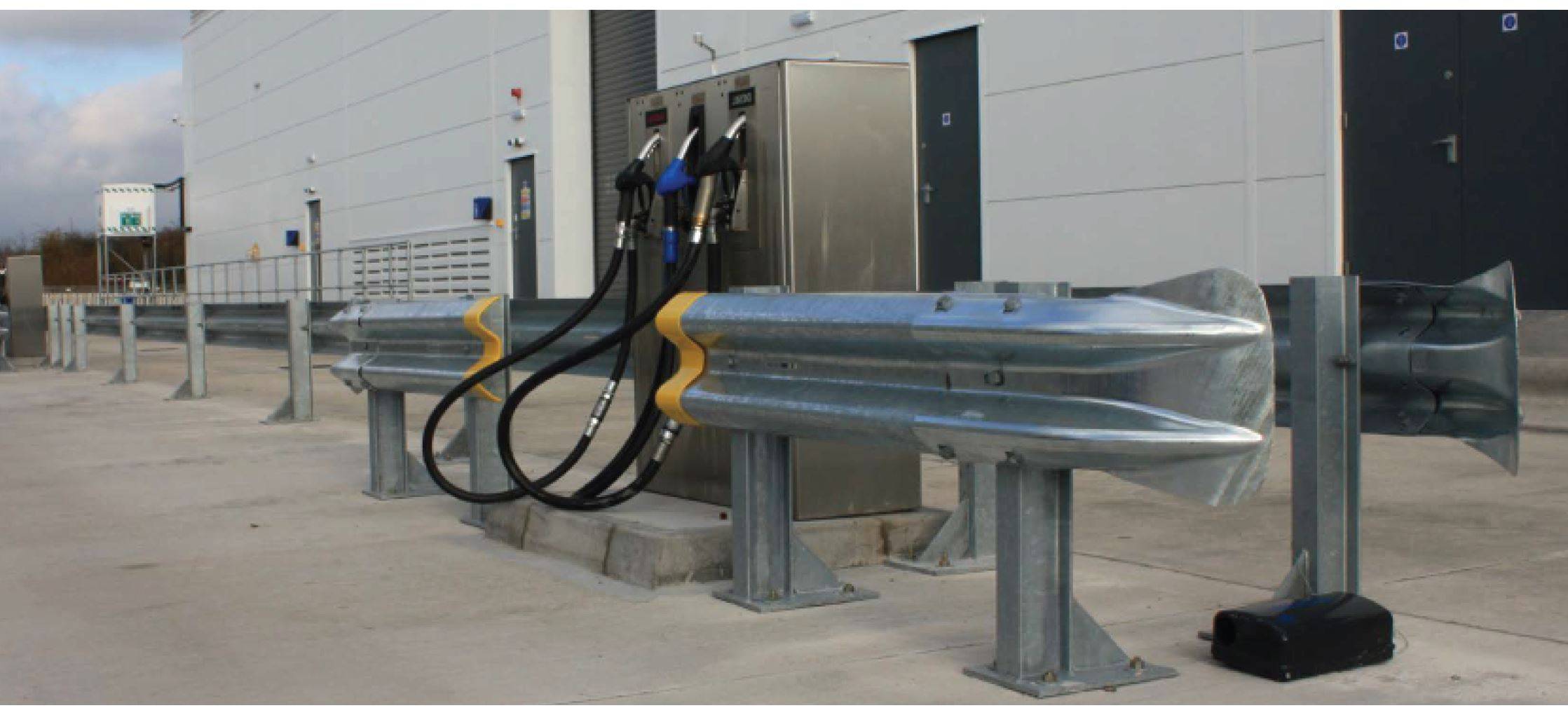

Floor Mounted Armco Barrier - P224 - Vehicle Restraint System

The P224 Rigid Post is most commonly used in industrial type applications to limit the system deflection. This is available in standard 547, 610, 747 and 1087 mm high posts.

The Rigid Post systems are effective in protecting errant vehicles, assets and buildings. Its design means there is limited deflection under impact, meaning it can be placed close to wall lines. Posts can be spaced at 3.2 m centres for a ‘visual deterrent’ system that will provide demarcation only.

Can be used in conjunction with the integrated BS 6180 compliant handrail and mesh products.

Features and benefits:

• Eurocode and BS EN 1991-1 compliant.
• Standard force and twice force systems available (150 and 300 kN).
• Deflection zones as low as 25 mm.
• Available in bolt down and cast in models.
• Post heights can be adjusted to accommodate further protection rails.
