Flooring Transitions Multi Height Trim System - TopClip - Range 0 mm to 20 mm - Flooring Transition
Verified by manufacturer 1 month ago
QTC36T/QAB1
QTC36T/QAB1
ISO 14001 Environmental Management Systems
Certificate type
ISO 9001 Quality Management
Certificate type
Two-part floor transition strips
Application
Suitable for use in contract and domestic locations and in flooring.
Description
Flexible multi-height flooring transition profiles.
Features and benefits:
- Curve on-site, to a radius of 750 mm.
- All tops fit all bases, and can be combined to accommodate most floorcovering thicknesses.
- Provides a neat, safe and durable junction between adjacent floor finishes.
- 24 colours available.
- Self-levelling.
- Third party certification: ISO 9001. ISO 14001.
- Independently tested by Grip Potential Ltd.
- All products are available in a variety of stock lengths and packing; see manufacturer's literature for details.
General information
Color | Black Blue Grey Red Green |
Finish | Matt Anti-slip Anti-skid |
Material | Polyvinyl chloride (PVC) PVC-U |
Shape | Crescent |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year Guidance for specification option: On project application. |
Uniclass | |
CAWS | M40/5 Tiling to M40/110 Tiling to M50/70 Edgings and cover strips M50/740 Edgings and cover strips M51/510 Edgings and cover strips |
Product range |

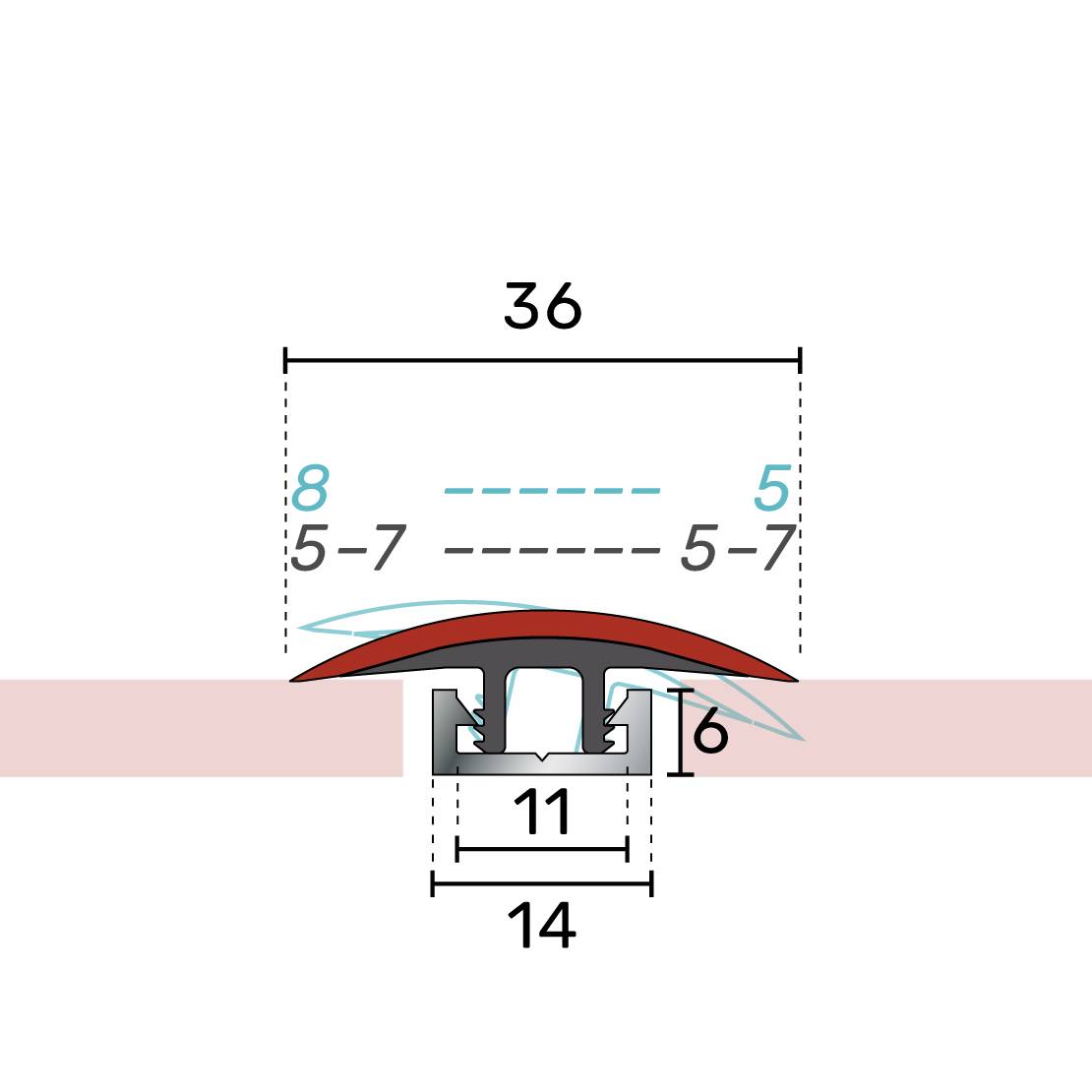

Specification data - Two-part floor transition strips
Top insert | |
Profile | Punched gripper option available for carpets.Guidance for specification option: Base; consult manufacturer for details. Height range achieved in combination with various bases.Guidance for specification option: Top. |
Colour | 6 Claret.6 Black.10 Rustic.10 Peat.11 Dark Blue.11 Regency.11 Spruce.11 Granite.13 Poppy.15 Flint.16 Royal Blue.21 Fawn.26 Light Grey.30 Jade.33 Tangerine.49 Polar Grey.51 Ivory.52 Sky.53 Lime.56 Sun.64 Mist.67 Yellow.77 Desert.81 White. |
Third-party certification | Groundworks Green Business Certificate. |
Slip resistance value | To BS 7976-2, 60 dry, 36 wet. Guidance for specification option: All tread options have a minimum PTV of 36+ in a wet test and 60+ in a dry test; this is considered ‘Low Slip Potential’. |
Width | 36 mm. |
Height | 5–8 mm to 5–8 mm. |
Angle | 0°. |
Profiles (Top / base) | QTC36T/QAB1. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Polyvinyl chloride (PVC) PVC-U |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
Third party certifications
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Third party certifications
Literature
Stair Nosings (Stair Edgings) and Flooring Trims Colours (with LRV)
Quantum Flooring Transition Profiles (all floorcovering types) Product Data Sheet
Installation Guide & Detailing Data Sheet for Flooring Transitions
Education Environments Flooring Trims and Accessories Sector Guide
Quantum Flooring Product Guide 2024
Healthcare Environments Flooring Trims and Accessories Sector Guides
Case studies
OFFICE - ALBION MILLS - TOPCLIP TRANSITIONS
