Flowshield LXP System
Verified by manufacturer over a year ago
A two pack, solvent free, flexible polyurethane topping.
Application

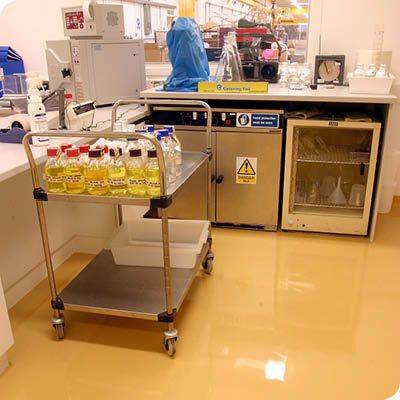

For use over asphalt, wood, steel and concrete to provide a flexible, easy to clean, chemical resistant floor topping. Typical uses are process, manufacturing, packaging and warehousing areas subjected to heavy foot and pallet truck traffic and where a degree of flexing of the floor is expected.
IMPORTANT: All specification information must be checked against the individual site requirements. Flowcrete advises that specifications are confirmed with their technical experts.
Description
A two pack, solvent free, flexible polyurethane topping applied at 1.5 mm.
Features and benefits:
- Seamless finish (except for underlying slab joints).
- Chemical resistance to sugars and acids.
- Easy to clean and sterilise, low maintenance requirement.
- Flexible, can be used over asphalt, wood and steel.
- High abrasion resistance.
- Solvent free; low odour.
General information
Color | Brown Green Grey Red |
Finish | Other Guidance for specification option: Seamless - (except for underlying slab joints). |
Material | Resin |
Warranty description | Six year |
Uniclass | |
CAWS | M12/10 Resin flooring M12/110 Resin flooring |

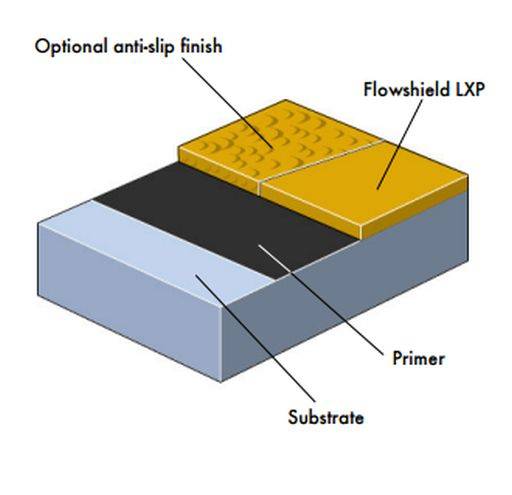

Specification data - Resin flooring systems
Substrate | |
Testing | Moisture content of substrates dry to 75% RH. |
Preparation | Shot blast. |
Primer | Flowprime LXP (Concrete, wood, asphalt).Peran Primer W (Steel). |
Resin flooring | Flowshield LXP (To FeRFA Type 5) |
Surface treatment | Optional anti-slip finish. |
Bond strength | >2 N/mm². |
Certification | CE Marked. |
Colour options | Goosewing Grey 222. Mid Grey 280. Dark Grey 281. Beige 326. Forest Green 754. |
Cure speed | Light traffic: 24 hours, Full traffic: 2 days , Full chemical cure: 7 days. |
Flexural strength | >15 N/mm². |
Impact resistance | 13 Nm. |
Slip resistance | Dry >40 low slip potential. |
TensileStrength | >10 N/mm². |
Toxicity | Taint free to sensitive foodstuffs. |
Water permeability | 0.001 kg/m² x h^(0.5). |
Wear resistance | 100 mg loss (abrasion) to EN ISO 5470-1. |
Dimensions | 1.5 mm. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 2 |
 Revit | - | 3 |
