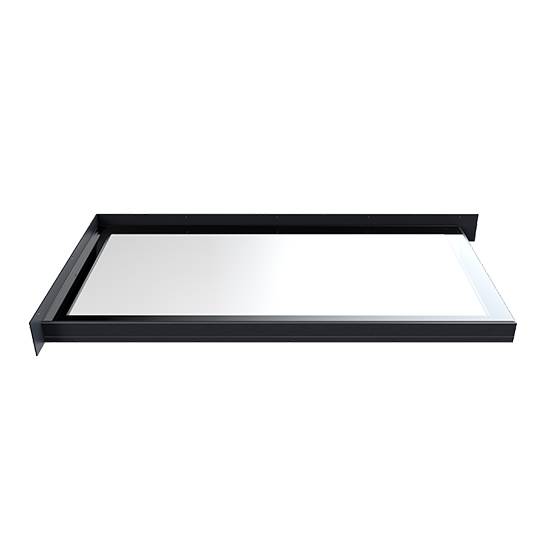

Flushglaze Fixed Rooflight - Two Wall Abutment
Verified by manufacturer 1 month ago
Double glazed ridgeglaze
Double glazed ridgeglaze
BBA Agrément Certificate
Certificate type
Qualicoat approval
Certificate type
Glazed single part rooflight with aluminium frame for flat roof applications, designed to be fixed to builders upstand with two edge support and structural fix for two walls.
Application
Applicable for pitched roof to be structurally fixed to a wall or building on two sides.
Description
A range of fixed rooflights available in various specifications, shapes and sizes. Flushglaze fixed rooflights are designed to provide maximum daylight with minimal visible internal structure.
The Flushglaze rooflight range was the first in the UK to be certificated by the British Board of Agrément with tests being carried out to determine air permeability, water tightness, durability of sealants, resistance to intrusion and cyclic loads.
Flushglaze rooflights have also been rated Secured by Design and tested to LPS2081 Issue 1: 2015 so that they are compliant with Approved Document Q: Security in Dwellings.
The Flushglaze range also features a Qualicoat approved powder coated finish.
Flushglaze (Double Glazed) Rooflight:
A fixed glazing system comprising of painted aluminium extrusion and double glazed unit. Available in either single or multipart format, the latter consisting of multiple sections of glazing using silicone seal or back to back angles.
Flushglaze Secure and Secure+ (Secured by Design) Rooflight:
A fixed glazing system comprising painted aluminium extrusion and double glazed unit. Available in either single or multipart format, the latter consisting of multiple sections of glazing. Tested and approved to LPS2081 Issue 1:2015.
Flushglaze (Fire Rated) Rooflight:
A fixed glazing system comprising painted aluminium extrusion and double glazed fire rated unit. Available in single part format only. Performance tested to achieve 30 minutes integrity and insulation.
Flushglaze (Ridgeglaze) Rooflights:
A fixed glazing system comprising painted aluminium extrusion and double glazed unit. Designed for installation along the ridge of a roof (Ridgeglaze). Available in single format only.
Flushglaze (Eaves) Rooflights:
A fixed glazing system comprising painted aluminium extrusion and double glazed unit. Designed to be installed within the eaves of a building with a vertical and horizontal pane. Available in single format only.
Flushglaze (Triple Glazed) Rooflight:
A fixed glazing system with improved thermal performance comprising painted aluminium extrusion and triple glazed unit. Available in either single or multipart format, the latter consisting of multiple sections of glazing.
Flushglaze (Walk-On) Rooflight:
A fixed glazing system comprising painted aluminium extrusion and double glazed walk-on unit. Available in either single or multipart format, the latter consisting of multiple sections of glazing.
Features and benefits:
- Visual quality of glass: To the Hadamar standard.
- To LPS 2081, ISO 9001 and ISO 14001.
- British Board of Agrément (BBA) - certficate.
- Loss Prevention Certification Board (LPCB): certificated product.
- The Rooflight Association Members.
- Qualicoat: approved applicator.
General information
Color | Grey Guidance for specification option: Standard. RAL 7015 slate grey. Other Guidance for specification option: RAL, special order. |
Finish | Powder-coated Guidance for specification option: Qualicoat approved. |
Material | Aluminium Glass |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year Guidance for specification option: If installed by Glazing Vision Ltd Two year Guidance for specification option: If installed by alternate supplier |
Uniclass | |
CAWS | L10/45 Rooflights L10/460 Rooflights |
Specification data - Framed rooflights
Form | Flat. |
Size | As drawing.As schedule. |
Frame | |
Material | Aluminium.Guidance for specification option: Extruded aluminium profiles, grade 6063 T6. Polyester powder coated, with concealed fixings (except circular variants). |
Finish | |
Coating | Polyester powder coating.Guidance for specification option: To the Qualicoat Standard. |
Colour | RAL 7015, slate grey.Guidance for specification option: Standard. RAL, special order.Guidance for specification option: Consult manufacturer and insert requirements. |
Glazing or infill | |
Type | Glass units. |
Construction | Double glazed ridgeglaze.Manufacturer guidanceMinimum glass specification (may change subject to size/application). |
Colour | Clear. |
Integral kerb | Guidance for specification option: Consult manufacturer. |
Operation | |
Type | Fixed. |
Accessories | Not required.Kerb cover extrusion.Guidance for specification option: To mask the structure of the kerb top from external visibility and provide a plaster stop bead. Enduroshield easy clean glass treatment. |
Execution | Installation of framed rooflights. |
Height | Guidance for specification option: Insert requirement, 150 mm minimum. Manufacturer guidanceKerb height. |
Thickness | Guidance for specification option: Insert requirement, 75 mm minimum. Manufacturer guidanceKerb thickness. |
Type | Round. Guidance for specification option: Not available for Ridgeglaze or Eaves Flushglaze. Square. Special order. Guidance for specification option: Insert requirement. |
Seals | Silicone, poly-butyl and EPDM rubber seals. |
Security | Secured by Design tested to LPS2081 Issue 1:2015. Guidance for specification option: Secure and Secure+ Flushglaze approved. |
Outer | 6 mm clear toughened heat soak tested. Manufacturer guidanceGlazing. |
Spacer | 16 mm black silicone sealed argon filled cavity with warm edge spacer bar. Manufacturer guidanceGlazing. |
CenterCoreSpacing | Not applicable. Manufacturer guidanceGlazing. |
Inner | 8.8/ 9.5 mm clear soft low E laminated. Manufacturer guidanceGlazing. |
Glass | Solo. Modular with silicone seals at the join. Modular with aluminium back to back angles at the join. Modular with glass fins at the join. Wall abutted (maximum three sides). Manufacturer guidanceFlushglaze configurations. |
Treatment | Enduroshield Easy Clean Treatment. Guidance for specification option: Gives a non-stick surface making the glass easier to clean and keep clean, stay clean for longer and resist staining and discoloration. Privacy glass. Guidance for specification option: Sand blasting or acid etched glass is available either in 100% coverage or patterns to your specification. Non slip. Guidance for specification option: Anti slip frit patterns available for walk on specification glass in standard ‘dot matrix’ design or patterns to your specification. Kerb top trim. Guidance for specification option: Hides the upstand and internal finishes such as plasterboard and insulation when viewed through the glass from above. Manufacturer guidanceGlass treatment. |
Sustainability data
Country of material origin | Europe |
Country of product manufacture | United Kingdom |
Material | Aluminium Glass |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | Revit 2016 | 2 |
 IFC | IFC2X3 | 1 |
