FOAMGLAS® PERINSUL HL - Cellular Glass insulation

Name: FOAMGLAS® PERINSUL HL - Cellular Glass insulation
Brand: FOAMGLAS®
SKU: 5sDFZuKhF6J3mE2TgaCUvq

Verified by manufacturer 10 days ago

FOAMGLAS®

Third party certifications:

BBA Agrément Certificate
Certificate type
Independent sustainability assessment
Certificate type
BREEAM - Certification
Certificate type

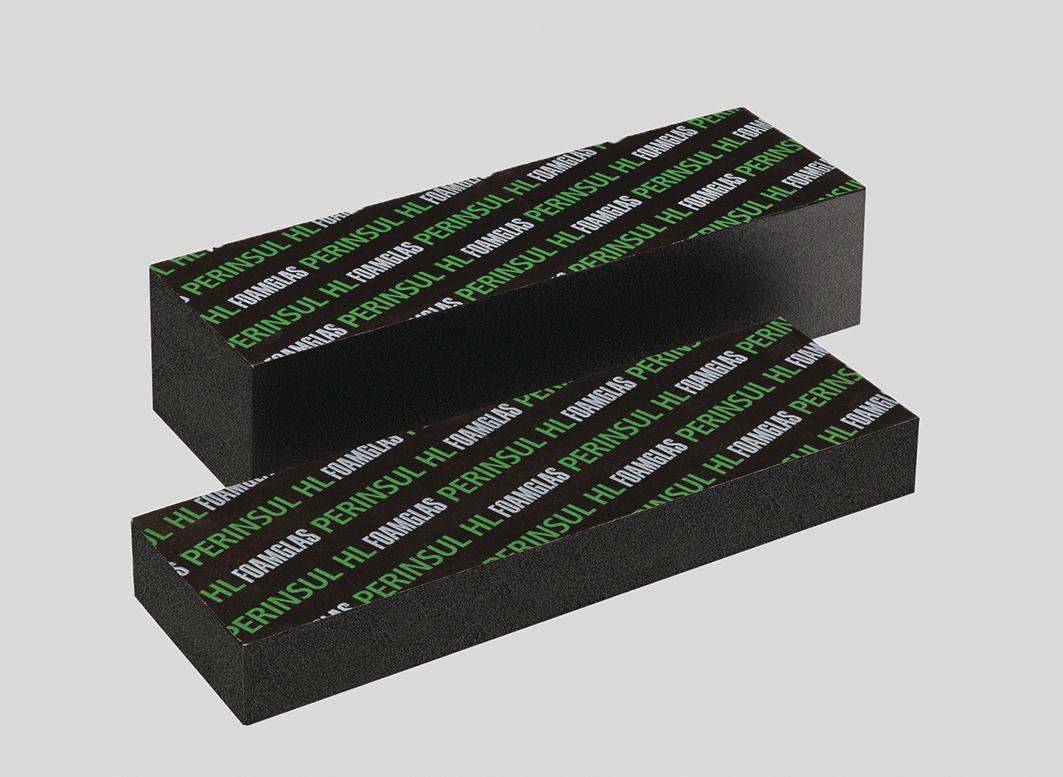

FOAMGLAS® PERINSUL HL is a very high density thermal insulation used to eliminate thermal bridging at structural junctions.

Jump to:

BOS

03301227638 Website

Application

Thermal breaks.

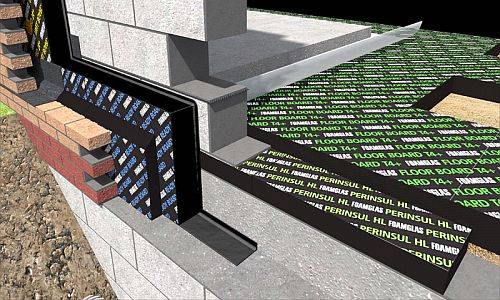

Floor-wall base element.
Beneath timber or metal frame sole plates.
Parapet upstands.
Structural junctions.

Description

A very high density thermal insulation used to eliminate thermal bridging at structural junctions.

Features and benefits:

Euroclass E.
Waterproof and moisture resistant due to its hermetically closed glass cell structure.
High compressive strength and dimensionally stable.
Highly resistant to all forms of infestation and vermin.
Resistant to organic solvents and acids.
Insulation manufactured primarily from recycled glass (≥60%).
Long-term efficiency and thermal performance over time.

Compressive strength:

FOAMGLAS® insulation has a high compressive strength, capable to take high loads without deformation or deflection due to its rigid cell structure. FOAMGLAS® passes EN 826 Annex A that defines the uniform load bearing capabilities of insulations which do not compress before the load capability is recorded.

FOAMGLAS® is dimensionally stable, neither shrinks nor swells and does not slump over time. It has a low co-efficient of expansion within the same range to steel, wood and concrete.

General information

Color	Black Green White Manufacturer guidance Black core with black / green liner
Finish	Other Guidance for specification option: PE/Glass Fleece Composite Liner (top and bottom)
Material	Cellular glass
Shape	Rectangle
Length	450 mm
Width	100 mm 140 mm 215 mm
Height	65 mm 100 mm 140 mm

Uniclass	Pr_20_93_33_12 Cellular glass thermal blocksPrimary
CAWS	F10/39 Thin joint autoclaved aerated concrete (AAC) common blockwork F10/37 Autoclaved aerated concrete (AAC) common blockwork F10/36 Concrete common blockwork F10/34 Thin joint clay common blockwork F10/33 Clay common brickwork F10/25 Manufactured stone blockwork F10/20 Manufactured stone blockwork F10/18 Concrete facing blockwork F10/10 Reclaimed brick facing brickwork F10/5 Facing brickwork F10/215 Concrete facing brickwork F10/230 Reclaimed brick facing brickwork F10/255 Concrete facing blockwork F10/110 Clay facing brickwork F10/360 Autoclaved aerated concrete (AAC) common blockwork F10/345 Concrete common brickwork F10/290 Manufactured stone blockwork F10/315 Clay common brickwork F10/355 Concrete common blockwork F10/295 Manufactured stone blockwork F10/370 Thin-joint autoclaved aerated concrete (AAC) common blockwork

Specification data - Cellular glass thermal blocks

Standard	To BS EN 13167.
Recycled content	≥60%.
Work sizes (length x width x height)	450 x 100 x 65 mm. 450 x 140 x 65 mm. 450 x 215 x 65 mm. 450 x 100 x 100 mm. 450 x 140 x 100 mm. 450 x 215 x 100 mm. 450 x 140 x 140 mm. 450 x 140 x 215 mm.
Density	200 kg/m³.
Compressive strength (minimum)	≥2.75 MPa to EN 826 annexe A.
Thermal conductivity (maximum)	Horizontal thermal conductivity λD ≤0.058 W/(m·K). Vertical thermal conductivity λD ≤0.068 W/(m·K).

Water vapour resistance	μ = ∞.
Sound reduction	≥28 dB at 100 mm thickness.
Third party product certification	British Board of Agrement (BBA Perinsul 14/5111).
Reaction to fire	Euroclass E. Guidance for specification option: Its use is not subject to any restriction on building height or proximity to boundaries. Refer to BBA Certificate Section 8 (page 06).
Facing	Bitumen coated and laminated with a PE/ glass fleece composite top and bottom (black and green).
Edges	90 degrees.

Sustainability data

Contains Red List materials	No
Country of material origin	Belgium
Country of product manufacture	Belgium
Material	Cellular glass
Recyclability	Production waste is reused as raw material in the factory or as filling material.
Recycled content As defined in clause 7.8 of BS EN ISO 14021	60 %

BIM objects

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform	Compatible	Version
Revit	-	1
IFC	-	1

Third party certifications

BBA Agrément Certificate

BBA Perinsul 14/5111

Independent sustainability assessment

LEED Certification

BREEAM - Certification

BREEAM Certification

Literature

PDS_FOAMGLAS® PERINSUL HL

TG2 Technical Guide_Perinsul HL

TDS_5.2_Wall - Prevention of Thermal Bridging - PERINSUL HL Load-Bearing Insulation (Brickwork, Blockwork)
