Fortis Wall-top Seating
Verified by manufacturer 3 months ago
FTW 2B 22L
FTW 2B 22L

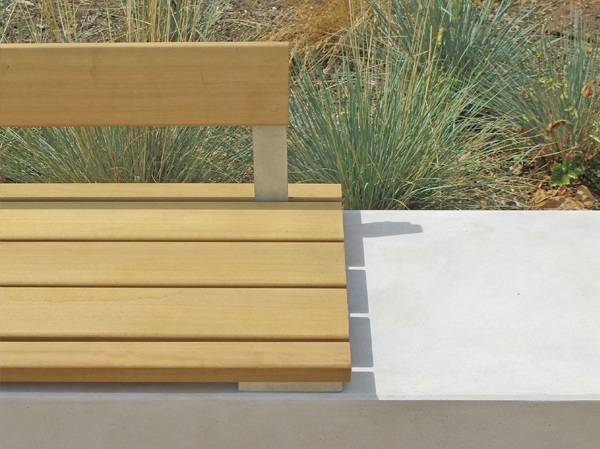

Wall-top timber seating.
Application
Suitable as wall-top seating for straight walls.
Description
Wall-top seating suitable for straight walls, allowing adjacent modules to be directly abutted to form continuous long runs of seating. Fortis Wall-top seating offers multiple timber slat configurations to give the best visual match for the site.
Features and benefits:
- Available with or without back and/ or armrests and in two standard lengths.
- Bench only versions are also offered in a short 440 mm depth to suit a two-brick thick wall width.
- The addition of Fortis timber-topped seating platform on a wall, provides a compact and visually tidy seating solution on top of existing features in landscape schemes.
Installation:
- Platforms are fitted to the top of the wall at four points for two-person platforms and six points for four-person platforms, through slots in the platform subframe.
- Dedicated threaded wall anchors and connecting bolts supplied with the product.
General information
Color | Silver Brown Grey Other Guidance for specification option: Polyester powder coated to any RAL colour. |
Finish | Polished Satin Galvanized Smooth Guidance for specification option: Planed iroko hardwood timber finish. Powder-coated |
Material | Stainless steel Steel Timber |
Shape | Rectangle |
Length | 1340 mm 2540 mm |
Width | 440 mm 590 mm |
Warranty description | One year |
Uniclass | |
CAWS | Q50/220 Benches Q50/30 Street furniture |
Product range |
Specification data - Street and site benches
Length | 1.34 m. |
Base | Bolt-on frame.Guidance for specification option: Platform is fitted to the top of the wall at through slots in the platform subframe, with dedicated threaded wall anchors and connecting bolts supplied with the product. |
Material | Standard: Steel frame and iroko hardwood timber slats. |
Finish as delivered | Standard: Galvanized frame and smooth planed slats. |
Colours | RAL.Guidance for specification option: Polyester powder coated to any RAL colour. |
Frame | Stainless steel, grade 1.4301 (304), bright polished. Stainless steel, grade 1.4301 (304), satin polished. Stainless steel, grade 1.4401 (316), bright polished. Stainless steel, grade 1.4401 (316), satin polished. Steel, galvanized finish. Guidance for specification option: Standard. |
Material/ Finish | Iroko timber, smooth planed finish. Guidance for specification option: Standard,. Iroko timber, oiled finish. Iroko timber, UV protective finish. |
Seat slat size | Small. Guidance for specification option: 40 mm wide. Medium. Guidance for specification option: 65 mm wide. Large. Guidance for specification option: 140 mm wide. |
Backrest slat size | Not applicable. Guidance for specification option: Bench platforms. Small. Guidance for specification option: 40 mm wide. Medium. Guidance for specification option: 65 mm wide. Large. Guidance for specification option: 140 mm wide. |
Backrest height | Not applicable. Guidance for specification option: Bench platforms. High. Low. |
Installation | Not applicable. Guidance for specification option: Single platforms. Abutted. Guidance for specification option: Seating platforms can be installed directly next to each other, or immediately adjacent to any upstand such as a wall, but this will mean that timber slats can only be replaced by removing the whole platform off the wall. 100 mm gaps. Guidance for specification option: Installing platforms with gaps of approximately 100 mm between, or to any upstand such as a wall, will allow individual slats to be replaced without the need to remove the whole platform off the wall. |
Depth | 440 mm. 590 mm. |
Form | Two-person, short-depth, bench platform, no arms. |
Sustainability data
Country of product manufacture | United Kingdom |
