Application

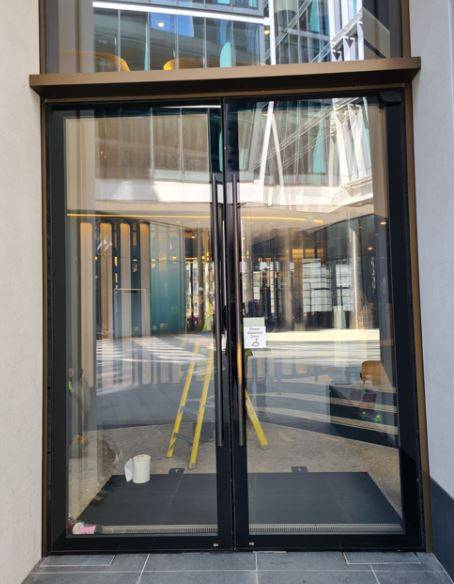

Framed swing doors, suitable for public buildings, both internally and externally.

Description

High performance automatic entrance system using swing door drive DTN 80.


Features and benefits:

  • Swing door drive DTN 80.
  • Universal applications.
  • Patented double-spring system for high closing force before closing position.
  • Increase freedom of movement and safety in public buildings.
  • Comfortable access is provided via radar motion sensors, push-buttons or an access control system.
  • A combination of multi-point lock and motor-driven shoot bolt lock is recommended for entrance doors in the facade, making accessibility, burglar protection and escape route safety a reality.
  • Can be used on all certified swing doors up to resistance class RC4.
  • Ensures barrier-free access on a daily basis.
  • DTN 80 swing-door drive satisfies the requirements of EN 179 and EN 1125.

General information

Color

Blue

Black

Grey

Clear

Material

Glass

Shape

Rectangle

Length

Bespoke

2100 mm

4600 mm

Width

Bespoke

63 mm

80 mm

Height

Bespoke

1000 mm

1600 mm

Warranty description

One year

Manufacturer guidance

Consult manufacturer for details.

Uniclass

Ss_25_30_20_25 Doorset systemsPrimary
Pr_30_36_59_15 Controlled door closers

CAWS

L20/480 Doorsets

L20/55 Doorsets

P21/410 Controlled door closers

P21/12 Controlled door closers

Specification data - Doorset systems

Doorset

-

Type

Framed swing doors.

Fasteners

-

Manufacturer guidance

Consult manufacturer for details and insert requirements.

Glazing

Clear heat strengthened glass laminate.

Hardware

-

Manufacturer guidance

Consult manufacturer for details and insert requirements.

System accessories

-

Manufacturer guidance

Consult manufacturer for details and insert requirements or omit.

Colour

Black, RAL 9001.

Black grey, RAL 7021.

Blue grey, RAL 7031.

Dimensions

-

Manufacturer guidance

Consult manufacturer for details and insert requirements.

Operation

Swing door drive DTN 80.

Guidance for specification option:

Consult manufacturer's literature for details.

Sustainability data

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom
