FS704 Fire Resistant Hybrid Sealant
Verified by manufacturer 6 days ago
Fire-resistant hybrid sealant, free from isocyanates, silicone and phthalates, designed to fire seal linear gaps on various substrates.
Application
For external and internal applications. Designed for sealing of vertical and horizontal linear joints between compartment walls and floors. Suitable for flexible walls and rigid walls and floors.
May be used for joints between the following substrates:
- Concrete – timber.
- Concrete – concrete.
- Steel – steel.
- Steel – concrete.
- Drywall – drywall.
- Drywall – concrete.
- Drywall – steel.
- Timber – timber.
Description
FS704 is a non-sagging fire resistant sealant with excellent processing properties. Based on hybrid polymers, FS704 is a paintable elastic sealant free of phthalates, isocyanates and silicone. In a reaction with humidity from the air, it forms a soft elastic sealant that shows good resistance to light, ageing and weathering.
Features and benefits:
- Up to 2 hours fire resistance – tested to EN 1366-4.
- Phthalate free, isocyanate free, silicone free.
- Up to 25% demonstratable movement in cold state – tested to ISO 11600.
- Creates a smoke seal.
- Acoustically capable up to 66 dB.
- Air Pressure tested up to 600 Pa.
- Can be painted if required.
General information
Color | Grey White Manufacturer guidanceCan be painted if required. |
Finish | Smooth |
Material | Sealant Guidance for specification option: Phthalate, isocyanate and silicone free. Polymer |
Shape | Formless |
Uniclass | |
CAWS | P12/390 Sealants P12/47 Sealants |
SKU Code | FS704 |
Specification data - Construction joint sealants
Classification data | |
Standard | To BS EN ISO 11600 and EN 15651-1. |
Third-party certification | CE and UKCA marked, EMICODE EC1 Plus certification, M1 emission class. |
Material | Hybrid polymer. |
Class | F-25LM. |
Colour | Manufacturer's standard. Manufacturer guidanceCan be painted if required. |
Fire performance | |
Fire resistance | To EN 1366-4, up to 120 minutes. |
Reaction to fire | To EN 13501, class E. |
FlowResistanceRange | To EN ISO 7390, ≤3 mm. |
Volume | Loss of ≤10 %, tested to EN ISO 10563. |
Durability | Pass rated, tested to EN ISO 8340, EN ISO 9047 and EN ISO 10590. |
TensileStrength | No failure according to ISO 11600 when tested to EN ISO 10590 and EN ISO 8340, ≤0.9 N/mm² when tested to EN ISO 8339. |
Air permeability | Airtight up to 600 Pa. |
Acoustical Performance | 66 dB. |
Movement | Up to 25% demonstratable movement in cold state, tested to ISO 11600. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | Germany |
Manufacturing plant location | |
Material | Sealant Guidance for specification option: Phthalate, isocyanate and silicone free. Polymer |
Literature
Literature type

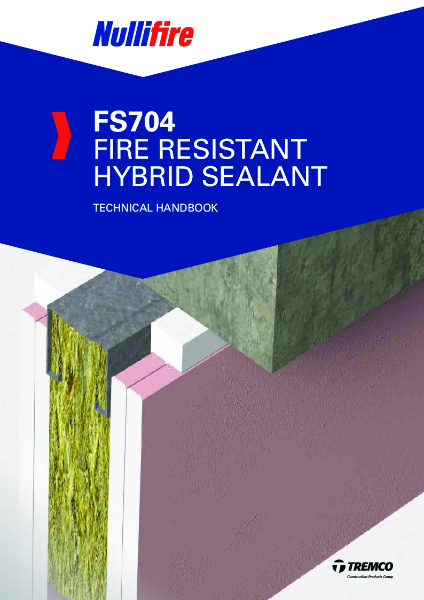

FS704 Fire Resistant Hybrid Sealant Technical Handbook

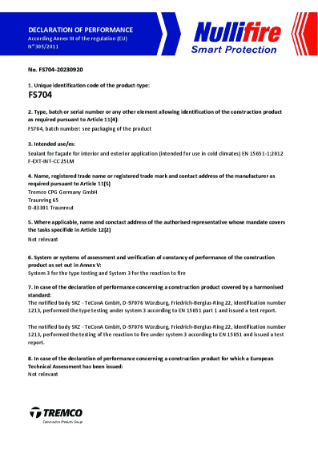

FS704 Fire Resistant Hybrid Sealant Declaration of Performance
