Futurion Flat Shower Trays (Quaryl®) UDQ0900FFL1V
Verified by manufacturer 8 months ago

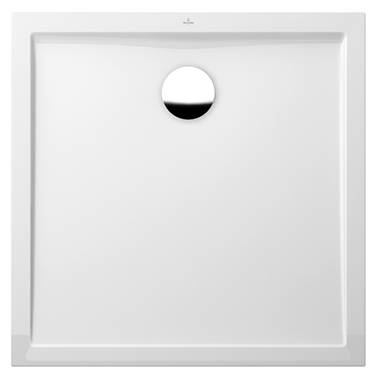

Square shower tray.
Application
- Suitable for surface mounting/ flush fitting.
- All shower trays are supplied without support/ base.
Description
Square shower tray.
Features and benefits:
- The installation height of the shower can be reduced to 105 mm if the Viega outlet fitting Art. no. 634 100 is used. Please note: This outlet fitting does not conform to EN 274.
- Waste diameter: 90 mm.
General information
Color | White |
Finish | Anti-slip Guidance for specification option: Class A. |
Material | Quaryl® |
Shape | Square |
Length | 900 mm |
Width | 900 mm |
Uniclass | |
CAWS | N13/40 Shower units N13/375 Shower units |
Specification data - Shower trays
Form | Square. |
Materials | |
Body | Quaryl®. |
Finish and colour | White Alpin. |
Size | 900 x 900 mm. |
Waste hole | 90 mm, off centre. |
Drainage capacity | 51 L/min. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 OBJ | - | 1 |
 Revit | - | 1 |
 IFC | - | 1 |
 ARCHICAD | - | 1 |
 SketchUp | - | 1 |
 3Ds Max | - | 1 |
