FXZA-A (2x2 Cassette) - VRV Indoor Unit

Verified by manufacturer 3 months ago

FXZA15A

Daikin Ltd Variant:

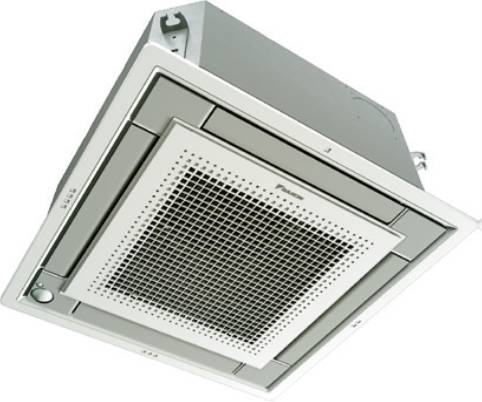

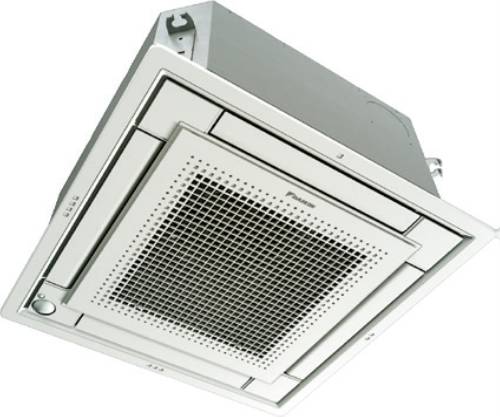

Fully flat cassette, four-way blow VRV indoor unit.

Jump to:
+44 (0)845 641 9000 Website

Application

For small or well-insulated rooms, such as small offices.

Description

The fully flat cassette fits flush within the ceiling modules and fully flat with the ceiling itself.


Features and benefits:

  • Available in matt crystal white or a silver and matt crystal white finish.
  • 15 class unit especially developed for small or well-insulated rooms, such as small offices.
  • The presence sensor (optional) adjusts the set point with standard 1°C if no one is detected in the room. It is possible to adjust the set point with 2, 3 or 4°C (optional). It also automatically directs air flow away from any person to avoid draught.
  • The floor sensor (optional) detects the average floor temperature and ensures even temperature distribution between ceiling and floor, reducing cold feet problems.
  • Individual louvre control: one louvre can be easily closed via the wired remote control (BRC1H52W/S/K) in case you would refurbish or rearrange your interior.
  • Low energy consumption thanks to specially developed small tube heat exchanger, DC fan motor and drain pump.
  • Fresh air intake for healthy living.
  • Standard drain pump with 850 mm lift.

General information

Color

White

Silver

Shape

Square

Length

575 mm

Width

575 mm

Height

260 mm

Uniclass

Pr_70_65_03_94 Variable refrigerant flow unitsPrimary

Specification data - Variable refrigerant flow units

Arrangement

Ceiling mounted cassette.

Output cooling

1.7 kW.

Output heating

1.9 kW.

Accessories

Not required.

BRC1H52W, Wired touch screen remote controller, White.

BRC1H52S, Wired touch screen remote controller, Silver.

BRC1H5K, Wired touch screen remote controller, Black.

UK.BRC1H/BRA/POL Metal clad Madoka remote controller - Polished Brass.

UK.BRC1H/CHR/POL Metal clad Madoka remote controller - Polished Chrome.

UK.BRC1H/CHR/BRU Metal clad Madoka remote controller - Brushed Chrome.

EKRS22 Lead to permit BYFQ60B3 to be employed with FXZA-A.

UK.KRCS01/BUTTON Discreet button type room mounted temperature sensor.

BRP069C51 WiFi adapter for VRV 5 Indoor units.

Air flow

0.117 m³/sec (nominal).

Power supply

Single phase, 50 Hz, 230 V.

Overall sound power level

49 dBA.

Panels

BYFQ60C4S Fully Flat Cassette Decoration Panel - Silver.

BYFQ60C4W Fully Flat Cassette Decoration Panel - White.

BYFQ60B3 Old style decoration panel - White RAL 9010.

Sustainability data

Recyclability

70%
