Gatic Kerbdrain
Verified by manufacturer 27 days ago
Heavy duty combined kerb and drainage system (CKD) that provides an efficient and safe method of draining highways, car parks and potentially any surface or structure with a kerb edge.
Application
Suitable for highways, car parks and potentially any surface or structure with a kerb edge.
Description

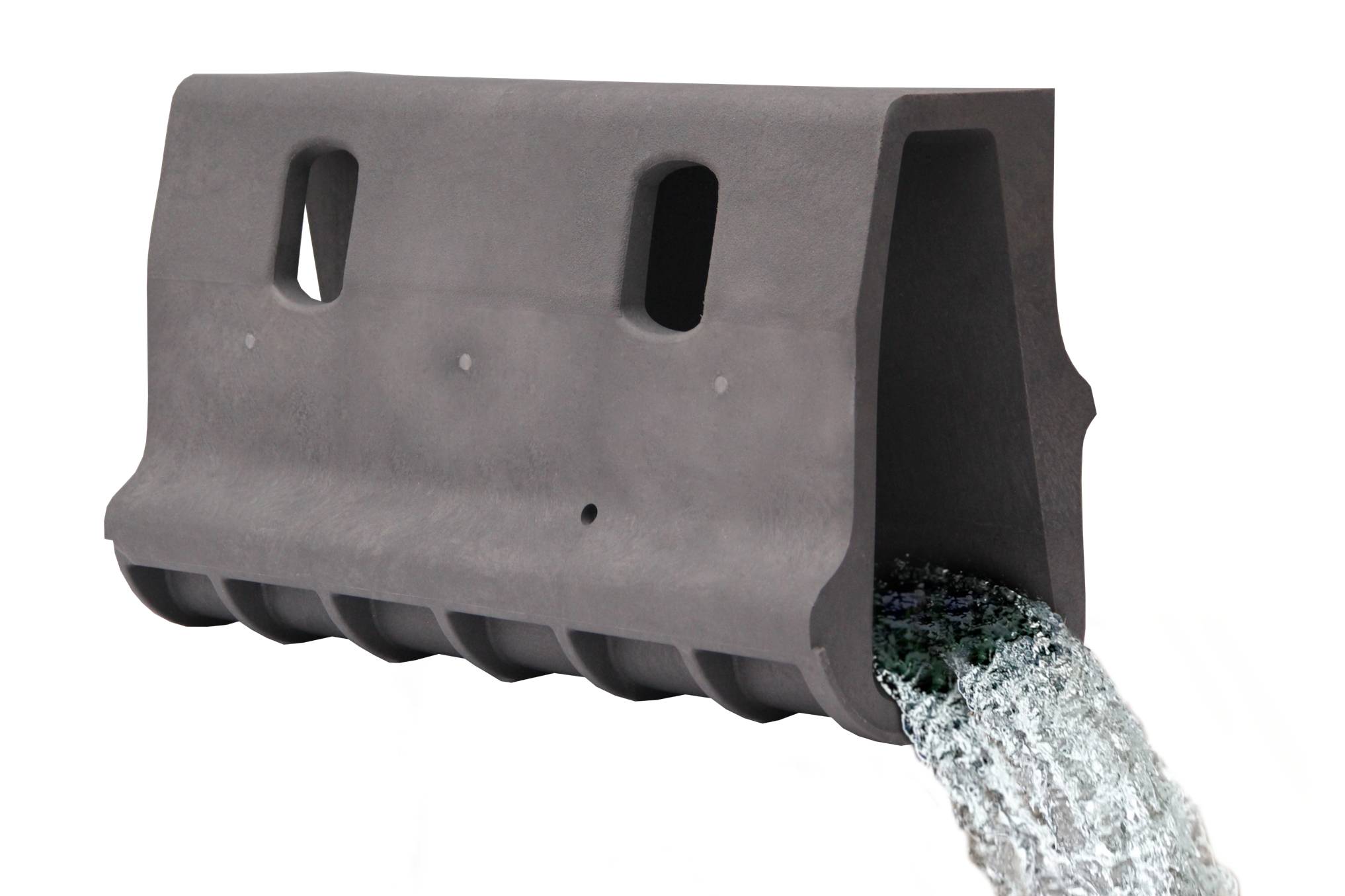

Gatic Kerbdrain is a heavy duty combined kerb and drainage system (CKD) that provides an efficient and safe method of draining highways, car parks and potentially any surface or structure with a kerb edge.
Combined kerb and drainage systems collect run-off continually and quickly which helps extend the life of a project and improve the conditions for users and their safety, particularly in Highways. Unlike the traditional kerb and gully method where flows compound on the surface, the collected run-off is contained and driven to outlet hidden within the channel body. As the kerb-lines are traditionally set at a low point, the levels on site can be simplified using one direction across-fall/camber to deliver surface water to the kerbside.
General information
Color | Grey Guidance for specification option: Concrete grey. |
Material | Polymer Guidance for specification option: Manufactured from recycled polymers. |
Shape | Other Guidance for specification option: Teardrop. |
Length | 500 mm |
Width | 215 mm |
Height | 305 mm |
Uniclass | |
CAWS | Q10/190 Carriageway kerb and drainage channel systems |
Product range |
Specification data - Combined drainage and kerb units
Standards | To BS EN 1433. |
Certification | CE certified.Manufacturer guidanceMeets requirements of Highways Agencies Interim Advice Note IAN117/08 Rev 2. |
Configuration | Half-battered. |
Load class (minimum) | D 400. |
Accessories | Not required.Gatic Kerbdrain Ductile Iron Rodding Access/Outlet Unit.Gatic Kerbdrain Sealant - Grey (600 mm).Gatic Kerbdrain Sealant Applicator.Gatic Kerbdrain Gully Top Cover & Base.Gatic Kerbdrain Gully Sump.Gatic Kerbdrain End Cap / Outlet.Gatic Kerbdrain Drop Kerb Inner (RH).Gatic Kerbdrain Drop Kerb Inner (LH).Gatic Kerbdrain Drop Kerb Outer (RH).Gatic Kerbdrain Drop Kerb Outer (LH).Gatic Kerbdrain Drainable Centre Stone.Gatic Kerbdrain Internal Angle.Gatic Kerbdrain External Angle.Gatic Kerbdrain Internal Radius 6/5mtr.Gatic Kerbdrain Internal Radius 10/7mtr.Gatic Kerbdrain Internal Radius 16/11mtr.Gatic Kerbdrain External Radius 6/5mtr.Gatic Kerbdrain External Radius 10/7mtr.Gatic Kerbdrain External Radius 16/11mtr. |
Sustainability data
Contains Red List materials | No |
Material | Polymer Guidance for specification option: Manufactured from recycled polymers. |
Recyclability | 100% |
Literature
Gatic Kerbdrain Brochure
