Geberit cover plate, surface-even, for concealed function box
Verified by manufacturer 4 days ago
Plastic surface-even cover plate for concealed function box.
Application
- For covering the service opening of Geberit washbasin taps with concealed function box.
- For covering the service opening of Geberit installation boxes for Gateway.
- For individual bathroom design.
- For extensive surface coverings.
- For covering thicknesses ≥18 mm.
- Suitable for tile structures of 4–20 mm.
Description
Plastic surface-even cover plate for concealed function box.
Features and benefits:
- Surface is provided and completed by customer.
- Surface-even installation.
- Cover plate not suitable for applying plaster.
- Not compatible with concealed trap, in Geberit Duofix frames.
General information
Color | White |
Finish | Other Guidance for specification option: Surface is provided and completed by customer. |
Material | Plastic Steel |
Shape | Square |
Length | 25 mm |

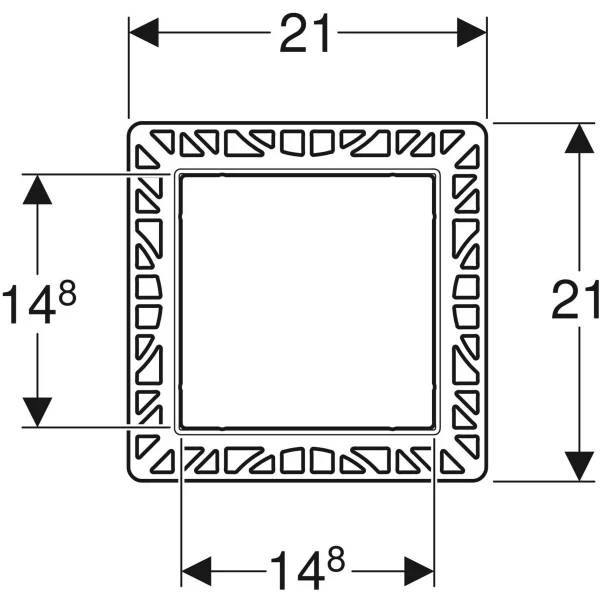

Width | 148 mm Manufacturer guidanceCover plate only. Frame is 210 x 210 mm. |
Height | 148 mm Manufacturer guidanceCover plate only. Frame is 210 x 210 mm. |
Uniclass | |
CAWS | K10/430 Access panels |
SKU Code | 116.421.00.1 |
Specification data - Access panels
Fire performance | |
Fire resistance | Manufacturer's standard. |
Reaction to fire classification | Manufacturer's standard. |
Position | Wall-mounted. |
Size | 148 x 148 mm. Guidance for specification option: 25 mm deep. Frame: 210 x 210 mm. |
Frame | Steel mounting frame. |
Panel | |
Material | Plastic. |
Integral finish | Guidance for specification option: Surface is provided and completed by customer; insert requirements. |
Operation | Manufacturer's standard. |
Integral accessories | Fastening material. |
ArticleNumber | 116.421.00.1. |
Accessories | Geberit protection cover for cover plate, surface even, for Not required. |
Sustainability data
Material | Plastic Steel |
