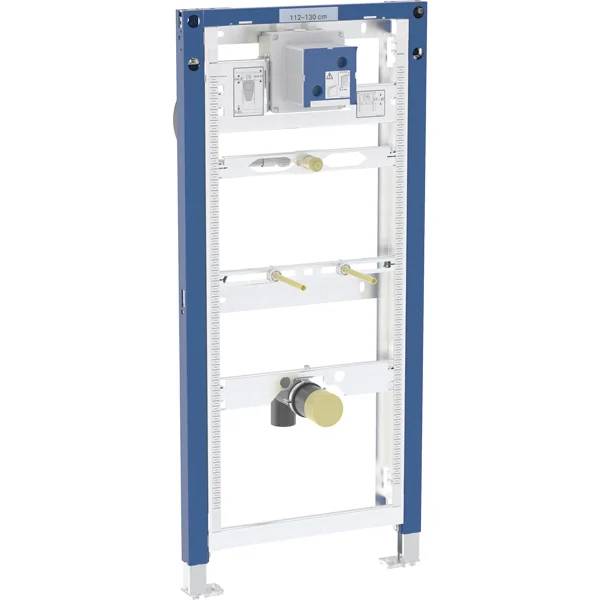

Geberit Duofix element for urinal, 112–130 cm, universal, for spray head - Duofix installation element

Geberit Duofix element for urinal, 112–130 cm, universal, for spray head.

Features and benefits:

• 2025 range.
• Statically self-supporting frame, protected against corrosion with powder coating.
• With pull-out plate for lateral fastening above the element on metal or wood profiles or on Geberit Duofix system studs.
• Alternative fastening point for wall anchors.
• Rotating foot plates, suitable for installation in U profiles UW 50 and UW 75.
• Foot plates that can be mounted in Geberit Duofix system rail without tools, without additional components.
• Galvanised non-slip leg supports protected against corrosion.
• Element height adjustable to urinal, 112–130 cm.
• Connection positions for Preda urinal prepared.
• Universal concealed housing for Geberit urinal flush controls.
• Terminal for electrical connection in concealed housing.
• Water supply connection on the right, on the concealed housing.
• Water supply connection compatible with MasterFix and MeplaFix.
• Elbow connector can be mounted without tools.
• Premounted stop valve with throttle.
• With built-in conduit pipe to rinse the pipeline.
• Protection box for service opening 10.5 x 10.5 cm can be cut to length without tools.
• Flush hose can be bent.
• Flush hose with guide to prevent standing water.
• Fastening for inlet Rp 1/2", adjustable in height and sideways.
• Fastening for connection bend, height-adjustable and sound-absorbing.
• Urinal fasteners M8, width- and height-adjustable.
• Crossbars with centring marks, adjustable without tools.
• Markings for connection positions of Preda and Selva urinals.
• Additional fastening possible for urinal with accessories.
