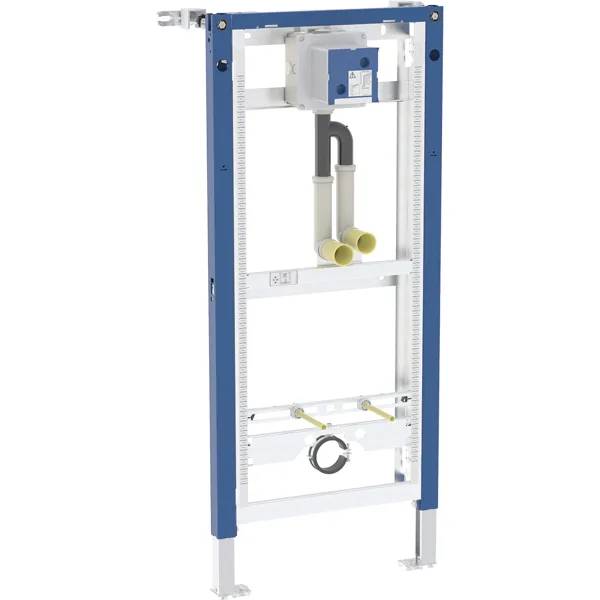

Geberit Duofix element for urinal, 130 cm, universal, with pipe interrupter - Duofix installation element
Verified by manufacturer 2 days ago
Geberit Duofix element for urinal, 130 cm, universal, with pipe interrupter.
Application
- Metal and wood frame walls.
- Geberit Duofix system walls.
- Installation in part- or room-height prewalls.
- Installation in room-height partition walls.
- Floor constructions 0–25 cm.
- Mounting urinals.
Description
Geberit Duofix element for urinal, 130 cm, universal, with pipe interrupter.
Features and benefits:
- 2025 range.
- Statically self-supporting frame, protected against corrosion with powder coating.
- With pull-out plate for lateral fastening above the element on metal or wood profiles, or on Geberit Duofix system studs.
- Alternative fastening point for wall anchors.
- Rotating foot plates, suitable for installation in U profiles UW 50 and UW 75.
- Foot plates that can be mounted in Geberit Duofix system rail without tools, without additional components.
- Galvanised non-slip leg supports protected against corrosion.
- Flush bend fitted, with pipe interrupter.
- Universal concealed housing for Geberit urinal flush controls.
- Terminal for electrical connection in concealed housing.
- Water supply connection on the top, on the concealed housing.
- Premounted stop valve with throttle.
- With built-in conduit pipe to rinse the pipeline.
- Protection box for service opening 10.5 x 10.5 cm can be cut to length without tools.
- Flush hose can be bent.
- Flush hose with guide to prevent standing water.
- Fastening for inlet ø32 mm, height-adjustable.
- Fastening for connection bend, height-adjustable and sound-absorbing.
- Urinal fasteners M8, width- and height-adjustable.
- Additional fastening possible for urinal with accessories.
- Can be refitted with accessories to fit urinals with spray head.
General information
Color | Blue Silver |
Finish | Powder-coated |
Material | Steel Plastic |
Shape | Rectangle |
Length | 75 mm Guidance for specification option: Depth. |
Width | 500 mm |
Height | 1300 mm |
Uniclass | |
CAWS | N13/66 Pre-plumbed frame system N13/500 Pre-plumbed frame system |
SKU Code | 111.622.00.2 |
Specification data - Pre-plumbed installation frames
Classification data | |
Form | Geberit Duofix element for urinal, 130 cm, universal, with pipe interrupter. |
Materials | Steel; plastics. |
Size | 500 x 75 mm. |
Accessories | Not required. Geberit Duofix fastening material for stud clearance 50–57.5 cm. Geberit Duofix set of foot extensions 20 cm length. Geberit Duofix set of foot fastener on rear wall. Geberit Duofix set of wall anchor extensions. Geberit Duofix set of wall anchors for single installation, corner construction. Geberit Duofix system fastening bracket. |
Flush volume | Manufacturer's standard. Guidance for specification option: Consult manufacturer for details. |
Sustainability data
Country of product manufacture | Germany |
Material | Steel Plastic |
