Geberit Duofix element for washbasin, 112–130 cm, wall-mounted tap, concealed - Duofix installation element
Verified by manufacturer 1 day ago

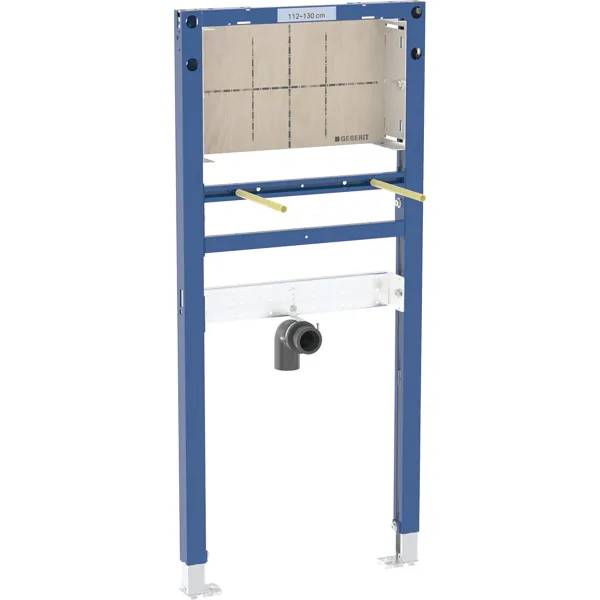

Geberit Duofix element for washbasin, 112–130 cm, wall-mounted tap, concealed.
Application
- For metal and wood frame walls.
- For Geberit Duofix system walls.
- For installation in part- or room-height prewalls.
- For installation in room-height partition walls.
- For floor constructions 0–25 cm.
- For installation of washbasins.
- For concealed taps.
Description
Geberit Duofix element for washbasin, 112–130 cm, wall-mounted tap, concealed.
Features and benefits:
- 2025 range.
- Statically self-supporting frame, protected against corrosion with powder coating.
- With pull-out plate for lateral fastening above the element on metal or wood profiles or on Geberit Duofix system studs.
- Alternative fastening point for wall anchors.
- Rotating foot plates, suitable for installation in U profiles UW 50 and UW 75.
- Foot plates that can be mounted in Geberit Duofix system rail without tools, without additional components.
- Galvanized non-slip leg supports protected against corrosion.
- Fastening distance for washbasin 5–38 cm.
- Threaded rods adjustable in depth with 18 or 28 cm fastening distance.
- Mounting plate adjustable in height and depth.
- Mounting plate made of veneered wood, waterproof bonded.
- Building material class B2 in accordance with DIN 4102-1, resp. class D-s2, d0 in accordance with EN 13501-3.
- Formaldehyde release class A in accordance with EN 1084, resp. class E1 according to EN 13936.
- Fastening for connection bend, height-adjustable and sound-absorbing.
General information
Color | Blue Silver |
Finish | Powder-coated |
Material | Steel Plastic |
Shape | Rectangle |
Length | 110 mm Guidance for specification option: Depth. |
Width | 500 mm |
Height | Manufacturer guidance1120–1300 mm (adjustable) |
Uniclass | |
CAWS | N13/66 Pre-plumbed frame system N13/500 Pre-plumbed frame system |
SKU Code | 111.493.00.2 |
Specification data - Pre-plumbed installation frames
Classification data | |
Form | Geberit Duofix element for washbasin, 112–130 cm, wall-mounted tap, concealed |
Materials | Steel; plastics. |
Size | 500 x 110 mm. |
Accessories | Not required. Geberit Duofix fastening for washbasins with fastening distance 38–58 cm. Geberit Duofix fastening material for stud clearance 50–57.5 cm. Geberit Duofix set of foot extensions, 20 cm length. Geberit Duofix set of foot fastener on rear wall. Geberit Duofix set of wall anchor extensions. Geberit Duofix set of wall anchors for single installation, corner construction. Geberit Duofix set of wall anchors for single installation. Geberit Duofix system fastening bracket. Geberit sound insulation set for washbasin. Reinforcing sheet for Geberit Duofix frame for washbasin. |
Sustainability data
Country of product manufacture | Germany |
Material | Steel Plastic |
