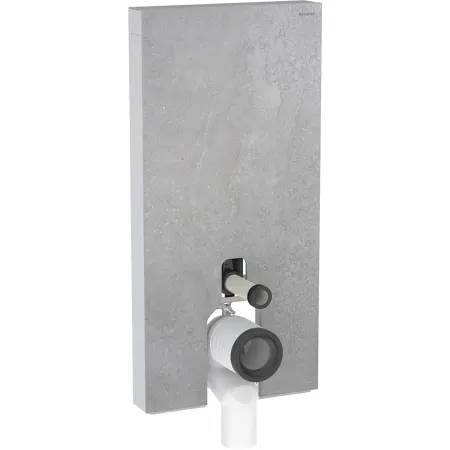

Geberit Monolith Plus sanitary module for floor-standing WC, 101 cm, front cladding made of stoneware
Verified by manufacturer 2 days ago
Geberit Monolith Plus sanitary module for floor-standing WC.
Application
- For floor inlets.
- For renovations, conversions and new buildings.
- For wall inlets with inlet height of 18 cm.
- For floor-standing WCs with P-bend and flush water inlet height 32–36 cm above the floor (EN 33).
- For replacing low-level exposed cisterns.
- For replacing floor-standing WCs with close-coupled exposed cistern.
- For connecting Geberit AquaClean Tuma WC complete solution, floor-standing WC.
- For connecting Geberit AquaClean WC enhancement solutions, with accessories.
- For mounting on finished floors.
- For installation in front of drywalls or solid walls.
Description
Geberit Monolith Plus sanitary module for floor-standing WC, 101 cm, front cladding made of stoneware.
Features and benefits:
- Dual flush.
- Soft-touch buttons for flush actuation.
- Settings can only be changed with the Geberit Home App.
- User detection range can be set.
- Odour extraction with ceramic honey comb filter can be activated.
- Odour extraction unit with run-on function.
- Ceramic honeycomb filter for odour neutralisation can be replaced without tools.
- Adjustable interval flush.
- With ComfortLight.
- Lighting mood infinitely adjustable from orientation light to daylight.
- Light colour continuously adjustable from warm white to cool white.
- DALI-compatible control.
- Operation with extra-low voltage, no mains voltage in cistern.
- Mains connection with flexible three-core sheathed cable.
- Compensation of dimensional tolerances possible.
- Cistern, fully insulated against condensation.
- Side cladding made of aluminium.
- Self-supporting.
- Water supply connection on the bottom.
- Water supply connection on the left/ right possible with accessories.
General information
Color | Black Other |
Finish | Chrome Natural Other |
Material | Metal Plastic Stone |
Shape | Rectangle |
Length | 106 mm |
Width | 480 mm |
Height | 1010 mm |
Uniclass | |
CAWS | N13/500 Pre-plumbed frame system N13/66 Pre-plumbed frame system |
SKU Code | 131.202.00.7, 131.202.JV.7 |
Specification data - Pre-plumbed installation frames
Classification data | |
Form | Support frames with cistern and connectors. |
Materials | 131.202.00.7 - Slate effect with black chrome aluminium side cladding. 131.202.JV.7 - Concrete effect with aluminium side cladding. |
Size | 1010 x 480 x 106 mm. Manufacturer guidanceHeight x width x depth. |
Accessories | Not required. Lateral water supply connection set for Geberit Monolith sanitary module for WC. Conversion set for Geberit AquaClean WC enhancement solutions. Geberit outlet mounting box. Interface module 12 V for Geberit AquaClean Mera/Sela. |
Pressure | 0.1–10 bar. Manufacturer guidanceFlow pressure. |
Operating temperature | 25°C (maximum). Manufacturer guidanceWater. |
Flush volume | 6 L. Guidance for specification option:
|
Protection | IPX4. |
Nominal voltage | 100–240 V a.c. |
Operating voltage | 12 V d.c. |
Frequency | 50–60 Hz. |
Power consumption | 15 W. Guidance for specification option: Power consumption standby maximum: 0.5 W. |
Colour | 2200–4000 K. |
Integral accessories | Water supply connection set with 2 angle stop valves, 1/2". Flush bend extension 160 mm. Sleeve made of EPDM, ø 44 / 55 mm. Connection bend made of PP, ø 90 mm. Adaptor socket made of PE-HD, ø 90 / 110 mm. Base cover. Fastening material for drywall. Fastening material. Female socket for mains connection. Power supply unit. |
Sustainability data
Material | Metal Plastic Stone |
