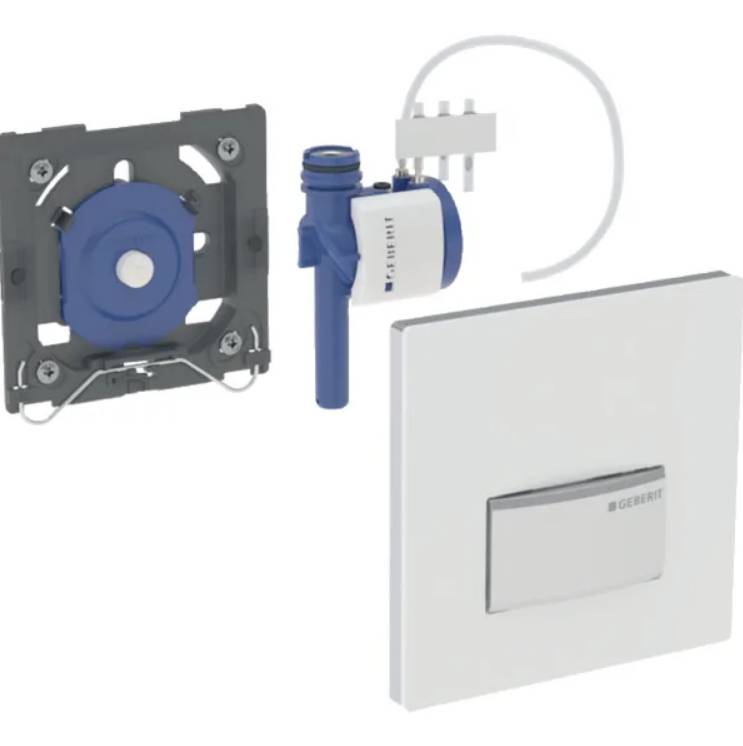

Geberit urinal flush control with pneumatic flush actuation, Type 50 flush plate, square
Verified by manufacturer 5 days ago
116.016.00.5 - Customized
116.016.00.5 - Customized
Geberit urinal flush control with pneumatic flush actuation, type 50 flush plate.
Application
- For manual flush actuation of urinals.
- For Geberit frames for urinal with front actuation.
- For installation in installation sets for Geberit urinal flush controls (from year of manufacture 2009).
Description
Geberit urinal flush control with pneumatic flush actuation, with type 50 flush plate, square.
Features and benefits:
- Flush plate with securing bar.
- Flush time setting with air nozzles (pneumatic).
- Low flush actuation force.
- Short stroke movement.
- Flush actuation when the actuator button is released.
- Flush volume can be reduced to 0.5 L per flush with regulating screw of installation set.
General information
Color | White Black Silver Grey |
Finish | Chrome Gloss Brushed |
Material | Zinc Plastic Brass Glass |
Shape | Square |
Length | 130 mm |
Width | 130 mm |
Height | 8 mm 10 mm 11 mm 12 mm |
Uniclass | |
CAWS | N13/15 Urinals and cisterns N13/315 Urinals and auto-flushing cisterns S90/690 Flush control devices |
SKU Code | 116.016.00.5, 116.016.11.5, 116.016.DW.5, 116.016.GH.5, 116.016.JK.5, 116.016.JL.5, 116.016.SD.5 |
Specification data - Flush control devices
Flush volume | 0.3 L/s (without flow limiter); 0.18 L/s (with flow limiter). |
Flush rate | Flush time, adjustment range 4 / 8 / 12 s. |
Materials | |
Body | Die-cast zinc. |
Finish and colour | Customized. Guidance for specification option: Consult manufacturer and insert requirements. |
Operation | Push-button. |
Controller | Surface-mounted. |
Sustainability data
Material | Zinc Plastic Brass Glass |
