Gemini Surf Architectural Perimeter Fencing

Name: Gemini Surf Architectural Perimeter Fencing
Brand: Zaun Limited
SKU: i9wd19amaAbKyrcTqYmQ3j

Verified by manufacturer 4 months ago

Zaun Limited

Boundary fence.

Jump to:

+44 (0)1902 796699 Website

Application

Civic and public sector.

Health and emergency services.

High security.

Industrial.

Residential and commercial.

Schools and education.

Transport and infrastructure.

Description

Gemini Surf features a curvaceous fence topping and is particularly suitable for areas that are either aesthetically sensitive or are on show to the public or customers. Based on the twin wire Duo system, it uses twin horizontal wires to sandwich the vertical wires creating a strong twin wire mesh. Anti-tamper fixings and optional ball finials combine to make this system both attractive and secure.

Gemini Surf is suitable for housing projects, schools and prestige projects where the fence needs to be a feature as well as a boundary. It can be supplied in heights of up to 6 m, which is measured at post height, so the panels may exceed that height at the centre of the panel.

Features and benefits:

Based on the Duo twin wire mesh system to provide high visibility, strength and rigidity.
Supplied with a surf style feature topping.
Aesthetically pleasing mesh system.
The Gemini range is suitable as a feature fence to enhance aesthetics.
Soft ornate fencing without harsh edges.
Supplied with anti-tamper fixings.
Available with optional ball finials.
Available either bolt down, in ground or on wall.

General information

Finish	Galvanized Powder coated
Material	Metal
Size	2430 x 2510 mm 2030 x 2510 mm 1830 x 2510 mm 1230 x 2510 mm

Uniclass	Ss_25_14_61_51 Metal mesh panel fencing systemsPrimary
CAWS	Q40/125 Open mesh steel panel general purpose fencing Q40/27 Open mesh steel panel general purpose fencing Q40/30 Proprietary fencing Q40/430 Proprietary fencing

Specification data - Metal mesh panel fencing systems

Standard	To BS1722, ISO 12944.
Posts	60 x 40 mm rectangular hollow section (RHS) posts. Guidance for specification option: Sizes dependent on height, spaced at 2525 mm centres. 80 x 40 mm rectangular hollow section (RHS) posts. Guidance for specification option: Sizes dependent on height, spaced at 2525 mm centres.
Panels	Duo6 mesh. Guidance for specification option: Comprising 200 x 50 mm mesh with single 6 mm wires, vertical wires are at 50 mm centres, dual horizontal wires at 200 mm centres.
System accessories	Not required. Pedestrian gates. Guidance for specification option: Single leaf, 1.2 m wide, or width to suit, consult manufacturer and insert requirements. Vehicular gates. Guidance for specification option: Double leaf, 3.0 m wide, or width to suit, consult manufacturer and insert requirements. Ball finials.

Height	1230 mm. 1830 mm. 2030 mm. 2430 mm.
Applied finishes	Galvanized and polyester powder coated.
Horizontal wire thickness	6 mm. 8 mm.
Fixing	Bolt down. In ground. Wall. Manufacturer guidance Anti tamper security fixings.
Gates	50 x 50 mm RHS frame with Zaun Duo8 mesh welded inside the frame, slide latch, rubber bump stop and two gate posts. Guidance for specification option: Vehicular access also supplied with drop bolts.

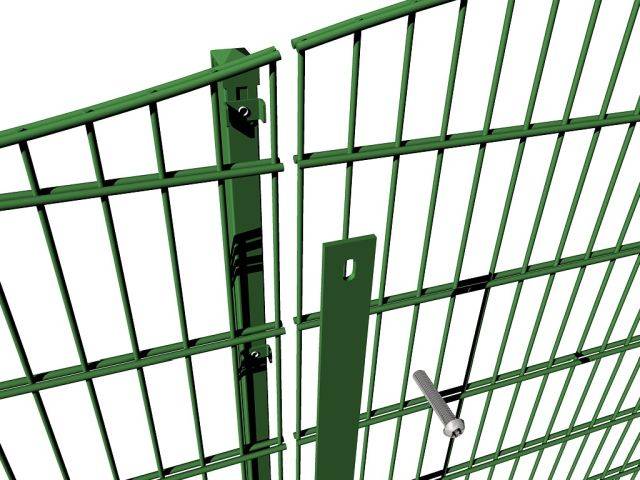

Panel fixings	Panels fixed to posts with full height 40 x 5 mm clamp bar with bolt fixings at 400 mm centres. Guidance for specification option: The full height clamp bars create a flush safe finish with the mesh ends behind the clamp bar.
WireDiameter	5 mm / 2 x 6 mm. Guidance for specification option: Vertical x Horizontal. 6 mm / 2 x 8 mm. Guidance for specification option: Vertical x Horizontal.
Width	2510 mm.
