Generix Lite - Natural Stone Rainscreen Facade System
Verified by manufacturer over a year ago
Basalt
Basalt
Natural stone panel with a 90 degree horizontal kerf.
Application
- Secured to Generix Lite Vertical Rail secondary support system.
- External facade installations.
- Suitable for both stack bond and stretcher bond facades.
Description
Generix Lite is a time efficient and intuitive to install system, allowing for rapid build programmes to be maintained.
Adopting a value engineered cladding solution Generix Lite uses a 20 - 30 mm natural stone panel with a 90 degree horizontal kerf. The panels are secured to the Generix Lite Vertical Rail using the patented one piece four way stainless steel clip attached by Tekscrews. Neoprene strip and Generix Lite adhesive facilitate wind anti-rattle and assists impact resistance as proven by successful tests carried out to latest CWCT standards.
General information
Color | Beige Black Cream Grey |
Finish | Honed Guidance for specification option: Limestones. Polished Guidance for specification option: Granites. Sandblasted Guidance for specification option: Limestone only. Flamed Guidance for specification option: Granites only. Brushed Guidance for specification option: Flamed and brushed - black sandstone or jura limestone only. |
Material | Stone |
Shape | Rectangle |
Length | 1200 mm 900 mm |
Width | 600 mm 450 mm |
Uniclass | |
CAWS | H92/120 Rainscreen cladding |
Specification data - Drained and back-ventilated rainscreen cladding systems
Cladding panels | |
Material | Natural stone panels. |
Panel joints | Open, 6 mm width horizontal and vertical.Guidance for specification option: Standard. Closed (pointed).Guidance for specification option: A suitable non-leaching/ migratory sealant is required to avoid the staining of the stone. |
System accessories | Not required.Neoprene strip.Generix Lite Adhesive. |
Panel size | Manufacturer guidanceVariable coursing heights and panel lengths up to a maximum based on material specified. Consult manufacturer and insert requirements or refer to a drawing. |
Colour | Basaltite. |
Finish | Manufacturer guidanceConsult manufacturer and insert requirements. |
Orientation | Horizontal. Vertical. |
Layout | Stack bond. Stretcher bond. |
Fixing | Mechanical kerf fixing. Guidance for specification option: In landscape or portrait. Generix Lite stainless steel kerf clips. |
Colour/ Finish | Mill finish. Guidance for specification option: Standard. Polyester powder coated black (RAL 9005). |
Literature
Generix Product Brochure 2022
Generix-Lite System 3D
Case studies

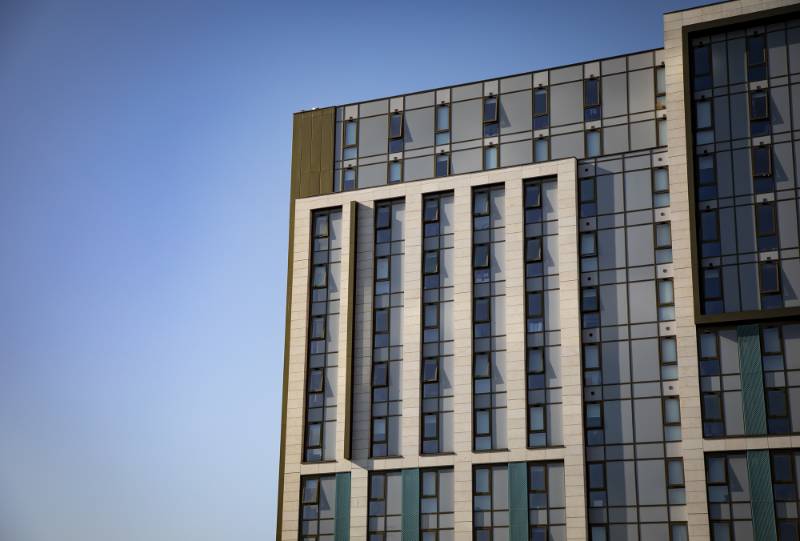

Byrom Point, Liverpool
Cathedral Street, Glasgow
Easterbush, Edinburgh
GATEWAY, FINCHLEY - LONDON
Northampton Museum and Art Gallery
One New Bailey, Manchester

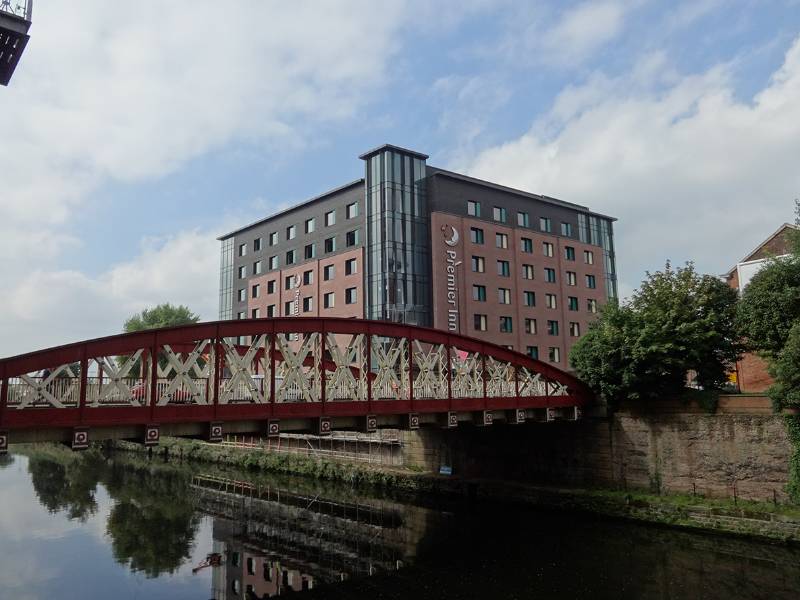

Premier Inn, Salford
St George's Gardens
