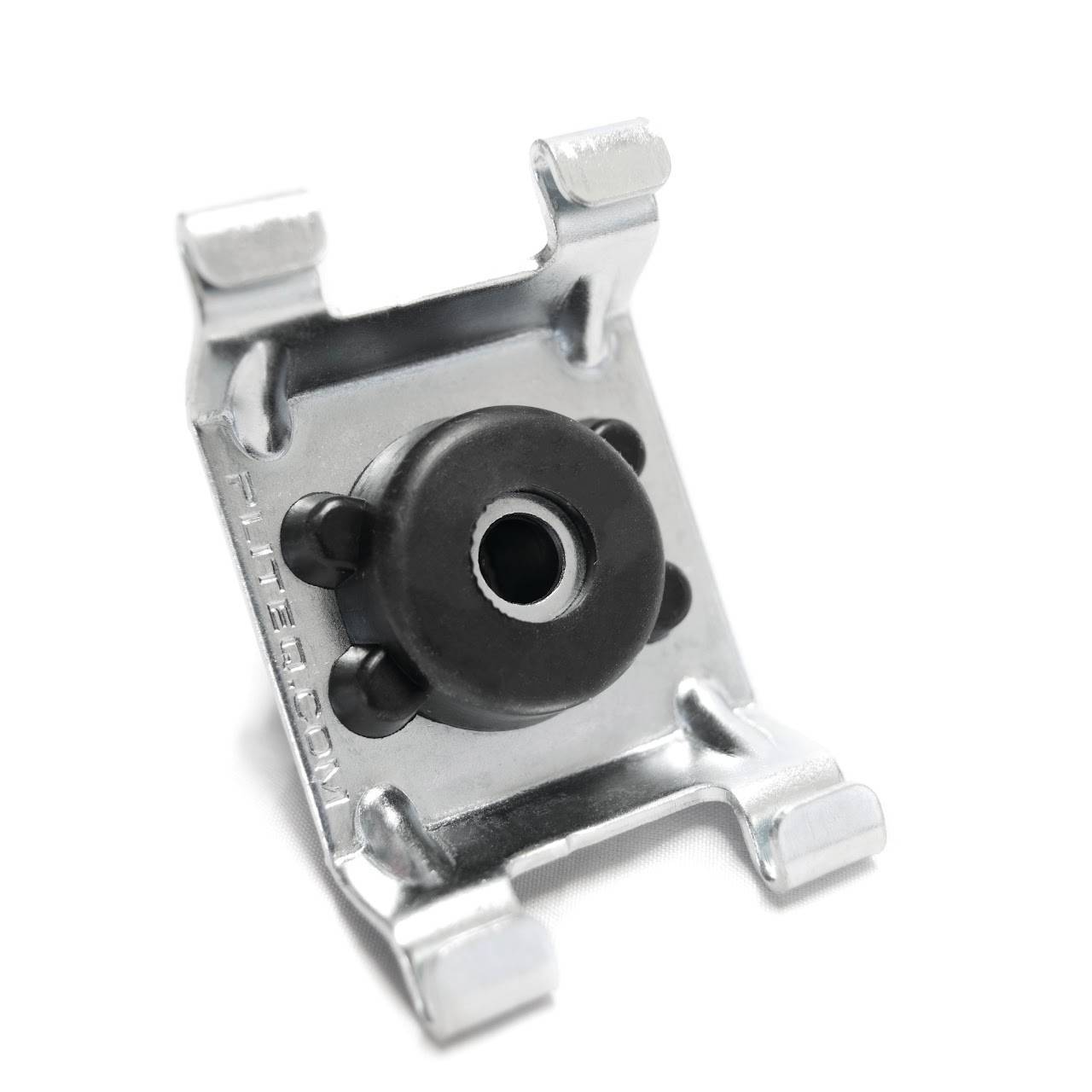

GenieClip RST - Resilient Sound Isolation Clip

Name: GenieClip RST - Resilient Sound Isolation Clip
Brand: Pliteq
SKU: hKySqYgrBeh1dRTyBF1dWr

Verified by manufacturer 4 months ago

Pliteq

Third party certifications:

ISO 9001 Quality Management
Certificate type

Resilient sound isolation clip for use when superior sound control is required.

Jump to:

+44 203 9846444 Website

Application

Resilient sound isolation clip installed with acoustical sealant and drywall furring channels (GenieClip THFC) for support of plasterboard for noise control (de-coupling) in walls and ceilings. Suitable for steel frame, timber frame, CLT and concrete structures.

Description

Unibody moulded rubber and steel part used when superior sound control is required in multifamily housing, high-rise residential, or commercial buildings.

Features and benefits:

Significantly improves low and high frequency sound control performance.
Substantially reduces impact noise in floor-ceiling assemblies.
Allows for thinner and even no resilient mat used in certain floor-ceiling assemblies.
Suitable for new-builds and retrofit.
Qualifies for LEED® points.
High fire resistance due to integrated washer
Substantially reduces costs and associated problems in timber frame.
No short-circuiting as is often the case with resilient channel.
Allows to slim down twin stud party walls to single stud party walls.

General information

Color	Silver Black
Material	Rubber Steel
Shape	Other
Length	25 mm
Width	46 mm Guidance for specification option: Including GenieClip THFC (Furring Channel)
Height	64 mm
Warranty description	Lifetime Guidance for specification option: Pliteq Inc. is a corporation duly organized and validly existing under the laws of the province of Ontario. Pliteq offers a limited lifetime warranty on the GenieClip® brands of Impact Sound Insulation products against defects in material and workmanship and GenieClip® shall meet all published specifications and shall perform effectively. Pliteq warranties that during the warranty period GenieClip® shall not harden, become brittle, chip, crack, tear, or exhibit any signs of excessive deterioration except for normal wear and tear. All other warranties, including implied warranties for a particular purpose, are expressly excluded. The sole remedy against the seller will be the replacement or repair of the defective goods, or at seller's option, credit may be issued not exceeding the selling price of the defective good. Manufacturer guidance The recommendations for applications and installation are based on our extensive experience and on current technological practice. Our liability and responsibility in the event of damages is limited to the extent defined in our General Terms and Conditions of Business and is not in any way increased by the above recommendations or by advice given by our sales representatives or applications engineering staff.

Uniclass	Pr_80_77_94_42 Isolation hangersPrimary Pr_20_29_14_87 Suspended ceiling clips
CAWS	K10/485 Suspended ceiling grids K10/215 Suspended ceiling system K10/125 Metal stud partition system K10/401 Gypsum plasterboard K10/415 Gypsum plasterboard K10/115 Metal stud partition system K40/105 Suspended ceiling system K10/30 Metal stud K40/20 Board-suspended ceiling systems K40/135 Board-suspended ceiling system

Specification data - Isolation hangers

Load	48 kg/m². Guidance for specification option: Typical recommendation three clips per m², resulting in 48 kg/m² design load (16 kg per each GenieClip RST).

Dimensions	41 x 64 x 25 mm. Manufacturer guidance W x H x D.
Projection	46 mm. Guidance for specification option: Incl. GenieClip THFC.
Clip	0.045 kg. Manufacturer guidance Weight.
TensileStrength	11.2 MPa. Guidance for specification option: Minimum. Manufacturer guidance ASTM D412, Die C.
Elongation at break	454%. Guidance for specification option: Minimum. Manufacturer guidance ASTM D573.
Hardness	37 durometer. Manufacturer guidance ASTM D2240.
Dynamic stiffness	11.3 N/mm. Guidance for specification option: Dynamic-Static Stiffness Ratio (ASTM D5992, D4473, D4065): 1.19. Manufacturer guidance ASTM D5992, D4473, D4065.
Low temperature stability	-40°C.
Upper temperature stability	+115°C.
