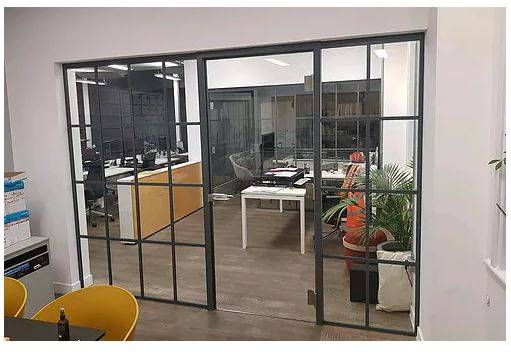

Q09-013 Quartz Single Glazed Door Frame
Q09-013 Quartz Single Glazed Door Frame
Single or double glazed door frames, or alternatively available as a glass leaf only.
Application
Open-plan commercial offices and workplace environments.
Description
Apton offer a wide choice of options for their glass door leafs.
Features and benefits:
- Doors can be supplied in either 10 mm or 12 mm glass, with hinges, which are face fixed to either our single or double glazed door frames, or alternatively, as a glass leaf only, no door frame, utilising a top and bottom patch fitting with pivot bar and floor spring.
- All Apton glass doors can be supplied with a vast range of ironmongery options and finishes as required.
General information
Color | Clear Silver Other |
Finish | Glazed Anodized Satin Laminated Powder-coated |
Material | Glass Aluminium |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Five year |
Uniclass | |
CAWS | L20/460 Frameless glass doors |
Specification data - Frameless glass door leaves
Classification data | |
Format | Single leaf, single action. |
Thickness | 10 mm. 12 mm. |
Door leaf size | Guidance for specification option: Available height up to 3000 mm; insert requirements or drawing reference number. |
Performance | |
Strength and durability | To BS5234, BS6180 and BS6399. Guidance for specification option: Structural stability to BS5234, BS6180, BS6399. |
Leaf | |
Material | Toughened/ laminated glass. Switch glass. Guidance for specification option: Consult manufacturer for details. |
Manifestation | Not required. Required. Guidance for specification option: Insert requirements; contact manufacturer for details on optional manifestations and graphics. |
Hardware | |
Door rails and patch fittings | |
Type | Hinges. |
Material and finish | Polyester powder-coated aluminium. Guidance for specification option: Insert requirements; contact manufacturer for more details. Satin anodized aluminium. Anodized aluminium. Guidance for specification option: Inquire with manufacturer for special anodized finish options. |
Door leaf glazing | Single. |
Hardware | Guidance for specification option: A wide range of hardware options are available. Insert requirements; consult with manufacturer for details. |
Acoustics | Up to 29 dB (Rw). Guidance for specification option:
|
Configuration | As schedule. As drawing. Guidance for specification option: Insert drawing reference number. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 90 % |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
