Glass Raised Access Floor Panel
Verified by manufacturer 1 day ago
Framed glass vision panel module for raised access floor systems, allowing safe inspection and viewing without lifting panels. Certified to BS EN 12825:2001.
Application
The Indigo Glass Panel is designed for specialist applications where both visibility and accessibility are required. By integrating framed glass modules into a raised access floor system, specifiers can provide inspection points, feature panels, or illuminated walkways without compromising system performance.
Typical Applications
- Office spaces – for feature panels or visible service areas.
- Data centres – inspection points for underfloor cabling and airflow systems.
- Retail environments – transparent floor sections for design and customer engagement.
- Dance floors – incorporating illuminated underfloor lighting for dramatic visual effect.
- Museums & galleries – creating glass panels for architectural design or exhibits requiring visibility below floor level.
This versatility makes the Indigo Glass Panel a unique functional and aesthetic solution, offering safety, performance, and design flexibility.
Description

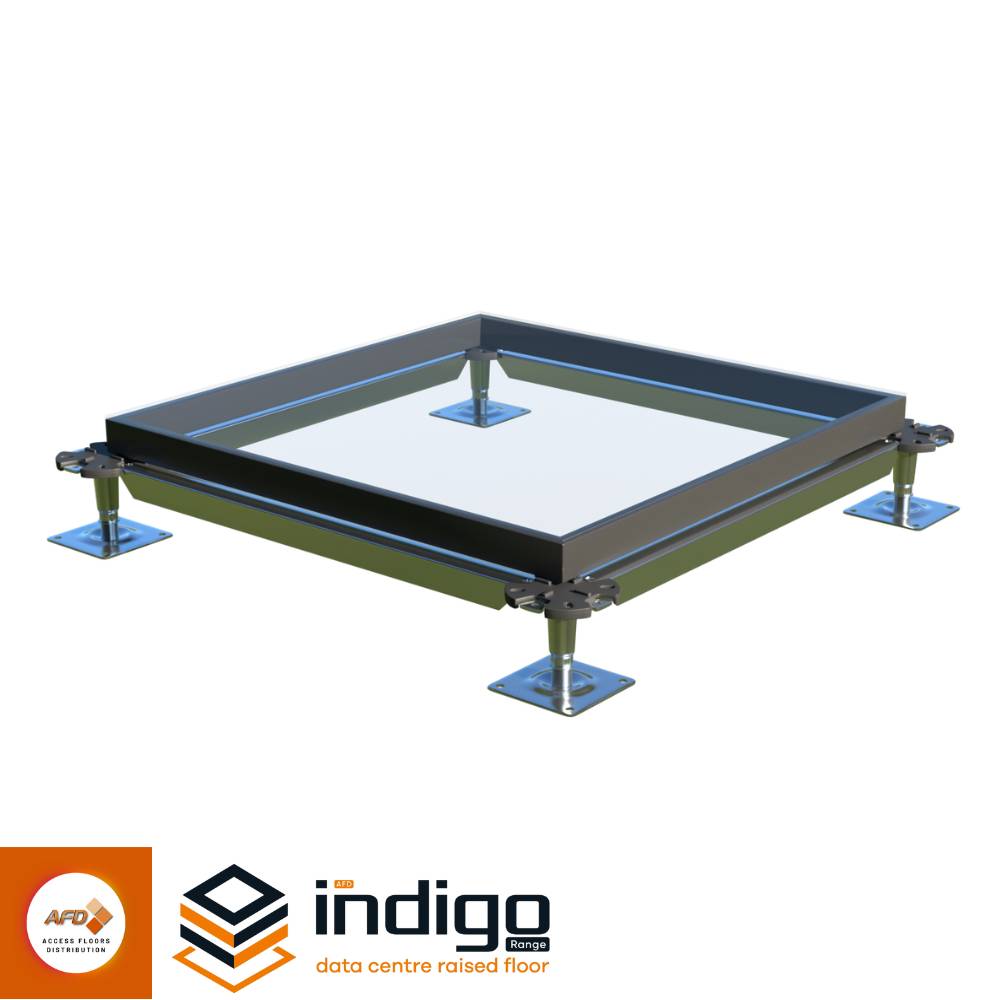

The Indigo Glass Panel is a framed glass vision module designed for integration into raised access floor systems. It provides a secure and practical solution for areas where visibility of the underfloor void is required, eliminating the need to lift panels for inspection.
Construction & Design
- Glass size: 598 × 598 × 32 mm, framed for strength and stability.
- Manufactured with a 30 mm thick glass element, providing dimensional stability and fire safety.
- Compatible with most raised access floor systems, making it a flexible solution for both new build and retrofit projects.
- Available in slip-resistant finishes to enhance safety in public or high-traffic environments.
- Optional underfloor lighting system can be incorporated, creating illuminated inspection points or design features.
Performance & Testing
- Independently tested and certified to BS EN 12825:2001.
- Load ratings:
- Class 6A3 (with heavy-grade stringer): Working load 4 kN, Ultimate load >13 kN.
- Class 5A3 (without stringer): Working load 3.3 kN, Ultimate load 13 kN.
- Fire resistance: Class 1 Spread of Flame.
- Slip resistance: Dry 0.81 / 0.18.
- Glass colour rendition: +95 (EN 410) for clarity.
- Thermal performance: U-value 5.2 W/m²K.
- Panel weight: approx. 28 kg.
Features & Benefits
- High fire resistance for compliance and safety.
- Excellent dimensional stability under load.
- Slip-resistant options available for safe integration into public spaces.
- Underfloor lighting compatibility for inspection or architectural design features.
- Fully compatible with most standard raised access floor systems.
General information
Color | Clear |
Finish | Anti-slip |
Material | Glass |
Shape | Square |
Length | 598 mm |
Width | 598 mm |
Height | 32 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | K41/315 Floor panels K41/315 Floor panels |
Specification data - Raised access floor panels
Classification data | |
Fire performance | |
Fire resistance | Spread of flame, Class 1. |
Core | Glass. |
Panel size | 598 x 598 x 32 mm. |
Weight (maximum) | 28 kg. |
U-value | 5.2 W/m²K. |
Load | Working load: 3.3 kN; Ultimate load: 13 kN. Guidance for specification option: Class 5A3 (without stringer). |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Glass |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 40 % |
Expected Life | Lifetime |
Literature
Indigo Glass Panel Data Sheet
