Grassforce Rubber Tile - Rubber Tile

Verified by manufacturer 1 month ago

Castle Composites Third party certifications:
  • ISO 9001 Quality Management

    Certificate type

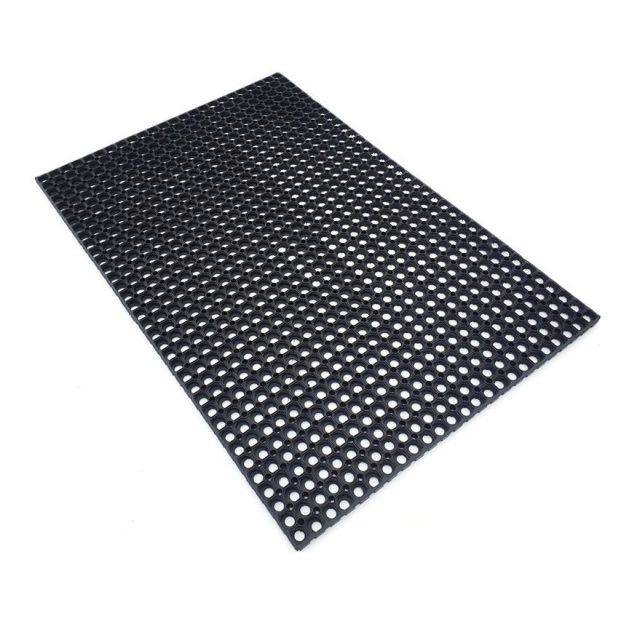

Recycled rubber reinforcement and grass mat.

Jump to:
BOS
+44 (0) 1555 870 003 Website

Application

Suitable for a range of applications, including play areas, golf courses, ice rinks, ski slopes, access walkways and pathways. Suitable for both flat and sloped landscapes.

Description

Recycled rubber reinforcement and grass mat.

Recommended to be fixed with four pegs per mat.

Mats can also be connected using black cable tiles if required - consult manufacturer for details.


Features and benefits:

  • Environmentally friendly.
  • Helps to maintain grass growth in areas of frequent foot traffic.
  • Absorbs shock and noise.
  • The anti-slip cellular structure is durable and comfortable underfoot.
  • Bonds firmly to the ground.
  • Provides a high level of drainage and erosion protection.
  • Quick, easy installation, with no special tools required.
  • Grass can be cut as usual; the mat does not need to be removed beforehand.
  • Available in two colour options.

General information

Color

Black

Green

Finish

Anti-slip

Material

Rubber

Shape

Rectangle

Length

1500 mm

Width

1000 mm

Height

23 mm

Warranty description

Five year

Uniclass

Pr_35_57_71_74 Rubber mats and sheetsPrimary

CAWS

Q25/180 Plastics grass reinforcing paving system

Product range

Gravel Grid
Rubber Tiles
Artificial Grass

Specification data - Rubber mats and sheets

Properties

-

Depth

23 mm.

Upper layer

-

Material

Recycled rubber.

Texture

Cellular.

Colour

Black.

Green.

Backing layer

-

Material

Recycled rubber.

Texture

Cellular.

Colour

Black.

Performance

-

Slip potential

-

Slip resistance value (SRV) (minimum)/ Pendulum test value (PTV) (minimum)

Anti-slip.

Other requirements

Tensile strength, 3.0 MPa.

Accessories

Not required.

GrassForce pegs.

Dimensions

1500 x 1000 mm.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

100

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Third party certifications

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001 Certification

Literature

Product Brochure

Product Brochure
