Groove Textured Tactile Guiding Strip

Name: Groove Textured Tactile Guiding Strip
Brand: Studmarc
SKU: iFPHyPWRAM2iFcSumHzXv5

Verified by manufacturer 16 hours ago

Aluminium

The groove-textured guiding strip is compliant for use in guiding the visually impaired in the public realm. Available in several metals and customizable with bespoke sizing.

Jump to:

BOS

+44(0)1686 807 450 Website

Application

Suitable for use in public or private applications on finished surfaces. The size of the strip is 1:1 with the corduroy bars on corduroy paving and can be used as an alternative.

Description

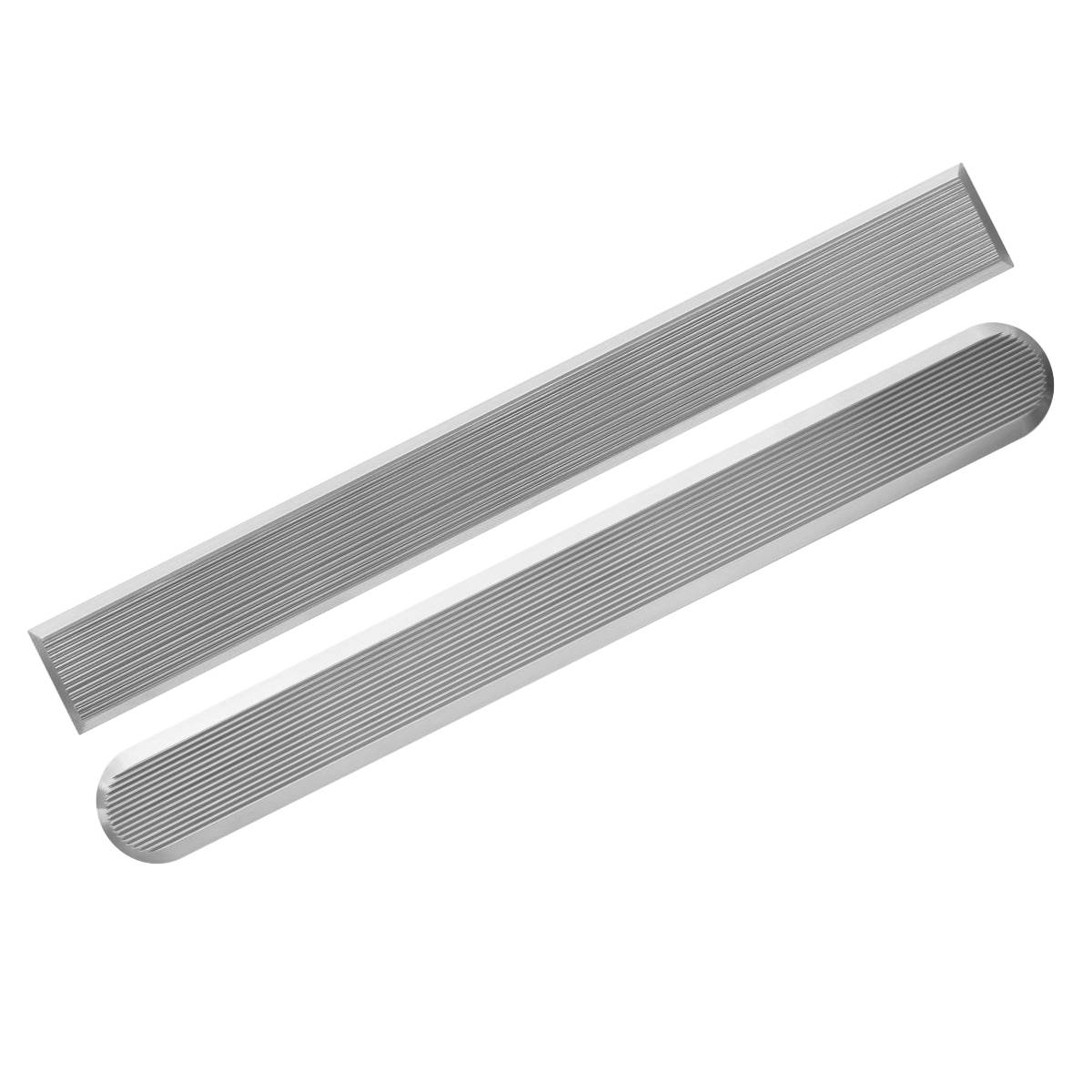

This grooved textured tactile guiding stud is manufactured from various materials including steel, aluminium, bronze, and brass, and is finished with groove-shaped protrusions on the surface.

At 400 mm in length, 20 mm in width and 6 mm in height, this guiding strip is in line with DETR guidelines, meaning they are suitable for use in guiding the visually impaired in public and private settings.

The tactile guiding strip features bevelled edges, leading up to a unique patterned surface that optimizes grip. The shape of the strip provides ample tactile feedback while remaining unobtrusive to pedestrians.

Alternate sizing is available with the bespoke product service.

Tactile studs with matching patterns are available.

Material options:

Aluminium.
1.4404 (316L) Stainless steel.
Bronze.
1.4307 (304L) Stainless steel.
Brass.

Fixing pin options:

Pressed pin.
Welded pin (for stainless steel strips only).
Self-adhesive.
Screw hole.
No pin.

Finishing options:

Burnt.
Bright polish.
Sandblasted.

Bespoke sizing guide:

Strip lengths: 200–500 mm.
Strip widths: 15–25 mm.
Strip heights: 3–6 mm.
Fixing pin lengths: 12–80 mm.

Features and benefits:

DETR compliant.
Multiple installation options.

General information

Color	Silver Bronze Gold
Finish	Anti-skid Anti-slip Grooved Natural Satin
Material	Stainless steel Brass Bronze Aluminium
Shape	Oval
Length	400 mm Guidance for specification option: 400mm Bespoke
Width	20 mm Guidance for specification option: 20mm Bespoke
Height	6 mm Bespoke
Warranty description	Two year

Uniclass	Pr_35_90_60_87 Tactile paving studsPrimary
CAWS	Q25/320 Tactile flags and slabs Q10/415 Demarcation units

Specification data - Tactile paving studs

Material	Aluminium.
Profile	Grooved.
Size	400 x 20 x 6 mm. Guidance for specification option: As standard. Bespoke. Guidance for specification option: Available sizes: Length: 200–500 mm. Width: 15–25 mm. Height: 3–6 mm. Fixing pin lengths: 12–80 mm.

Fixing	Pressed pin. Self adhesive. Guidance for specification option: Recommended installation: Prep area where stud is to be situated by using a grease and dirt remover, e.g. white spirits. Then let dry thoroughly. Once area is dried, peel backing to stud off and press down firmly. Highly recommended that the self-adhesive studs are only used on tiled floors. Screw hole. No pin.
Colour/ Finish	Bright polish. Guidance for specification option: As standard. Burnt. Sandblasted.

Sustainability data

Contains Red List materials	No
Country of material origin	Europe
Country of product manufacture	Europe
Recyclability	Should the need to recycle the studs arise, all material options can be melted down and reused again
