Name: GypWall Twin Frame Braced - L216001 (EN)
Brand: British Gypsum
SKU: m2BXG7aXB3iuEQMT9w8tt2

Verified by manufacturer 7 months ago

Finish

Manufacturer guidance

To achieve the specified performances, the system should be finished using either one of our Thistle or ThistlePro plasters, or Gyproc jointing products. See the product range guides on the British Gypsum website for more information.

Material

Gypsum

Metal

Plasterboard

Steel

Glass mineral wool

Width

200 mm

Height

4000 mm

Uniclass

Ss_25_10_30_35 Gypsum board partition systemsPrimary

CAWS

K10/125 Metal stud partition system

Framing

Base channel: Gypframe 50 FEC 50 Folded Edge Standard Floor & Ceiling Channel.
Head channel: Gypframe 50 FEC 50 Folded Edge Standard Floor & Ceiling Channel.
Stud: Gypframe 48 S 50 'C' Stud.
Abutments and openings: Gypframe 48 S 50 'C' Stud.
Bracing: Gypframe 99 FC 50 Fixing Channel.

Insulation

Insulation, Layer 1: 25mm Isover Acoustic Partition Roll (APR 1200).

Linings

Board side 1, Layer 1: Gyproc Habito 12.5mm.
Board side 1, Layer 2: Gyproc SoundBloc 12.5mm.
Board side 2, Layer 1: Gyproc Habito 12.5mm.
Board side 2, Layer 2: Gyproc SoundBloc 12.5mm.

Fasteners

Screws side 1, Layer 1: British Gypsum High Performance Screws 25mm.
Screws side 1, Layer 2: British Gypsum Drywall Screws 35mm.
Screws side 2, Layer 1: British Gypsum High Performance Screws 25mm.
Screws side 2, Layer 2: British Gypsum Drywall Screws 35mm.
Bracing fixing: British Gypsum Wafer Head Drywall Screws 13mm.

Joint treatment

Fixing strap: Gypframe GFS1 Fixing Strap.

Finish

To achieve the specified performances, the system should be finished using either one of our Thistle or ThistlePro plasters, or Gyproc jointing products. See the product range guides on the British Gypsum website for more information.

System accessories

Sealant: Gyproc Sealant.

Execution

Please review details on the British Gypsum website at: https://www.british-gypsum.com/Specification/White-Book-Specification-Selector/internal-partitions-walls/GypWall-Twin-Frame-Braced/L216001-EN#details

Fire resistance

BS EN 1364-1, 90 / 90 Integrity / Insulation

Sound insulation

BS EN ISO 10140-2, 62 Rw dB / 53 Rw + Ctr dB

Strength grade

BS 5234-2, Severe duty (SD)

Partition height

4000mm

Partition thickness

200mm

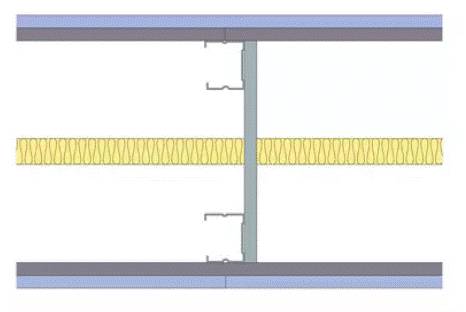

GypWall Twin Frame Braced - L216001 (EN)
