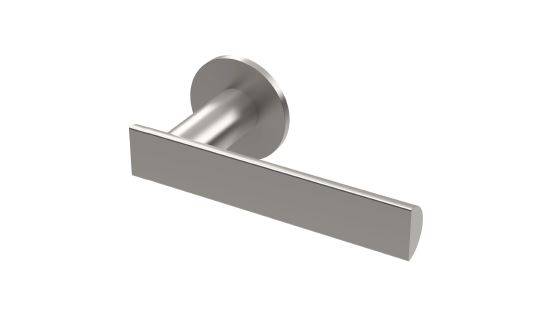

Half Radius Lever Handle (HUKP-0101-11) - Door handle
Verified by manufacturer 6 months ago
Stainless steel half radius lever handle.
Application
Suitable for high frequency of use EN4.
Description
Stainless steel half radius lever handle.
Features and benefits:
- Half moon design lever handle in solid bar stainless steel.
- Ball bearing concealed fixed rose with four point back to back fixing.
- Unsprung, for use with heavy duty followers.
- 52 mm diameter and 4 mm thick rose, 38 mm centres for bolt through fixings.
- To suit door thickness from 35-54 mm.
General information
Color | Silver Black Gold Bronze Manufacturer guidanceAny RAL colour available to special order. |
Finish | Satin Guidance for specification option: Brass or stainless steel. Polished Guidance for specification option: Brass or stainless steel. Matt Guidance for specification option: Black. |
Material | Stainless steel Steel |
Length | 135 mm |
Width | 61 mm |
Height | 24 mm |
Warranty description | 25 year |
Uniclass | |
CAWS | P21/610 Lever handles P21/38 Lever handles |
Product range |
Specification data - Door lever handle sets
Standard | To BS EN 1906: 2012 and EN 4. |
Classification grades (minimum) | |
Category of use | 4. |
Durability | 7. |
Fire resistance | 1.Guidance for specification option: Up to 60 minute fire rating. |
Safety | 1. |
Corrosion resistance | 4. |
Security | 0. |
Type of operation | U. |
Style | Half round pattern. |
Size | 24 mm diameter.Guidance for specification option: Half round: Depth of handle 12 mm. |
Material and finish | Polished stainless steel, grade 1.4404 (316L). |
Colour | Satin stainless steel.Polished stainless steel.Matt black.Light bronze.Guidance for specification option: Special order. Dark bronze.Guidance for specification option: Special order. Hafele black.Polished brass.Satin brass.RAL colour.Guidance for specification option: Special order. |
Mounting | Ball bearing concealed fixed rose with four point back to back fixing. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | - | 1 |
