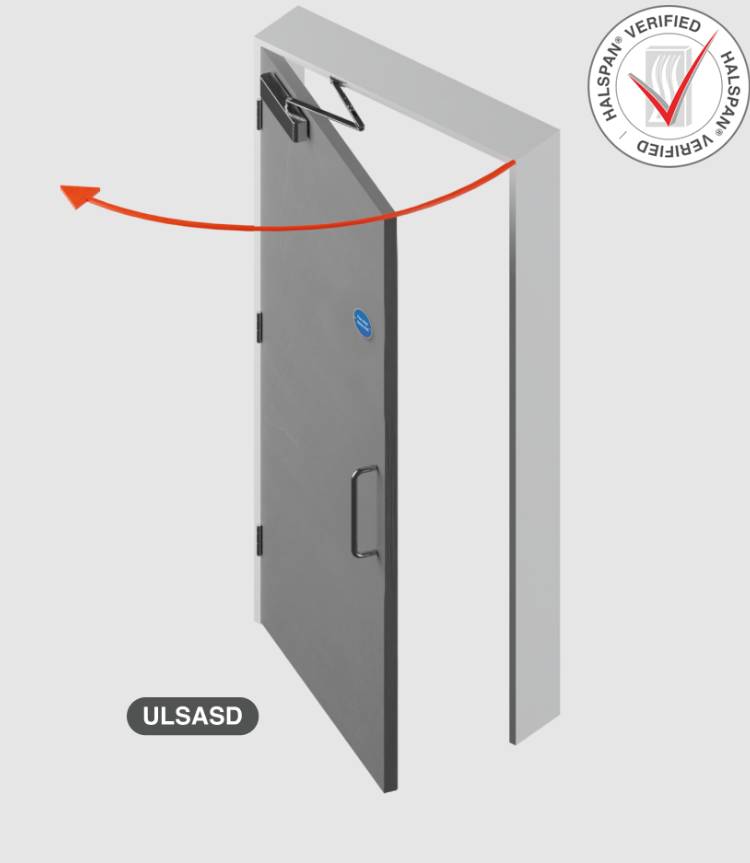

Halspan DS1100-ULSASD | Internal Timber Door System - Un-latched Single Action Single Door

Name: Halspan DS1100-ULSASD | Internal Timber Door System - Un-latched Single Action Single Door
Brand: Halspan Ltd
SKU: bAVWxDAbXFhxb27BeNrTyz

Verified by manufacturer 5 days ago

Non-Fire Rated

Halspan Ltd

Product certifications:

BM Trada
Certificate type
IFCC
Certificate type

Halspan Verified DS1100 Internal Timber Door System - Unlatched single action single door (ULSASD), available in non-fire rated to 90-minute fire performance.

Jump to:

+44 (0)330 0563836 Website

Application

Halspan Verified DS1100 Internal Timber Door System, suitable for the following sectors:

Education
Healthcare
Commercial
Industrial
Airport
Government

Description

The Halspan Verified DS1100 Internal Timber Door System is a range of unlatched single action single doorsets, available in non-fire rated to 90-minute fire performance. Incorporating essential components, which have been tested together in many modes and configurations to ensure both compliance and performance throughout its service life.

Features and benefits:

Fire performance: NFR / FD30 / FD30S* / FD60 / FD60S* / FD90 / FD90S*.
Acoustic performance: Upto 35dB Rw (unglazed); 36dB Rw (glazed). See variant.
Durability performance: Severe duty - tested to 00171/85 6375-2 **.
Thermal performance: U-value = 2.00 W/m²K (Prima FD30 44mm); 1.6 W/m²K (Prima FD60 54mm).
Chain of Custody: FSC®.
Particle board: formaldehyde release rating: 0.05 ppm when tested to EN 717-1.
Available in three style options: flush, glazed or feature grooves.
Available in three finish options: laminate, veneer or painted.

* Smoke leakage to 85476 Part 31.1.

** Applicable to Prima FD30, Prima FD60 and Halspan FD90.

Note: The information in this listing is correct at time of publishing however our designs, specifications and certifications may change in the interest of product development following publication. If you would like to enquire about any of the details in the product listing, please contact verified@halspan.com.

General information

Color	Beige Black Blue Brown Cream Green Grey Ivory Orange Pink Purple Red Turquoise White Yellow Other Show more
Finish	Laminated Veneered Painted Primed Stained Lacquered Show more Manufacturer guidance Please contact verified@halspan.com for full range of finish options available.
Material	Timber Wood Particleboard Guidance for specification option: Halspan Prima FD30 44mm: 44mm 3-layer particle board internal fire door blank rated to 30 minutes fire performance. Halspan Prima FD60 54mm: 54mm 3-layer particle board internal fire door blank rated to 60 minutes fire performance. Halspan FD90 64mm: 64mm 3-layer particle board internal fire door blank rated to 90 minutes fire performance.
Shape	Rectangle
Width	Bespoke Guidance for specification option: Please refer to Specification data - Doorset systems - Dimensions. Size dependent on chosen fire rating.
Height	Bespoke Guidance for specification option: Please refer to Specification data - Doorset systems - Dimensions. Size dependent on chosen fire rating.

Uniclass	Ss_25_30_20_25 Doorset systemsPrimary
CAWS	L20/410 Wood doorsets L20/420 Wood doorsets L20/430 Wood doorsets L20/270 Wood doors L20/30 Wood doors L20/230 Wood flush doors L20/20 Wood flush doors L20/250 Wood panelled doors L20/25 Wood panelled doors L20/480 Doorsets L20/55 Doorsets L20/280 Doors L20/45 Doors

SKU Code	DS1100-ULSASD

Specification data - Doorset systems

Classification data
System performance	Severe duty - tested to DD171/BS 6375-2.
Doorset	-
Type	Flush. Glazed. Feature grooves. Manufacturer guidance Feature grooves only applicable to Prima FD30 and Prima FD60.
Fasteners	Manufacturer's standard.
Glazing	Not required. Glazing style 01. Glazing style 02. Glazing style 03. Glazing style 04. Glazing style 05. Glazing style 06. Glazing style 07. Glazing style 08. Manufacturer guidance Glazing style 01 to 08, applicable to Prima FD30 and Prima FD60. Please contact verified@halspan.com for glazing styles suitable for Halspan FD90. Refer to Halspan Verified Door Systems Brochure to view glazing style options.
Seals or inserts	-
Frame	Not required.
Door	Not required.
Classification and certification labelling	-
Format	Manufacturer’s standard.
Hardware	Halspan Grade 13 hinge. Halspan Grade 14 hinge.
Filler between frame and reveal	- Manufacturer guidance For firestopping details please contact verified@halspan.com.
Trim	- Manufacturer guidance For architrave details please contact verified@halspan.com.
System accessories	Not required. Signage. Kick plate. Smart tag. Manufacturer guidance Dependant on door function, please contact verified@halspan.com for guidance.
Fire rating	Non-fire rated.
Acoustic performance	To BS EN ISO 10140-2, 33 dB Rw (unglazed); 35 dB Rw (glazed).
Door leaf profile	Not required. Feature grooves 01. Feature grooves 02. Feature grooves 03. Feature grooves 04. Feature grooves 05. Feature grooves 06. Manufacturer guidance Feature groove styles, only applicable to Prima FD30 and Prima FD60. Refer to Halspan Verified Door Systems Brochure to view Feature groove style options.
Door leaf	Halspan Prima FD30 44 mm.
Dimensions	2055 x 1266 mm. Guidance for specification option: From height 2055 mm x width 1266 mm. 912 x 2840 mm. Guidance for specification option: From width 912 mm x height 2840 mm. Manufacturer guidance Sizes based on current typical maximum leaf sizes from current data for FD30. Larger sizes may be permitted depending on the exact doorset designs. Please contact verified@halspan.com for further assistance.
Finish options	Laminated. Veneered. Painted. Manufacturer guidance Extensive range of finish options available, please contact verified@halspan.com.
Glazing bead	Not required. Bolection. Guidance for specification option: To be used in conjunction with Halspan 10 x 5 mm glazing tape (SLS-GLZ-111). Flush. Guidance for specification option: To be used in conjunction with Halspan 10 x 5 mm glazing tape (SLS-GLZ-111). Manufacturer guidance For assistance, on glazing systems, please contact verified@halspan.com to discuss project requirements.
Door closers	Halspan 6000 Eco EN2-4. Halspan 6100 Eco EN2-4. Halspan 6200 Eco EN2-4. Halspan 9000 Power EN2-5. Halspan 9100 Power EN2-5. Halspan 9200 Power EN2-5. Manufacturer guidance EN2-4 suitable for doors 850 mm to 1100 mm wide, max 80 kg. EN2-5 suitable for doors 850 mm to 1250 mm wide, max 100 kg. Concealed closers, Halspan 6200 Eco EN2-4 and Halspan 9200 Power EN2-5, are for use on doors of 54 mm thickness or greater. For assistance, on appropriate door closers, please contact verified@halspan.com to discuss project requirements.
Door locking	- Manufacturer guidance For assistance, on appropriate door locking, please contact verified@halspan.com to discuss project requirements.
Handles	Halspan pull handle. Halspan push plate. Manufacturer guidance For assistance, on appropriate handles, please contact verified@halspan.com to discuss project requirements.

Sustainability data

Material	Timber Wood Particleboard Guidance for specification option: Halspan Prima FD30 44mm: 44mm 3-layer particle board internal fire door blank rated to 30 minutes fire performance. Halspan Prima FD60 54mm: 54mm 3-layer particle board internal fire door blank rated to 60 minutes fire performance. Halspan FD90 64mm: 64mm 3-layer particle board internal fire door blank rated to 90 minutes fire performance.
