Halspan DS3000-DASD | Internal Timber Door System - Double Acting Single Door

Name: Halspan DS3000-DASD | Internal Timber Door System - Double Acting Single Door
Brand: Halspan Ltd
SKU: u8A2giThbE6He2Rweij9BH

Verified by manufacturer 5 days ago

Non-Fire Rated

Halspan Ltd

Product certifications:

BM Trada
Certificate type
IFCC
Certificate type

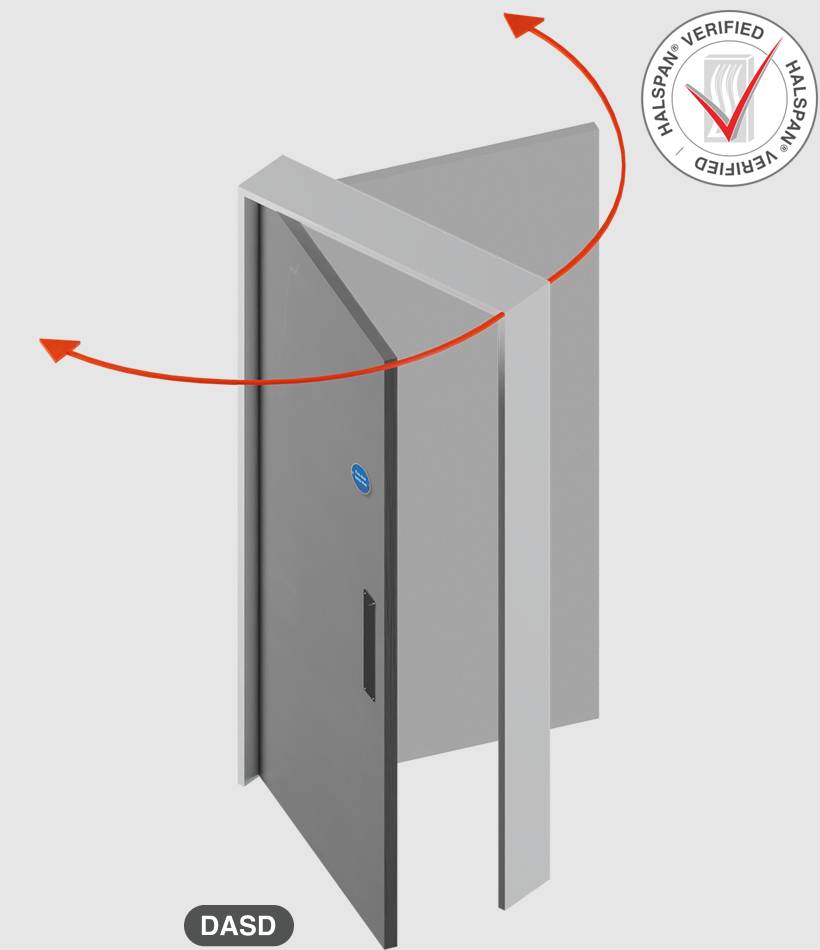

Halspan Verified DS3000 Internal Timber Door System - Double action single door (DASD), available in non-fire rated to 60-minute fire performance.

Jump to:

+44 (0)330 0563836 Website

Application

Halspan Verified DS3000 Internal Timber Door System, suitable for the following sectors:

Education
Healthcare
Hospitality
Industrial

Description

The Halspan Verified DS3000 Internal Timber Door System is a range of unlatched double action single doorsets, available in non-fire rated to 60-minute fire performance. Incorporating essential components, which have been tested together in many modes and configurations to ensure both compliance and performance throughout its service life.

Features and benefits:

Fire performance: NFR / FD30 / FD30S* / FD60 / FD60S*.
Acoustic performance: Upto 34dB Rw (unglazed); 36dB Rw (glazed). See variant.
Durability performance: Severe duty - tested to 00171/85 6375-2 **.
Thermal performance: U-value = 2.00 W/m²K (Prima FD30 44mm); 1.6 W/m²K (Prima FD60 54mm).
Chain of Custody: FSC®.
Particle board: formaldehyde release rating: 0.05 ppm when tested to EN 717-1.
Available in three style options: flush, glazed or feature grooves.
Available in three finish options: laminate, veneer or painted.

* Smoke leakage to 85476 Part 31.1.

** Applicable to Prima FD30, Prima FD60 and Halspan FD90.

Note: The information in this listing is correct at time of publishing however our designs, specifications and certifications may change in the interest of product development following publication. If you would like to enquire about any of the details in the product listing, please contact verified@halspan.com.

General information

Color	Beige Black Blue Brown Cream Green Grey Ivory Orange Pink Purple Red Turquoise White Yellow Other Show more
Finish	Laminated Veneered Painted Primed Stained Lacquered Show more Manufacturer guidance Please contact verified@halspan.com for full range of finish options available.
Material	Timber Wood Particleboard Guidance for specification option: Halspan Prima FD30 44mm: 44mm 3-layer particle board internal fire door blank rated to 30 minutes fire performance. Halspan Prima FD60 54mm: 54mm 3-layer particle board internal fire door blank rated to 60 minutes fire performance.
Shape	Rectangle
Width	Bespoke Guidance for specification option: Please refer to Specification data - Doorset systems - Dimensions. Size dependent on chosen fire rating.
Height	Bespoke Guidance for specification option: Please refer to Specification data - Doorset systems - Dimensions. Size dependent on chosen fire rating.

Uniclass	Ss_25_30_20_25 Doorset systemsPrimary
CAWS	L20/410 Wood doorsets L20/420 Wood doorsets L20/430 Wood doorsets L20/270 Wood doors L20/30 Wood doors L20/230 Wood flush doors L20/20 Wood flush doors L20/250 Wood panelled doors L20/25 Wood panelled doors L20/480 Doorsets L20/55 Doorsets L20/280 Doors L20/45 Doors

SKU Code	DS3000-DASD

Specification data - Doorset systems

Classification data
System performance	Severe duty - tested to DD171/BS 6375-2.
Doorset	-
Type	Flush. Glazed. Feature grooves.
Fasteners	Manufacturer's standard.
Glazing	Not required. Glazing style 01. Glazing style 02. Glazing style 03. Glazing style 04. Glazing style 05. Glazing style 06. Glazing style 07. Glazing style 08. Manufacturer guidance Refer to Halspan Verified Door Systems Brochure to view glazing style options.
Seals or inserts	-
Frame	Not required.
Door	Not required.
Classification and certification labelling	-
Format	Manufacturer’s standard.
Hardware	Bottom pivot hinge. Guidance for specification option: As supplied with transom closer accessory pack. Top centre hinge. Guidance for specification option: As provided with floor spring accessory pack.
Filler between frame and reveal	- Manufacturer guidance For firestopping details please contact verified@halspan.com.
Trim	- Manufacturer guidance For architrave details please contact verified@halspan.com.
System accessories	Not required. Signage. Kick plate. Smart tag. Manufacturer guidance Dependant on door function, please contact verified@halspan.com for guidance.
Fire rating	Non-fire rated.
Acoustic performance	To BS EN ISO 10140-2, 33 dB Rw (unglazed); 35 dB Rw (glazed).
Door leaf profile	Not required. Feature grooves 01. Feature grooves 02. Feature grooves 03. Feature grooves 04. Feature grooves 05. Feature grooves 06. Manufacturer guidance Refer to Halspan Verified Door Systems Brochure to view Feature groove style options.
Door leaf	Halspan Prima FD30 44 mm.
Dimensions	2055 x 1216 mm. Guidance for specification option: Standard option: From height 2055 mm x to width 1216 mm. 912 x 2740 mm. Guidance for specification option: Standard option: From width 912 mm x to height 2740 mm. 2055 x 1266 mm. Guidance for specification option: Enhanced option: From height 2055 mm x to width 1266 mm. 912 x 2840 mm. Guidance for specification option: Enhanced option: From width 912 mm x to height 2840 mm. Manufacturer guidance Please note if using a Halspan 9300 EN4 floor spring, there is a restricted width of 1100 mm due to floor spring capacity. Standard dimension options for width restriction: 2316 x 1100 mm. From height 2316 mm x to width 1100 mm. 1100 x 2316 mm. From width 1100 mm x to height 2316 mm. Enhanced dimension options for width restriction: 2423 x 1100 mm. From height 2423 mm x to width 1100 mm. 1100 x 2423 mm. From width 1100 mm x to height 2423 mm. Sizes based on current typical maximum leaf sizes from current data for FD30. Larger sizes may be permitted depending on the exact doorset designs. Please contact verified@halspan.com for further assistance.
Finish options	Laminated. Veneered. Painted. Manufacturer guidance Extensive range of finish options available, please contact verified@halspan.com.
Glazing bead	Not required. Bolection. Guidance for specification option: To be used in conjunction with Halspan 10 x 5 mm glazing tape (SLS-GLZ-111). Flush. Guidance for specification option: To be used in conjunction with Halspan 10 x 5 mm glazing tape (SLS-GLZ-111). Manufacturer guidance For assistance, on glazing systems, please contact verified@halspan.com to discuss project requirements.
Door closers	Dorma RTS87 EN1-4 transom closer. Halspan 6300 EN3 floor spring. Guidance for specification option: EN3 floor springs suitable for maximum door width of 950 mm, maximum weight 105 kg. Halspan 9300 EN4 floor spring. Guidance for specification option: EN4 floor springs suitable for maximum door width of 1100 mm, maximum weight of 150 kg. Manufacturer guidance For assistance, on appropriate door closers, please contact verified@halspan.com to discuss project requirements.
Door locking	Halspan roller lock. Halspan DIN standard forend dead lock. Abloy 351U80 solenoid lock. Guidance for specification option: Suitable power supply required. Local or remote access control, as per site requirements. Halspan Euro profile cylinder key/ key. Guidance for specification option: 1 star and 3 star cylinder options available. Halspan Euro profile cylinder key/ turn. Guidance for specification option: 1 star and 3 star cylinder options available. Halspan Euro profile Escutcheon. Manufacturer guidance For assistance, on appropriate door locking, please contact verified@halspan.com to discuss project requirements.
Handles	Halspan pull handle. Halspan push plate. Manufacturer guidance For assistance, on appropriate handles, please contact verified@halspan.com to discuss project requirements.

Sustainability data

Material	Timber Wood Particleboard Guidance for specification option: Halspan Prima FD30 44mm: 44mm 3-layer particle board internal fire door blank rated to 30 minutes fire performance. Halspan Prima FD60 54mm: 54mm 3-layer particle board internal fire door blank rated to 60 minutes fire performance.
