Hanpave® - Porous Paving Grid
Verified by manufacturer 5 days ago
ISO 9001 Quality Management
Certificate type
EPD
Certificate type

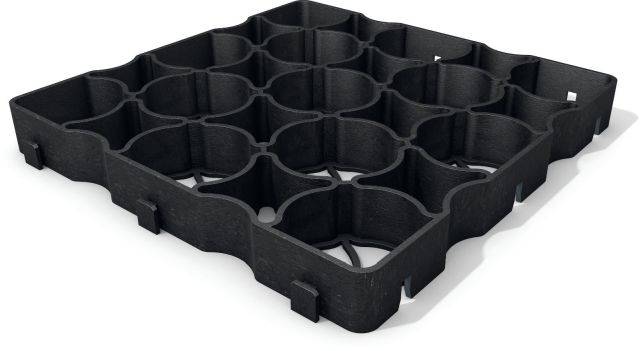

Recycled polypropylene paving grid/ Plastic cellular pavers.
Application
Plastic cellular pavers suitable for use for truck parks, lay-bys and access routes.
Description

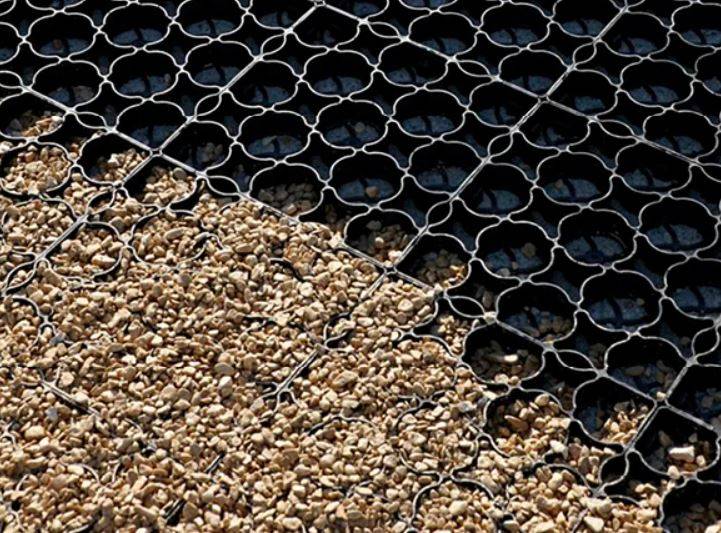

Hanpave is a high performance grid made from recycled polypropylene. Designed for car-parking, Hanpave can be filled with earth or gravel. The structure allows rainwater to pass through at a controlled rate and is SUD (Sustainable Urban Drainage) regulations compliant.
Features and benefits:
- Suitable for grass or gravel surface finishes.
- Plastic cellular pavers are compliant with part M (building regulations) and Equality Act (DDA).
- Lightweight.
- Load capacity 250 tonne/m².
- Tested in accordance with DIN EN 124 to maximum capacity and achieves 400–600 tonnes/m² dependent on the filling of either topsoil or gravel.
- Parking space delineators (fitted white caps) are available as an optional extra.
- Easy to install.
General information
Color | Black |
Material | Polypropylene |
Shape | Square |
Length | 3330 mm |
Width | 3330 mm |
Height | 40 mm |
Warranty description | 20 year |
Uniclass | |
CAWS | Q25/62 Plastics pavers Q30/361 Reinforced grass system Q23/10 Hard binding gravel Q25/350 Plastics pavers Q25/185 Gravel-filled plastics paving system |
Specification data - Plastics cellular pavers
Physical properties | |
Material | Recycled plastics.Guidance for specification option: 100% recycled mixed polyolefins. |
Colour | Black.Green. |
Top surface finish | Plain. |
Profile | |
Paver type | Regular plan form, square. |
Interlocking features | Required. |
Dimensions | |
Plan size | 333 x 333 mm. |
Thickness (minimum) | 40 mm. |
Load carrying capacity (minimum) | 250 tonne/m².Guidance for specification option: Tested in accordance with DIN EN 124 to maximum capacity and achieves 400–600 tonnes/m² dependent on the filling of either topsoil or gravel (see overview). |
Recycled content (minimum) | 100%. |
Weight | 0.5 kg. |
CompressiveStrength | 2,465 kN/m². Guidance for specification option:
Manufacturer guidanceMax. load/ unit. |
Connection | Integral T connector and slots. |
Infiltration | 5,000 mm/hr. |
Accessories | Not required. Parking space delineators. Guidance for specification option: Fitted white caps. Available as a optional extra. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Polypropylene |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
Third party certifications
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Third party certifications
ISO 9001 Quality Management
ISO 9001
EPD
Environmental Product Declaration
Literature
Hanpave -Technical Specification
Case studies
HANPAVE™
