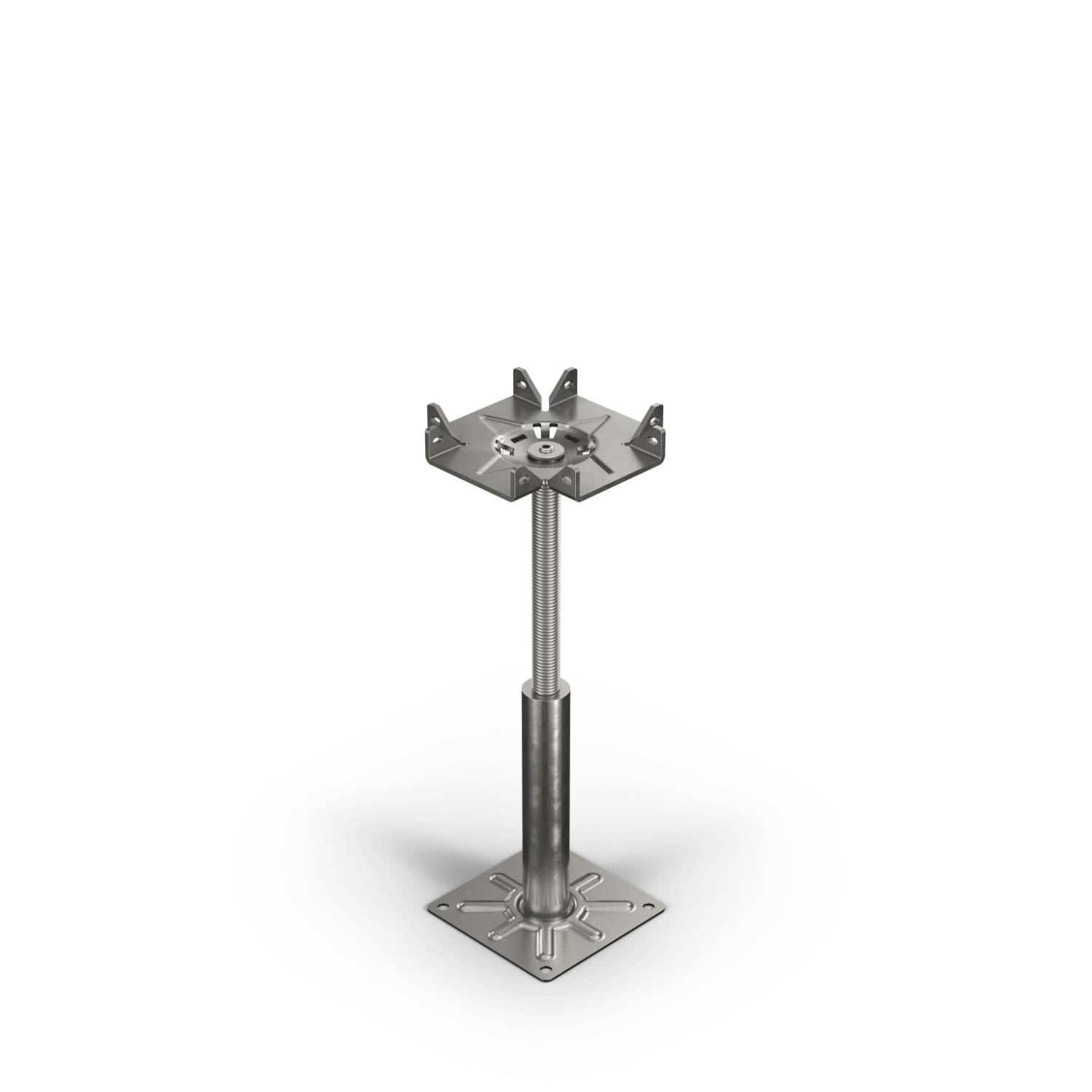

Harmer Modulock Non-Combustible Self Levelling Support Pedestals - Decking
Verified by manufacturer 27 days ago
NCSL1/D - 27–35 mm
NCSL1/D - 27–35 mm
UKAS
Certificate type
Raised Deck Support Pedestals Class A1 Fire Rated.
Application
For terraces, podiums, roof decks and balconies
Description
European Classification (Euroclass) A1 Fire Rated decking pedestal supports. Compliant with BS 8579 - Guide to the design of balconies and terraces. The large height-adjustable range is available for every application.
Features and Benefits:
- Manufactured from steel
- Provides strong support for slabs
- Will not crack, split or warp
- Highly durable zinc nickel finish provides excellent corrosion resistance
General information
Color | Grey |
Finish | Zinc plated |
Material | Steel |
Height | Bespoke Guidance for specification option: 27–458 mm. |
Uniclass | |
CAWS | J31/80 Precast concrete paving slabs J21/85 Precast concrete paving slabs Q37/460 Support pedestals J21/467 Support system for precast concrete paving slabs J41/90 Precast concrete paving slabs J42/467 Support system for precast concrete paving slabs J31/375 Paving tiles J31/370 Precast concrete paving slabs Q55/395 Support pedestals |
Product range |
Specification data - Decking and paving pedestals
Pedestal type | Screwjack. |
Material | Steel, zinc nickel finish. |
Adjustment | 27–35 mm. |
Reaction to fire | Euroclass A1. |
Sustainability data
Contains Red List materials | No |
Material | Steel |
Recyclability | 100% Recyclable |
Third party certifications
UKAS
ISO 14001 - Burton Latimer site
UKAS
ISO 9001 - Burton Latimer site
