HAWA-Bifold 30 Top Hung Folding Door Fittings - Door furniture
Verified by manufacturer 15 days ago
Fittings for sliding folding timber partition doors.
Application
Suitable for double folding door applications in residential and commercial settings.
Description
Fitting sets of running gear and tracks for double folding door applications where a clear threshold is preferred.
Features and benefits:
- Door height (maximum): 2200 mm.
- Door thickness 26–45 mm.
- Door weight (maximum): 30 kg.
- Door width (maximum) 600 mm.
General information
Color | Silver |
Finish | Anodized |
Material | Aluminium |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year |
Uniclass | |
CAWS | P21/10 Door track and running gear P21/350 Door track and running gear |
Product range |
Specification data - Door track and running gear
Standard | To EN 1527:2013. |
Product Reference | HAWA-Bifold 30 Top Hung Folding Door Fittings |

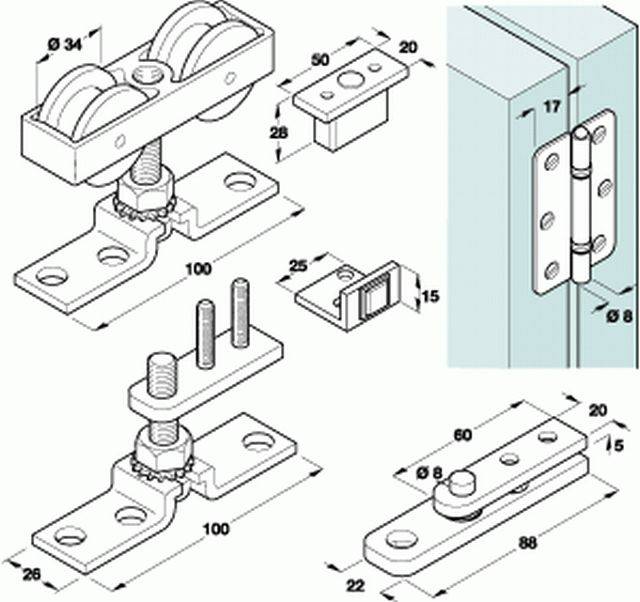

Fittings | 407.58.003 Fitting set. Guidance for specification option: Two doors. 407.58.004 Fitting set. Guidance for specification option: Four doors. 407.58.006 Fitting set. Guidance for specification option: Six doors. 940.80.200 Top track. Guidance for specification option: 2.0 m, silver anodized aluminium. 940.80.250 Top track. Guidance for specification option: 2.5 m, silver anodized aluminium. |
Accessories | None. 900.17.945 Knob slide surface bolt. Guidance for specification option: Polished brass. 900.17.946 Knob slide surface bolt. Guidance for specification option: Satin nickel-plated brass. 921.08.024 Butt hinge. Guidance for specification option: Bright polished brass. 921.08.122 Butt hinge. Guidance for specification option: Satin stainless steel. |
Fitting set | Guidance for specification option: Fitting sets:
|
Sustainability data
Contains Red List materials | No |
Country of material origin | Switzerland |
Country of product manufacture | Switzerland |
Recyclability | Yes |
Literature
Häfele Guide to Simple Sliding Door Specification
Hawa Bifold 30 Installation Instructions
