HeartFelt® Origami Pyramid - Acoustic Ceiling System

Name: HeartFelt® Origami Pyramid - Acoustic Ceiling System
Brand: Hunter Douglas Architectural
SKU: qsWCtbYrbiM3vPniwvtq4P

Verified by manufacturer 1 day ago

Hunter Douglas Architectural

Product certifications:

Cradle to Cradle Certified
Certificate type
Indoor Air Comfort – Eurofins
Certificate type

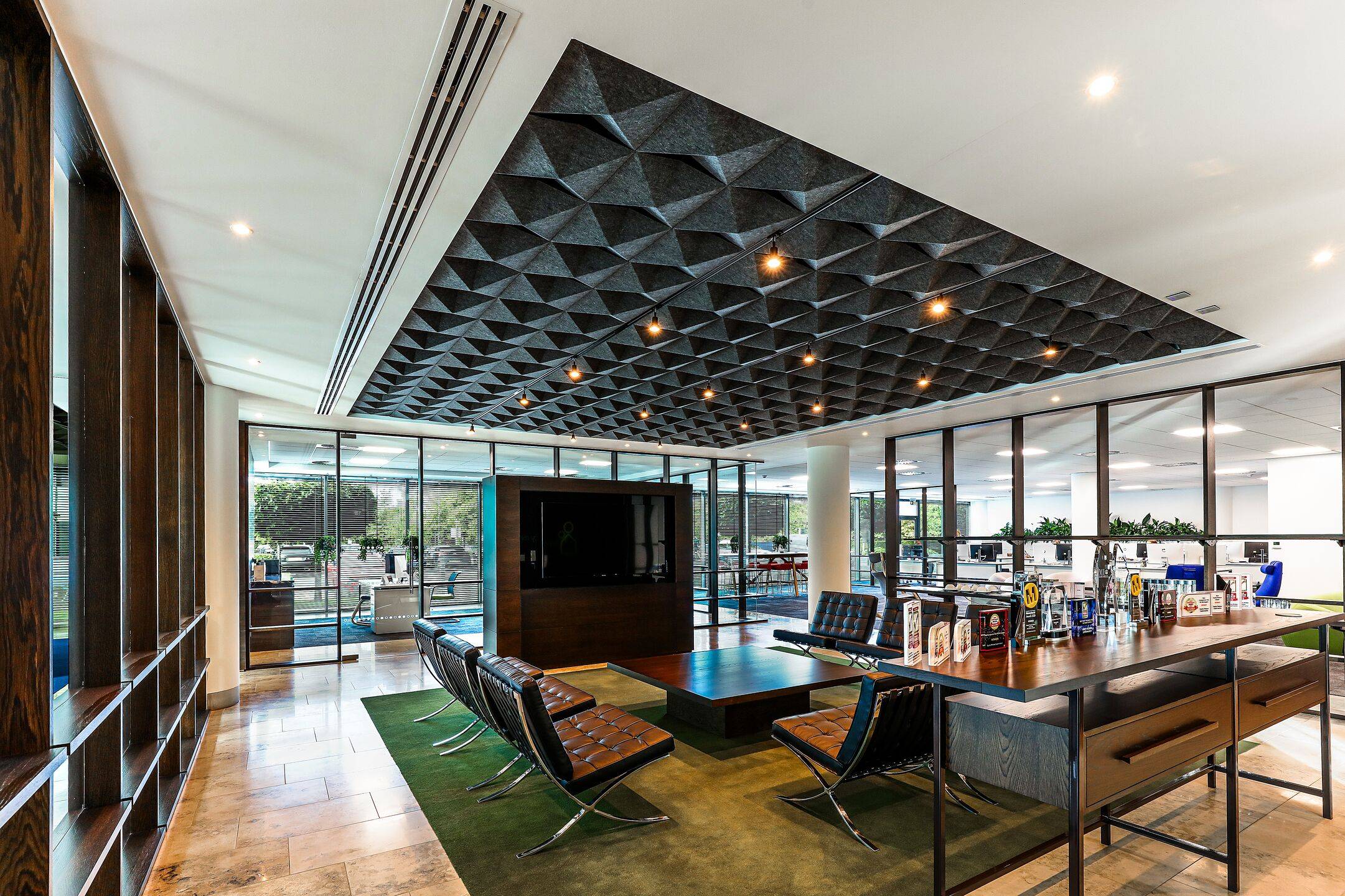

Pyramid-like fold acoustic panels in a suspended ceiling grid.

Jump to:

+44 (0)1604 648229 Website

Application

Suitable for use internally in ceiling acoustic control applications.

Description

HeartFelt® Origami is a ceiling system which design is based on origami folding techniques. The Origami felt panels take on their final shape and pattern during installation through folding lines and incisions.

Features and benefits:

Great acoustic performance.
Five shades of grey and five earth tones.
Available in the size of 600 x 600 mm.
Recyclable or easily reusable.
Easy to maintain, dirt and dust resistant.

General information

Color	White Grey Black Brown Cream
Finish	Other
Material	Felt Aluminium Steel
Shape	Square
Length	600 mm Guidance for specification option: Panel module size. Bespoke Guidance for specification option: System length is bespoke.
Width	600 mm Guidance for specification option: Panel module size. Bespoke Guidance for specification option: System width is bespoke.
Height	185 mm

Uniclass	Ss_25_25_75_05 Acoustic panel lining systemsPrimary
CAWS	K40/115 Unit/ modular suspended ceiling system K40/135 Board-suspended ceiling system K13/170 Acoustic panel lining K13/170 Acoustic panel lining

Specification data - Acoustic panel lining systems

Classification data
Panelling	-
Type	Origami Pyramid, individual tiles.
Surface material	Non-woven, thermoformed polyester (PES) fibres.
Surface finish	Profiled.
Fasteners	Mounting clip and locking clip.
System accessories	Not required. Carrier splice. Mounting profile splice.

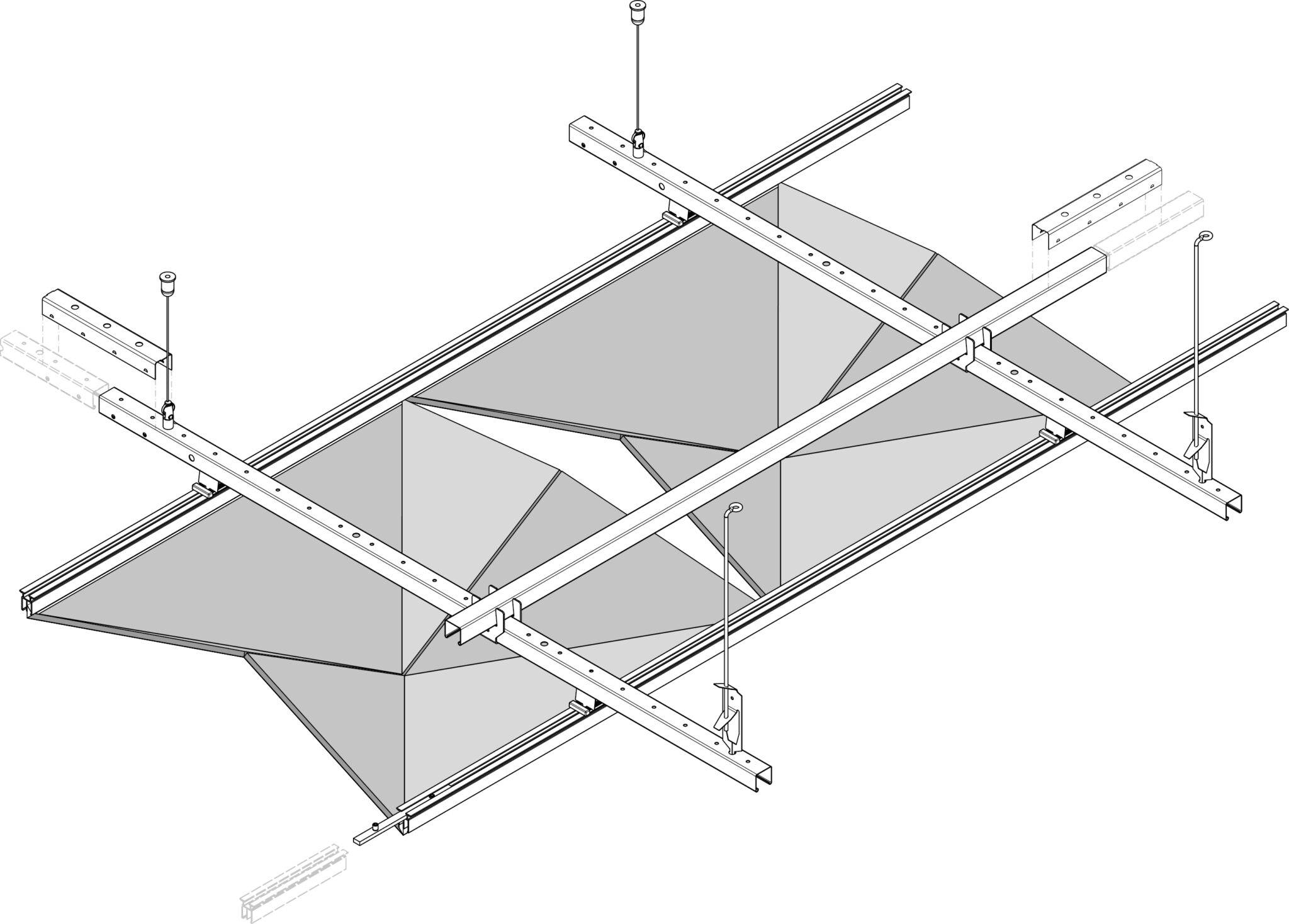

Components	Origami tile, mounting profile, carrier, stabilization bracket, stabilization profile, quick hanger and wire hanger.
Panel dimensions	600 x 600 x 160 mm.
Module	M600.
Open space	7.61%. Manufacturer guidance Openness.
Weight	2.6 kg/m².
Sound absorption coefficient	αw, 0.8.
Joint	Closed.
Colour	White 7593. Light grey 7596. Middle grey 7597. Dark grey 7598. Black 7594. Creme 7575. Light brown 7576. Medium brown 7577. Dark brown 7578. Umber 7579.
Reaction to fire	To EN 13501-1, B-s1, d0.

Sustainability data

Material	Felt Aluminium Steel
Recycled content As defined in clause 7.8 of BS EN ISO 14021	86 % Guidance for specification option: Suspension components only. 0% for felt component.
