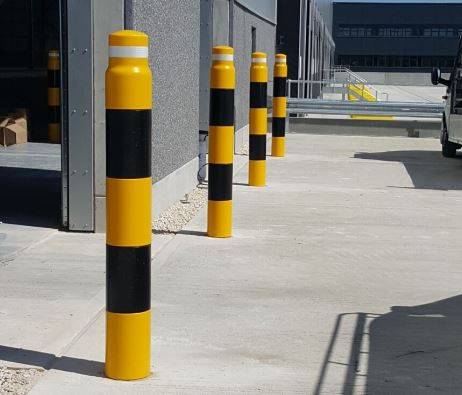

Heavy Duty Potted Bollard
Verified by manufacturer 3 months ago
BK-HDP-168-960 - 168 mm diameter, 960 mm high
BK-HDP-168-960 - 168 mm diameter, 960 mm high
Robust, impact-absorbing bollard.
Application
Designed to protect warehouse buildings and external access loading bay doors from heavy vehicle impacts.
Description
Robust, impact-absorbing bollard.
Core is manufactured from high quality mild steel and hot dip galvanized to BS EN ISO 1461. Finished with a polymer bollard cover kit.
Features and benefits:
- Heavy duty.
- High visibility.
- No-paint maintenance benefits.
- Incorporates a 50 mm reflective silver band.
- Drill/ cast-in.
- Engineered to withstand impact from material handling equipment, ensuring that floor anchors and protective slabs remain safe and secure.
- Available in five colours, suited to warehouse regulations.
Supplied with Rawl R-SPL-10120/40 Safety Plus Anchors M10 x 120 mm (3).
General information
Color | Green White Red Black Yellow |
Finish | Galvanized |
Material | Steel Polymer High density polyethylene (HDPE) |
Shape | Rectangle |
Width | 168 mm 219 mm Manufacturer guidance(Diameter). |
Height | 960 mm 1260 mm 1560 mm |
Uniclass | |
CAWS | Q50/31 Bollards Q50/190 Bollards |
Specification data - Carbon steel bollards
Duty | Heavy. |
Dimensions | |
Size and profile | 168 mm diameter.Guidance for specification option: 210 mm total diameter with cover. |
Height | 960 mm. |
Length below ground | 500 mm.Guidance for specification option: Installation requires some excavation to the required depth of the ‘potted’ bollard section. |
Post top | Rounded. |
Finishes | |
Applied finish | Galvanized to BS EN ISO 1461. |
Colour | Green/ White (GW).Guidance for specification option: Fire escape rooms. Red/ White (RW).Guidance for specification option: High warning areas. Black/ Yellow (BY).Guidance for specification option: Standard. Caution areas. Yellow/ Black (YB).Guidance for specification option: Caution areas. Yellow (YY).Guidance for specification option: Caution areas. Other.Guidance for specification option: Bespoke options available. Consult manufacturer and insert requirements. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Steel Polymer High density polyethylene (HDPE) |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
