Heavy Duty Support
Verified by manufacturer 1 month ago
ISO 9001 Quality Management
Certificate type
Support pad for fixed-height tiles.
Application
Suitable for use in areas that have higher than normal loads.
Description

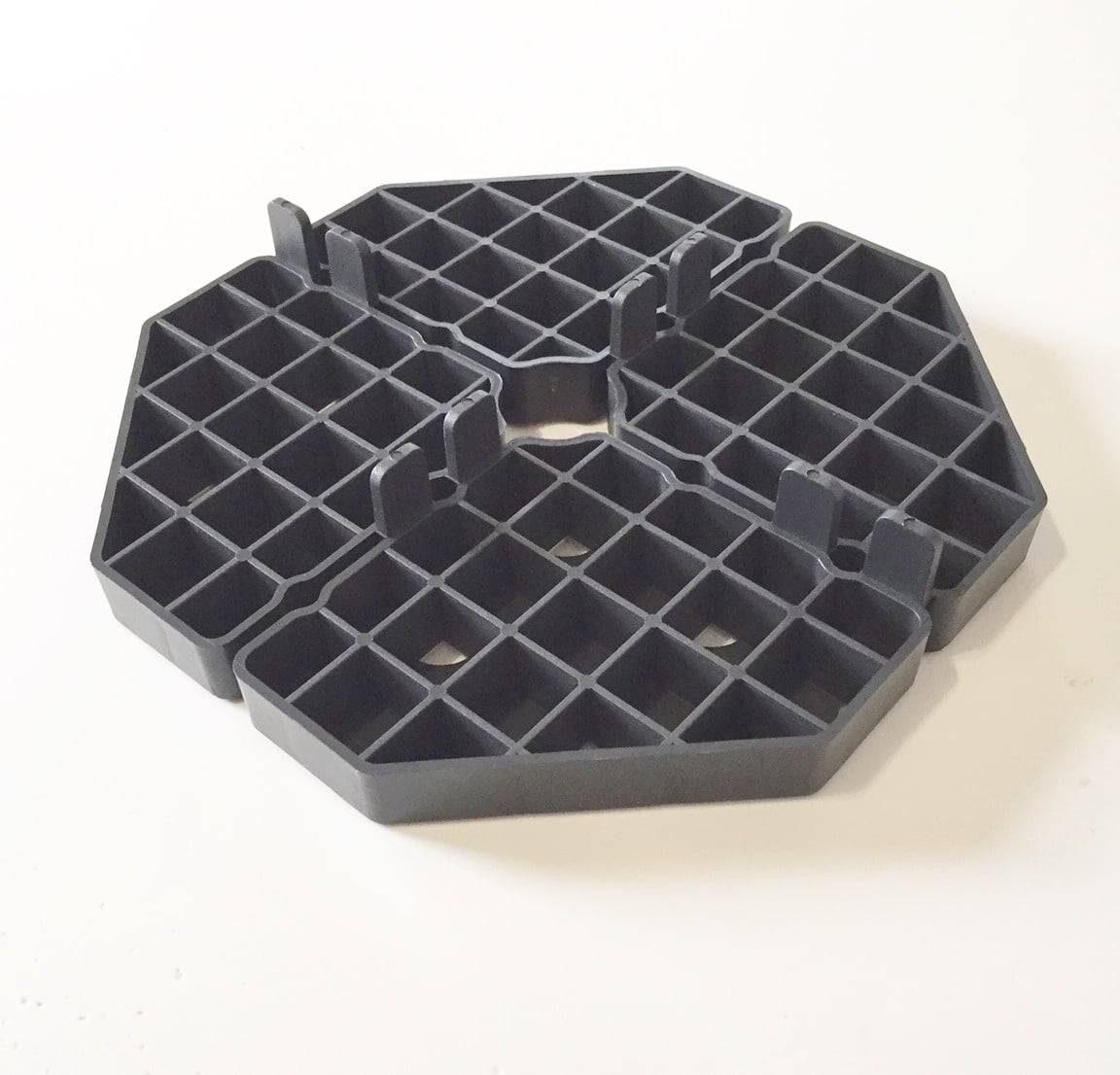

The 16 mm HD Support has a 176 mm diameter base with a very strong lattice design.
Features and benefits:
- Split to quarters and halves possible.
- Stackable up to three times.
- Gap spaces: 3 and 5 mm.
- Easy installation.
General information
Color | Black |
Finish | Smooth |
Material | Polypropylene |
Shape | Octagon |
Length | 180 mm |
Width | 180 mm |
Height | 30 mm |
Warranty description | Five year |
Uniclass | |
CAWS | J21/467 Support system for precast concrete paving slabs J31/377 Support system for paving slabs or tiles J41/467 Support system for precast concrete paving slabs J42/467 Support system for precast concrete paving slabs Q55/395 Support pedestals |
Product range |
Specification data - Decking and paving pedestals
Pedestal type | Non-adjustable.Guidance for specification option: Stackable up to three times. |
Grade | 750 kg. |
Material | Polypropylene. |
Adjustment | Not applicable. |
Accessories | None.2 mm levelling disc.3 mm lugs.5 mm lugs. |
Diameter | 176 mm. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Poland |
Country of product manufacture | Poland |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | - | 1 |
