Hinged Support Rail - 650mm - Grab Bar - PLAN CARE - Grab bar
Verified by manufacturer 5 months ago
34902010637
34902010637
TUV - Safety and Quality Report
Certificate type
Supporting rail for washbasin with synthetic covered support, movable to vertical position. Projection 650 mm.
Application
For installation in bathrooms and washbasin areas of public or private facilities.
Description
Plan Care drop-down supporting rail with synthetic covered support, movable to vertical position. Keuco premium materials and workmanship make the grab bars and rails safe and lasting companions, even in demanding conditions.
Features and benefits:
- Pivoted supporting rail for washbasins; available in high-shine chrome-plated and aluminium silver anodized finishes.
- Anti-slip, plastic covered support on surface area; available in light grey, dark grey or white.
- Aesthetic, practical and ergonomic.
General information
Color | Silver Guidance for specification option: Chrome, Silver anodized. |
Finish | Chrome Guidance for specification option: Chrome plated. Anodized Guidance for specification option: Aluminium silver anodized. |
Material | Brass Guidance for specification option: CW508L. |
Shape | Other |

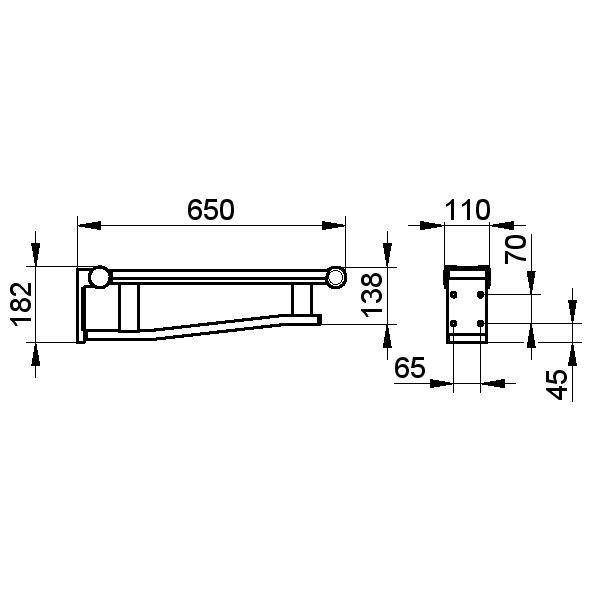

Length | 650 mm |
Width | 110 mm |
Height | 182 mm |
Warranty description | Five year |
Uniclass | |
CAWS | N13/69 Support rails and grab bars N13/436 Handrails and grab bars |
Product range |
Specification data - Support rails
Form | Pivoted. |
Materials | |
Body | Manufacturer's standard. |
Finish and colour | Chrome-plated/ dark grey (RAL 7021). |
Mounting | 2 x mounting-set 2. Guidance for specification option: (item no. 34991000100.) 2 x mounting-set 5. Guidance for specification option: (item no. 34991000200.) 2 x mounting-set 8. Guidance for specification option: (item no. 34994000200.) 1 x mounting-set 10. Guidance for specification option: (item no. 34996000100.) Manufacturer guidanceIt’s essential for installation to order the correct screws/ bolts depending on type of wall. Consult with manufacturer for more details. |
Depth | 650 mm. |
Width | 110 mm. |
Height | 182 mm |
Sustainability data
Contains Red List materials | No |
Country of material origin | Germany |
Country of product manufacture | Germany |
Material | Brass Guidance for specification option: CW508L. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
