HiSec 358 Profile Perimeter Fencing

Name: HiSec 358 Profile Perimeter Fencing
Brand: Zaun Limited
SKU: krLoDkLbLGFWWn3dxzr5gM

Verified by manufacturer 4 months ago

Zaun Limited

Rigid security fencing.

Jump to:

+44 (0)1902 796699 Website

Application

Civic and public sector.
Health and emergency services.
High security.
Industrial.
Schools and education.
Transport and infrastructure.
Utilities.

Description

Zaun’s HiSec V Spider security fencing uses a popular ‘358’ welded mesh configuration to repel thieves, trespassers and intruders. It features a ‘V’ beam within the mesh to add additional rigidity to the panel. The close mesh means that it is difficult to climb, and cut with anything other than power tools. Using the ‘spider’ clip system to fix the perimeter posts, it can work to mitigate the risk of potential attack.

The system is available up to 5.2 m high in one single panel, which acts as additional security and removed breaks within the fence line. The HiSec V Spider system is suitable for integrating with CCTV, PIDs and security topping enhancements such as barb and razor coils, all of which can be supplied as part of a complete turnkey solution.

Features and benefits:

Manufactured to the traditional 358 mesh pattern regularly associated with prisons.
Additional ‘V’ added for extra rigidity.
The tight welded mesh offers no climbing aids and mitigates attack by hand and powered tools.
Open mesh pattern provides excellent visibility.
Single panel heights can be supplied of up to a maximum of 5.2 m.
Available either bolt down, in ground or on wall.

General information

Finish	Galvanized Powder coated
Material	Metal
Size	2997 x 2515 mm 2438 x 2515 mm 2007 x 2515 mm 1829 x 2515 mm

Uniclass	Ss_25_14_61_51 Metal mesh panel fencing systemsPrimary
CAWS	Q40/125 Open mesh steel panel general purpose fencing Q40/27 Open mesh steel panel general purpose fencing

Specification data - Metal mesh panel fencing systems

Standard	To BS1722, ISO 12944.
Posts	120 x 60 mm rectangular hollow section post (RHS) posts. Guidance for specification option: Sizes dependent on height, spaced at 2525 mm centres.
Panels	HiSec V beam mesh. Guidance for specification option: Comprising 12.7 x 76.2 mm mesh with 4 mm vertical wires at 76.2 mm centres with 4 mm horizontal wires at 12.7 mm centres.
System accessories	Not required. Pedestrian gate. Guidance for specification option: Single leaf, 1.2 m wide, or width to suit, consult manufacturer and insert requirements. Vehicular gate. Guidance for specification option: Double leaf, 3.0 m wide, or width to suit, consult manufacturer and insert requirements.

Height	1829 mm. 2007 mm. 2438 mm. 2997 mm.
Applied finishes	Galvanized and polyester powder coated.
SecurityRating	Not required. SR1. Guidance for specification option: DualFix only. Consult manufacturer for details.
Gates	50 x 50 mm RHS frame, Zaun HiSec mesh bolted onto the frame using the Zaun picture frame design, slide latch, rubber bump stop and two gate posts. Guidance for specification option: Vehicular access also supplied with drop bolts.
Fixing	Bolt down. In ground. Wall.

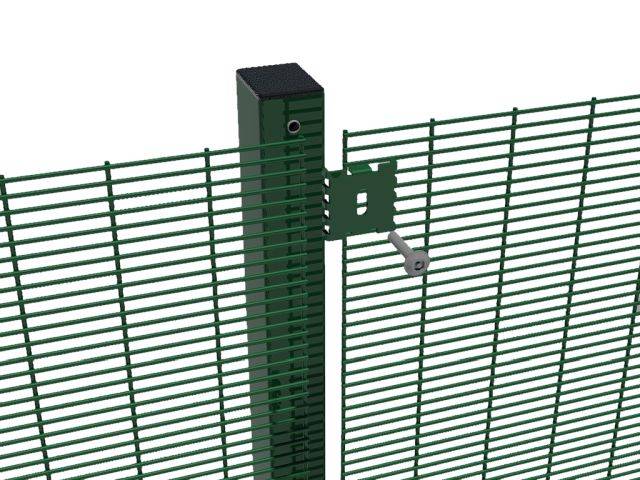

Panel fixings	Panels fixed to posts with spider clips with bolt fixings at 400 mm centres.
Width	2515 mm.
Mesh size	76.2 x 12.7 mm.
WireDiameter	4 mm / 4 mm. Guidance for specification option: Vertical x Horizontal.
Fixing type	Clips.
Fixings	Through bolts, nuts and washers.
