HiSec SR1 (A1) Rated Security Fencing

Verified by manufacturer 4 months ago

Zaun Limited Third party certifications:
  • BRE Certificate

    BRE Certificate

    Certificate type

LPS 1175 SR1 (A1) rated security fencing.

Jump to:
+44 (0)1902 796699 Website

Application

  • Civic and public sector.
  • Health and emergency services.
  • High security.
  • Industrial.
  • Schools and education.
  • Transport and infrastructure.
  • Utilities.

Description

Zaun’s HiSec SR1 fence uses the 358 welded mesh configuration, which is particularly suitable for use in applications where Secured by Design accreditation is required. The system attributes make it an excellent solution for high security applications including schools, prisons, utility suppliers or anywhere that a physical security protection is required. The fences use the prison mesh configuration making the fence system almost impossible to climb and very difficult to cut with anything other than power tools.


Fence panels are available in 2.0, 2.4 and 3.0m heights at 2515mm wide. Coupled with Zaun’s tamper resistant fasteners, the result is a rigid perimeter fence that offers a high degree of vandal resistance and an extremely high level of through visibility. The system offers the same product benefits as the standard HiSec, but with added security. Manufacturing is subject to stringent quality control, meaning all fences are of a uniformly high quality. This system conforms to BS 1722: Part 14: Category 4 and carries certification to LPS 1175 SR1 as required for Secured by Design.


Features and benefits:

  • Security rated at SR1 LPCB LPS1175 by BRE as featured in the Red Book.
  • Manufactured to the traditional 358 mesh pattern regularly associated with prisons.
  • The tight welded mesh offers no climbing aids and mitigates attack by hand and powered tools.
  • Open mesh pattern provides excellent visibility.
  • Single panel heights can be supplied of up to a maximum of 5.2 m.
  • Fixed to posts using a full length clamp bar.
  • Available either bolt down, in ground or on wall.

General information

Color

Green

Black

Grey

Other

Finish

Galvanized

Powder-coated

Material

Metal

Width

2515 mm

Height

2007 mm

2438 mm

2997 mm

Uniclass

Ss_25_14_61_51 Metal mesh panel fencing systemsPrimary

CAWS

Q40/125 Open mesh steel panel general purpose fencing

Q40/27 Open mesh steel panel general purpose fencing

Q40/30 Proprietary fencing

Q40/430 Proprietary fencing

Specification data - Metal mesh panel fencing systems

Standard

To BS1722, ISO 12944.

Posts

80 x 40 mm rectangular hollow section (RHS) posts.

Guidance for specification option:

2750 mm long for fixing in ground 670 mm and spaced at a maximum of 3025 mm centres.

100 x 50 mm rectangular hollow section (RHS) posts.

Guidance for specification option:

3100 mm long for fixing in ground 670 mm and spaced at a maximum of 3025 mm centres.

Manufacturer guidance

2750 mm or 3100 mm m long for fixing in ground 670 mm and spaced at a maximum of 3025 mm centres.

Panels

HiSec SR1 mesh.

Guidance for specification option:

Comprising of 12.7 x 76.2 mm mesh with single 4 mm vertical wires at 76.2 mm centres and 4 mm horizontal wires at 12.7 mm centres.

System accessories

Not required.

Pedestrian gates.

Guidance for specification option:

Single leaf, 1.2 m wide, or width to suit, consult manufacturer and insert requirements.

Vehicular gates.

Guidance for specification option:

Double leaf, 3.0 m wide, or width to suit, consult manufacturer and insert requirements.

Height

2007 mm.

2438 mm.

2997 mm.

Manufacturer guidance

Additional heights available upon request.

Applied finishes

Galvanized and polyester powder coated.

Fixing

Bolt down.

In ground.

Wall.

Gates

50 x 50 mm RHS frame, Zaun HiSec mesh welded inside the frame, slide latch, rubber bump stop and two gate posts.

Guidance for specification option:

Vehicular access also supplied with drop bolts.

SecurityRating

Not required.

SR1.

Guidance for specification option:

Opportunist attack by bodily force using minimal tools (screwdriver, knife, pliers). Single Fix only. Consult manufacturer for details.

Panel fixings

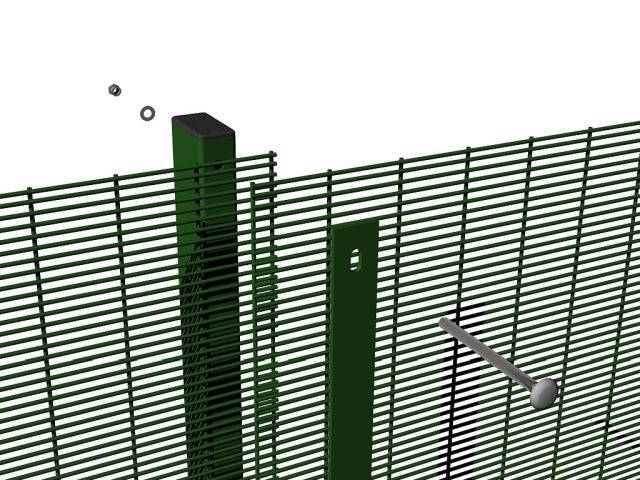

Panels fixed to posts with full height 40 x 5 mm clamp bar with stainless steel fixings at 400 mm centres.

Guidance for specification option:

The full height clamp bars create a safe finish with the mesh ends behind the clamp bar.

Width

2976 mm.

Mesh size

76.2 x 12.7 mm.

WireDiameter

4 mm / 4 mm.

Guidance for specification option:

Vertical x Horizontal.

Fixings

Stainless steel through bolts.

Nuts and washers.

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

Recyclability

All steel components can be 100% recycled at end of life

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

90 %

Third party certifications

BRE Certificate

LPS 1175
