HiSec SR2 (B3) Rated Security Fencing

Name: HiSec SR2 (B3) Rated Security Fencing
Brand: Zaun Limited
SKU: mVxzVFUsXDdgxNHUFGsgJg

Verified by manufacturer 3 months ago

Zaun Limited

Single Skin LPS 1175 SR2 (B3) High Security Fence

Jump to:

+44 (0)1902 796699 Website

Application

Civic and public sector.

Health and emergency services.

High security.

Industrial.

Schools and education.

Transport and infrastructure.

Utilities.

Description

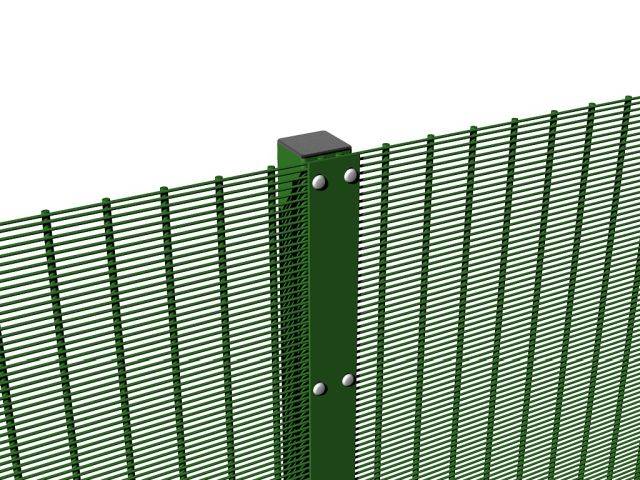

HiSec Super SR2 has been developed in consultation with the Home Office as a premier high security system, aimed at high profile and sensitive sites requiring the maximum perimeter protection. It is based on HiSec, but is even stronger, presenting a formidable barrier to anyone trying to gain unauthorised access. HiSec Super SR2 comes with 4 mm horizontal wires and 10 mm diameter vertical wires with 76.2 mm spacing.

The systems have achieved Secured by Design accreditation from the Association of Chief Police Officers and Security Rating certification to LPS1175 and entry into the Red Book from the Buildings Research Establishment – with Super 10 achieving SR2. It uses the SR2 post configuration for added strength and security. The preformed post uses integrated side plates, ensuring that adjacent panels do not overlap. A clamp bar and non-removable external fixings leave no weakness in the fence line. Slotted fixing holes mean installation is easy and leaves a neat, flush fitting.

Features and benefits:

Features in the Red Book LPCB1175.
Approved, Security Rated at SR2.
Secured by Design and CPNI approved.
Designed with thicker 10 mm vertical wires to eliminate the need for a double skin 358 mesh system and reduce attack effectiveness.
Increased security with a single panel system and improves installation time.
The tight welded mesh offers no climbing aids and mitigates attack by hand and powered tools and excellent visibility.
Single panel heights can be supplied of up to a maximum of 5.2 m.
Panel is flush to the post and fixed to posts using a dual fixing full length clamp bar.

General information

Color	Green Black Other Grey
Finish	Galvanized Powder-coated
Material	Metal
Width	2515 mm
Height	2007 mm 2438 mm 2997 mm

Uniclass	Ss_25_14_61_51 Metal mesh panel fencing systemsPrimary
CAWS	Q40/125 Open mesh steel panel general purpose fencing Q40/27 Open mesh steel panel general purpose fencing Q40/30 Proprietary fencing Q40/430 Proprietary fencing

Specification data - Metal mesh panel fencing systems

Standard	To BS1722, ISO 12944, BS-EN 10223-4.
Posts	80 x 80 mm rectangular hollow section (RHS) posts. Guidance for specification option: Sizes dependent on height, spaced at 2525 mm centres.
Panels	HiSec Super10 mesh. Guidance for specification option: Comprising of 76.2 x 12.7 mm mesh with single 10 mm vertical wires at 76.2 mm centres and 4 mm horizontal wires at 12.7 mm centres.
System accessories	Not required. Pedestrian gates. Guidance for specification option: Single leaf, 1.2 m wide, or width to suit, consult manufacturer and insert requirements. Vehicular gates. Guidance for specification option: Double leaf, 3.0 m wide, or width to suit, consult manufacturer and insert requirements.

Height	2438 mm. 2997 mm. Manufacturer guidance Additional heights available upon request.
Applied finishes	Galvanized and polyester powder coated.
Gates	100 x 50 mm RHS fame, Zaun HiSec Super mesh bolted onto the frame using the Zaun picture frame design, slide latch, rubber bump stop and two gate posts. Guidance for specification option: Vehicular access also supplied with drop bolts.
Panel fixings	Panels fixed to posts with full height 80 x 5 mm clamp bar with twin stainless steel bolt fixings at 400 mm centres. Guidance for specification option: The full height clamp bars create a safe finish with the mesh ends behind the clamp bar.
Width	2515 mm.
Mesh size	76.2 x 12.7 mm.
TensileStrength	To BS-EN 10223-4, 350-650 N/mm².
Fixings	Stainless steel through bolts. Nuts and washers.
