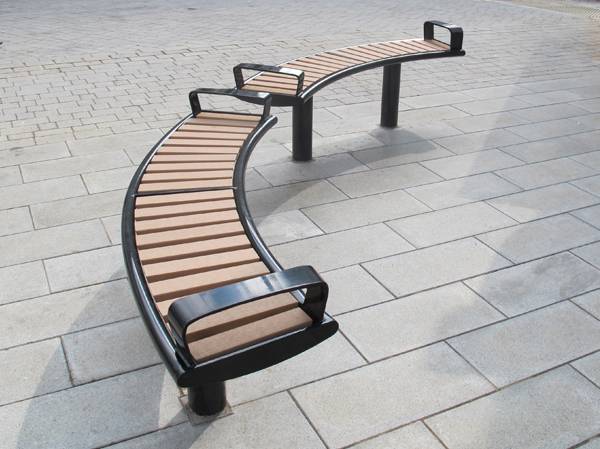

Horizon Bench - Curved
Verified by manufacturer 3 months ago
ZNF RB 186
ZNF RB 186
Made in Britain
Certificate type
Contemporary curved steel and timber bench.
Application
Suitable for rural and urban settings.
Description
Curved steel and timber bench available in a wide range of sizes and configurations. Each curved bench seat is designed to accommodate three people.
Features and benefits:
- Outdoor curved benches can be used independently, in pairs or multiples to create arcs, wave forms or linked to form complete seating circles.
- Four radiuses are offered as standard from 1.8–3.6 m overall.
- A galvanized steel frame is supplied as standard with posts for in-ground fixing.
- The slats on curved benches are arranged in a radial/ front-to-back layout.
General information
Color | Brown Silver Grey Other Guidance for specification option: Polyester powder coated to any RAL colour. |
Finish | Smooth Satin Bright Powder-coated Galvanized |
Material | Stainless steel Steel Timber Plastic |
Shape | Circle Guidance for specification option: Curved. |
Size | Manufacturer guidanceLength: 1890 mm (on centre line). |
Warranty description | One year |
Uniclass | |
CAWS | Q50/220 Benches Q50/30 Street furniture |
Product range |
Specification data - Street and site benches
Length | 1.89 m.Guidance for specification option: On the centre line. |
Base | Root fixed.Guidance for specification option: Standard. Bolt down. |
Material | Standard: Steel frame and iroko timber slats. |
Finish as delivered | Standard: Galvanized frame and smooth planed slats. |
Colours | RAL.Guidance for specification option: Polyester powder coated to any RAL colour. |
Slats | Iroko timber, smooth planed finish. Guidance for specification option: Standard. Iroko timber, UV protective finish. Wood plastic composite (WPC). |
Frame | Stainless steel, grade 1.4301 (304), bright polished. Stainless steel, grade 1.4301 (304), satin polished. Stainless steel, grade 1.4401 (316), bright polished. Stainless steel, grade 1.4401 (316), satin polished. Steel, galvanized finish. Guidance for specification option: Standard. |
Armrests | Not required. Required. |
Anti-skate device | Not required. Required. |
Form | 60°/ 1.8 m radius, six benches make a full circle. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Third party certifications
Made in Britain
Made In Britain
