Hospital Sink - G22048
Verified by manufacturer over a year ago
(G22048L) 215.0000.030
(G22048L) 215.0000.030

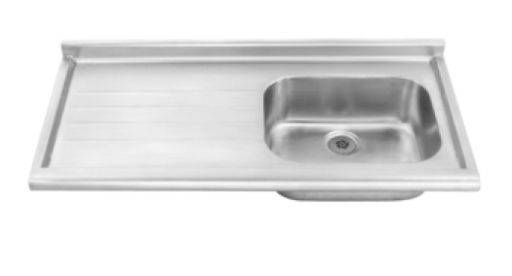

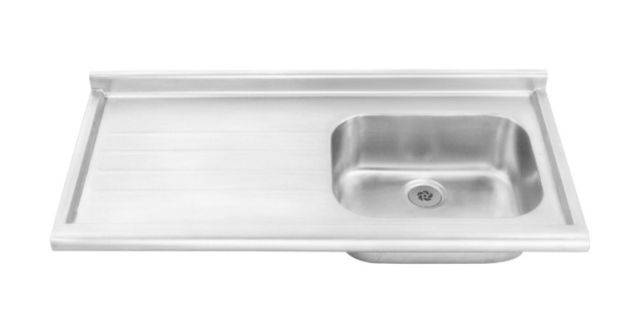

Sit-on sink with left or right hand drainer.
Application
For use in hospital setting.
Description
A sit-on single sink with left or right hand drainer.
Features and benefits:
- Can be mounted onto a cabinet, stainless steel cantilever brackets or stainless steel front leg supports (available separately).
- Radiused front edge 1000 x 650 mm.
- Single bowl with a depth of 200 mm.
- Available with or without tapholes.
- Single drainer.
- 38 mm BSP flush grated waste outlet, (F2068) 203.0000.288.
- For use with wall mounted bib taps.
- No overflow.
General information
Color | Silver |
Finish | Satin |
Material | Stainless steel |
Shape | Rectangle |
Length | 650 mm |
Width | 1000 mm |
Height | 220 mm |
Warranty description | Five year |
Uniclass | |
CAWS | N13/25 Sinks N13/331 Sinks |
Product range |
Specification data - Sinks
Form | Sit-on. |
Bowls | One. |
Drainers | One, left hand. |
Materials | |
Body | Stainless steel type 1.4301 (304). |
Finish and colour | Satin, silver.Guidance for specification option: Brushed polished satin finish. |
Size | 1000 x 650 x 220 mm.Guidance for specification option: Bowl depth 200 mm. |
Water supply, overflow and waste holes | |
Water supply | No tap holes. |
Overflow | No overflow hole. |
Waste | 38 mm BSP flush grated waste outlet, (F2068) 203.0000.288. |
Integral accessories | (G26523L) 215.0000.047 Cantilever wall bracket (left-hand) 40 x 180 x 557 mm.(G26523R) 215.0000.049 Cantilever wall bracket (right-hand), 40 x 180 x 557 mm.(G26524L) 215.0000.050 Front leg support, left-hand.(G26524R) 215.0000.052 Front leg support, left-hand. |
Product Reference | (G22048L) 215.0000.030 Guidance for specification option: No tapholes. (G22048R) 215.0000.032 Guidance for specification option: No tapholes. (G22048LT) 215.0000.031 Guidance for specification option: Two tapholes at 200 mm centres. (G22048RT) 215.0000.033 Guidance for specification option: Two tapholes at 200 mm centres. |
Accessories/ Other requirements | (G26523L) 215.0000.047 Cantilever wall bracket (left-hand) 40 x 180 x 557 mm. (G26523R) 215.0000.049 Cantilever wall bracket (right-hand), 40 x 180 x 557 mm. (G26524L) 215.0000.050 Front leg support, left-hand. (G26524R) 215.0000.052 Front leg support, left-hand. |
Steel thickness | 1.2 mm. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | Poland |
Recyclability | Manufacturer guidanceRecyclable. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
