Hospital Sink - G22052

Verified by manufacturer over a year ago

KWC DVS Limited

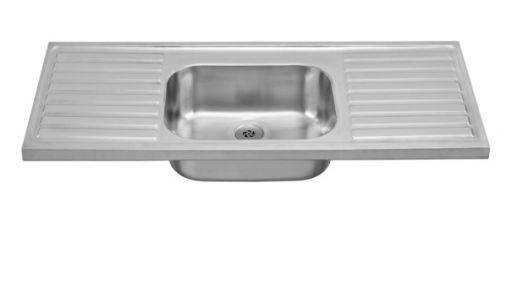

Sit-on sink with double drainer.

Jump to:
BOS
+44 (0)1246 458900 Website

Application

For hospital use.

Description

A sit-on single sink with double drainer which can be mounted onto a cabinet, stainless steel cantilever brackets or stainless steel front leg supports (available separately).


Features and benefits:

  • Radiused front edge 1800 x 650 mm.
  • Bowl depth of 200 mm.
  • Available with or without tapholes.
  • Two drainers.
  • 38 mm BSP flush grated waste outlet, (F2068) 203.0000.288.
  • For use with wall mounted bib taps.
  • No overflow.

General information

Finish

Satin

Material

Stainless steel

Length

650 mm

Width

1800 mm

Height

220 mm

Warranty description

Five year

Uniclass

Pr_40_20_96_81 SinksPrimary

CAWS

N13/25 Sinks

N13/331 Sinks

Product range

Sinks

Specification data - Sinks

Form

Sit-on.

Bowls

One.

Drainers

Two.

Materials

-

Body

Stainless steel type 1.4301 (304) to BS EN 10088-1.

Finish and colour

Satin.

Size

1800 x 650 mm.

Water supply, overflow and waste holes

-

Water supply

No tap holes.

Two tap holes.

Overflow

No overflow hole.

Waste

Centre.

Product Reference

(G22052N) 215.0000.038

Guidance for specification option:

No tap holes.

(G22052NT) 215.0000.039

Guidance for specification option:

Two tap holes.

Accessories/ Other requirements

(G26523L) 215.0000.047.

Guidance for specification option:

Cantilever wall bracket (left-hand) 40 x 180 x 557 mm.

(G26523R) 215.0000.049.

Guidance for specification option:

Cantilever wall bracket (right-hand), 40 x 180 x 557 mm.

(G26524L) 215.0000.050.

Guidance for specification option:

Front leg support, left-hand

(G26524R) 215.0000.052.

Guidance for specification option:

Front leg support, left-hand.

Sustainability data

Contains Red List materials

No

Country of product manufacture

Poland

Recyclability

Guidance for specification option:

Recyclable
