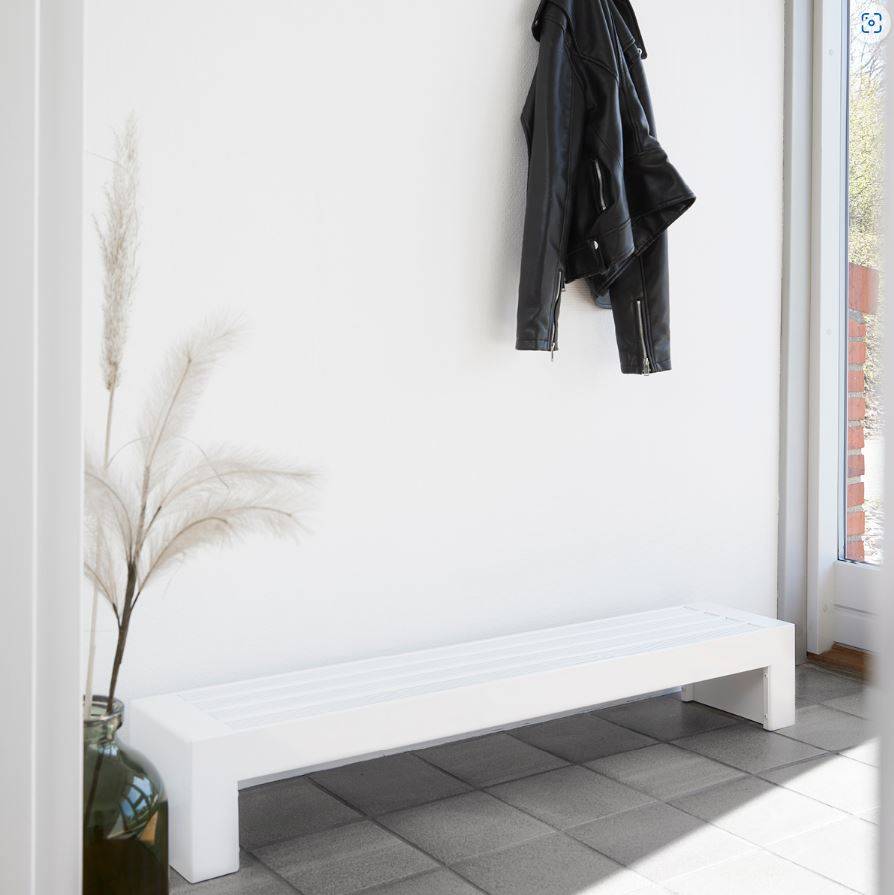

Hudevad Piso Fortis - Radiator bench

Name: Hudevad Piso Fortis - Radiator bench
Brand: Hudevad Radiator Design A/S
SKU: vFSihe221M46irfig8k8En

Verified by manufacturer 6 months ago

Type 43 Radiator Bench

Hudevad Radiator Design A/S

Third party certifications:

Independent sustainability assessment
Certificate type

Floor-mounted low convector with integrated legs.

Jump to:

+44 (0)24 7688 1200 Website

Application

Suitable for use in many public spaces as well as private homes.

Description

The Piso Fortis is a low convector and bench that is suitable for public as well as private spaces - especially in front of windows, where a high heat output is needed. Piso Fortis is equipped with convectors and therefore has a large heat output in relation to size. Use the 400 mm high bench in a hallway, bathroom or utility room for added comfort.

Features and benefits:

Pre-treatment by degreasing and steel phosphating in accordance with DIN EN 442 and DIN EN 12476.
Powder coated in accordance with DIN 55900, EN 442.
Max operating pressure 6 bar according to EN 442.
Panels: profiled steel tubes 70 x 11 x 1.8 mm.

General information

Color	White Guidance for specification option: White RAL 9016 70% Gloss. Other
Finish	Powder-coated
Material	Steel
Shape	Rectangle
Length	1000 mm 1100 mm 1200 mm 1300 mm 1400 mm 1500 mm 1600 mm 1700 mm 1800 mm 1900 mm 2000 mm 2100 mm 2200 mm 2300 mm 2400 mm 2500 mm 2600 mm 2700 mm 2800 mm 2900 mm 3000 mm Show more
Width	179 mm 235 mm
Height	190 mm 260 mm 330 mm 400 mm
Warranty description	Ten year

Uniclass	Pr_70_60_36_73 RadiatorsPrimary Pr_40_30_29_84 Street and site benches
CAWS	T90/465 Radiators Q50/220 Benches T90/465 Radiators Q50/33 Benches

Specification data - Radiators

Standards	To BS EN 442-1 and BS EN 442-2.
Radiator type	Quadruple panel triple convector.
Output	Guidance for specification option: Consult manufacturer and insert requirements.
Finish	Powder-coated. Guidance for specification option: In accordance with DIN 55900, EN 442.
Connections	Guidance for specification option: Consult manufacturer and insert requirements. Manufacturer guidance All connections 1/2” standard.
Accessories	Not required. Danfoss straight running valve. Guidance for specification option: 40130014. Danfoss thermostat. Guidance for specification option: RA 2990 40132610. Other. Guidance for specification option: Hudevad recommends use of Danfoss accessories when fitting the radiator. For further accessories please refer to the Hudevad Pricelist.

Panels	Profiled steel tubes. Guidance for specification option: 70 x 11 x 1.8 mm.
Colour	White RAL 9016, gloss 70. Guidance for specification option: Standard. Other. Guidance for specification option: Can be painted in other colours. Insert requirements.
TestPressure	8 bar.
Operating pressure (maximum)	6 bar.
Operating temperature	110°C.
Height	190 mm. 260 mm. 330 mm. 400 mm.
Depth	179 mm.
Length	1000 mm. 1100 mm. 1200 mm. 1300 mm. 1400 mm. 1500 mm. 1600 mm. 1700 mm. 1800 mm. 1900 mm. 2000 mm. 2100 mm. 2200 mm. 2300 mm. 2400 mm. 2500 mm. 2600 mm. 2700 mm. 2800 mm. 2900 mm. 3000 mm. Show more
Tapping configuration	Tapping code 50. Guidance for specification option: Tapping type: E/F, no valve. Tapping code 52. Guidance for specification option: Tapping type: FF, right. Tapping code 53. Guidance for specification option: Tapping type: EE, left. Manufacturer guidance See manufacturer literature for more information.

Sustainability data

Contains Red List materials	No
Country of material origin	Italy
Country of product manufacture	Latvia
Recyclability	Yes
Recycled content As defined in clause 7.8 of BS EN ISO 14021	100 %
