IAE Longton Smoking Shelter
Verified by manufacturer 28 days ago
ISO 9001 Quality Management
Certificate type
A steel-framed, 10 person smoking shelter. With UV resistant PETG cladding.
Application
Suitable for providing a sheltered smoking area for large industrial or commercial sites. The IAE Longton shelter has a capacity of up to 10 people.
Perfect for universities, workplaces, commercial sites, public transport stations, council estates and anywhere a sheltered smoking/waiting area solution is required.
A range of accompanying IAE furniture is available.
Description

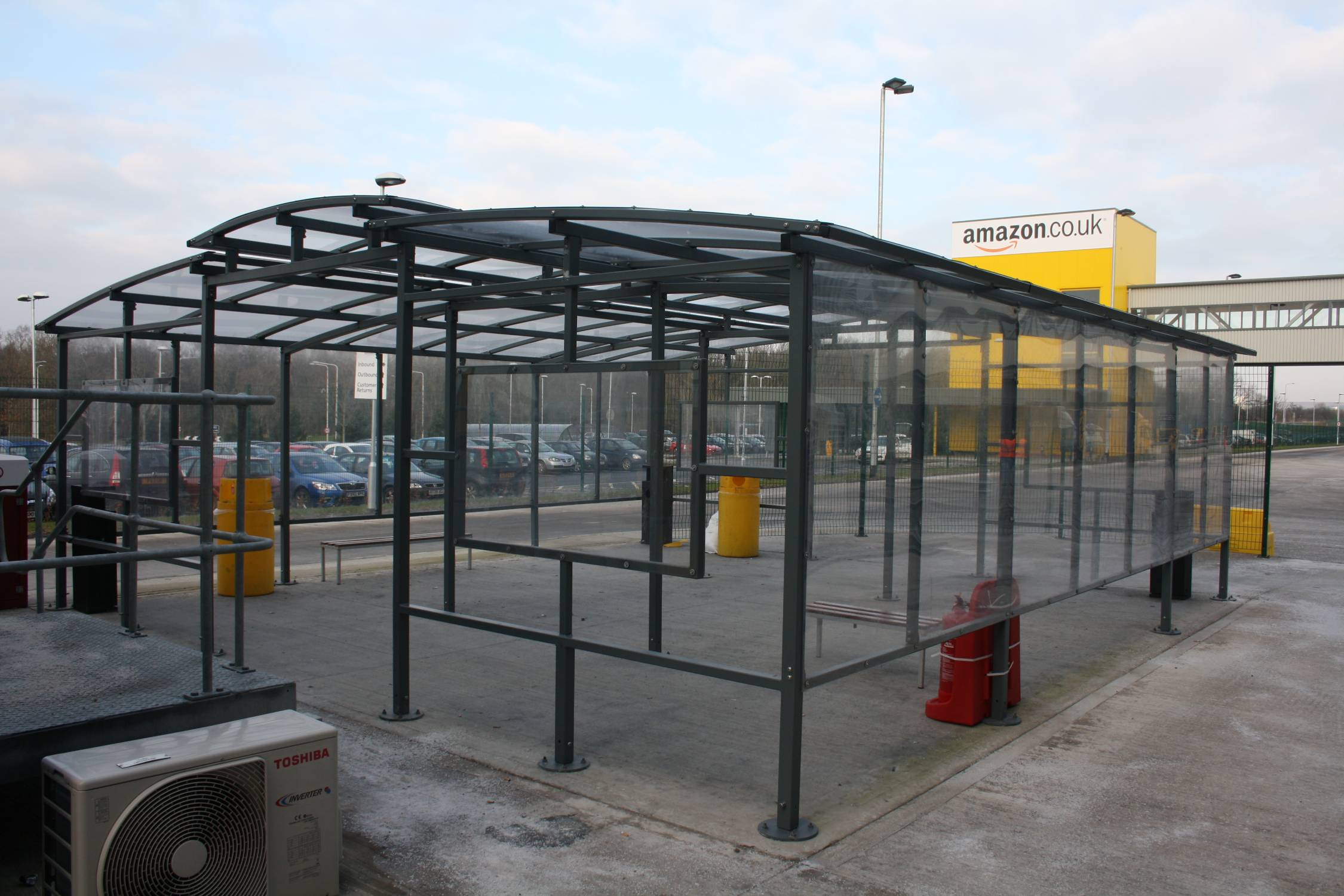

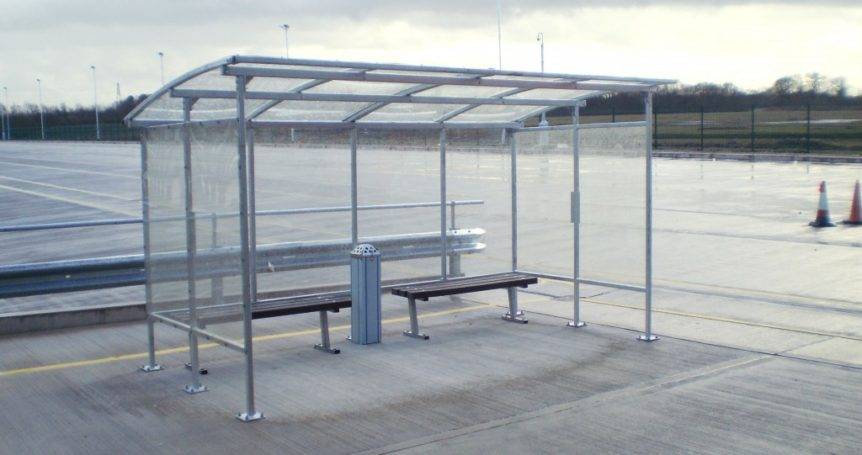

The IAE Longton Smoking Shelter is the largest smoking shelter in IAE’s standard range, suitable for up to ten people.
Particularly popular on larger sites such as universities, workplaces, public transport stations, commercial sites and anywhere a large sheltered smoking/waiting area is required.
The IAE Longton smoking shelter is fitted with UV resistant PETG roof panels as standard, that resist discolouring due to sun exposure, and the galvanized steel frame will resist rust and corrosion. This allows our shelters to last for a long time, even in the worst of conditions.
Features and benefits:
- Has a large capacity of up to 10 people, making it perfect for larger sites.
- Robust 50x50 SHS steel frame assembled with anti-tamper bolts.
- 4 mm UV resistant PETG cladding.
- Adjustable feet for easy on-site levelling.
- Compliant with all smoking legislation.
- Hot dip galvanized to BS EN ISO 1461.
Options:
- Powder-coating to a wide range of colours.
- A range of accompanying IAE furniture available.
General information
Color | Black Blue Green Yellow Other |
Finish | Powder-coated Galvanized |
Material | Steel |
Shape | Rectangle |
Length | 4125 mm |
Width | 2160 mm |
Height | 2310 mm |
Warranty description | Two year |
Uniclass | |
CAWS | B91/390 Smoking shelter |
Specification data - Semi-closed shelters
Shelter description | Rectangular, with curved roof. |
Dimensions | |
Plan size | 4020 x 2158 mm. |
Height | 2310 mm. |
Frame | |
Material | Structural steel. |
Finish | Galvanized.Guidance for specification option: As standard. Galvanized and powder-coatedGuidance for specification option: Optional. |
Colour | RAL 1021.RAL 5015.RAL 6005.RAL 7016.RAL 9005. |
Cladding | |
Material | Polyethylene terephthalate glycol (PETG). |
Colour | Clear. |
Roof covering | Polyethylene terephthalate glycol (PETG). |
Accessories | None.Alton bench.Alton seat.Tubular Ash Tower.Guidance for specification option: Stainless steel, fixing holes in the base for permanent ground fixing. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Turkey |
Country of product manufacture | United Kingdom |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 0.16 kg CO₂ eq/kg Self declared |
Recyclability | 100 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Third party certifications
Literature
IAE Longton Smoking Shelter Assembly & Maintenance Manual
Longton Smoking Shelter Specification Sheet
