Ideal Standard Calla 70cm washbasin, one taphole with overflow
Verified by manufacturer 2 months ago
EPD
Certificate type
Calla 70 cm washbasin, one taphole with overflow.
Application
Suitable for installation in residential and hotel applications.
Description

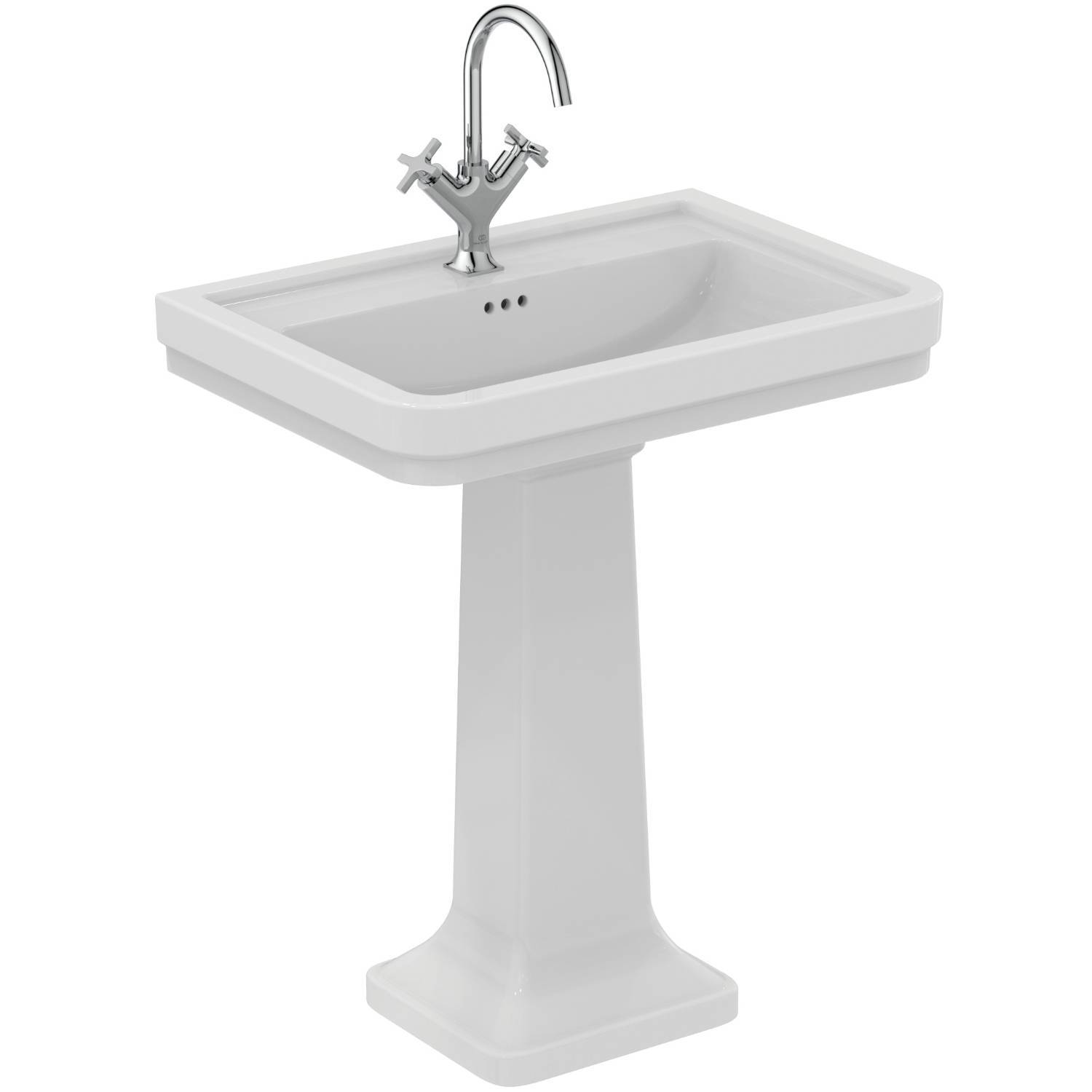

Calla basin, 715 x 500 x 175 mm in white glossy finish, one tap hole, with overflow.
Features and benefits:
- Complies to EN 14688 and BS EN 31.
- DoP classification CL25.
- Glossy white finish.
- Available as wall hung or full pedestal installation.
- Round overflow.
General information
Color | White |
Finish | Gloss |
Material | Vitreous china |
Shape | Rectangle |
Length | 500 mm |
Width | 715 mm |
Height | 175 mm |
Uniclass | |
CAWS | N13/30 Washbasins N13/335 Washbasins |
Specification data - Pedestal washbasins
Standard | To BS EN 14688. |
Overflow class | CL25. |
Form | Full pedestal.Wall-hung washbasin. |
Materials | |
Body | Vitreous china. |
Finish and colour | White. |
Size | 715 x 500 mm. |
Water supply, overflow and waste holes | |
Water supply | Single tap hole, centred. |
Overflow | Rear overflow hole. |
Waste | Bottom waste outlet. No chainstay hole. |
Integral accessories | Not required.Pedestal - E2224(01).Guidance for specification option: Supplied separately. Washbasin wall fixings - E0157(67).Guidance for specification option: Supplied separately. |
Net weight | 21.60 kg. |
Sustainability data
Contains Red List materials | No |
Material | Vitreous china |
Third party certifications
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Third party certifications
EPD
EPD - Ceramic Vitreous China
Literature
Atelier Collections Brochure
