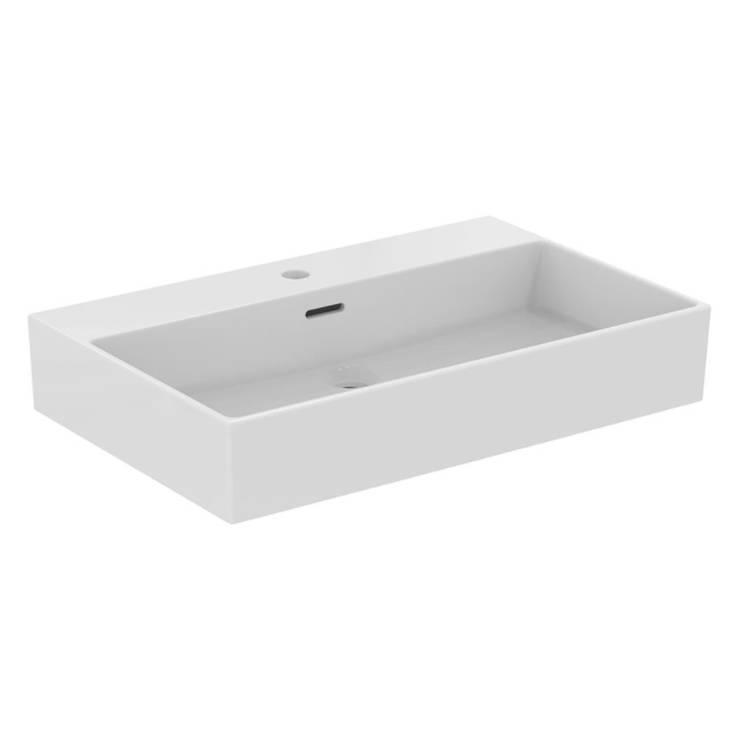

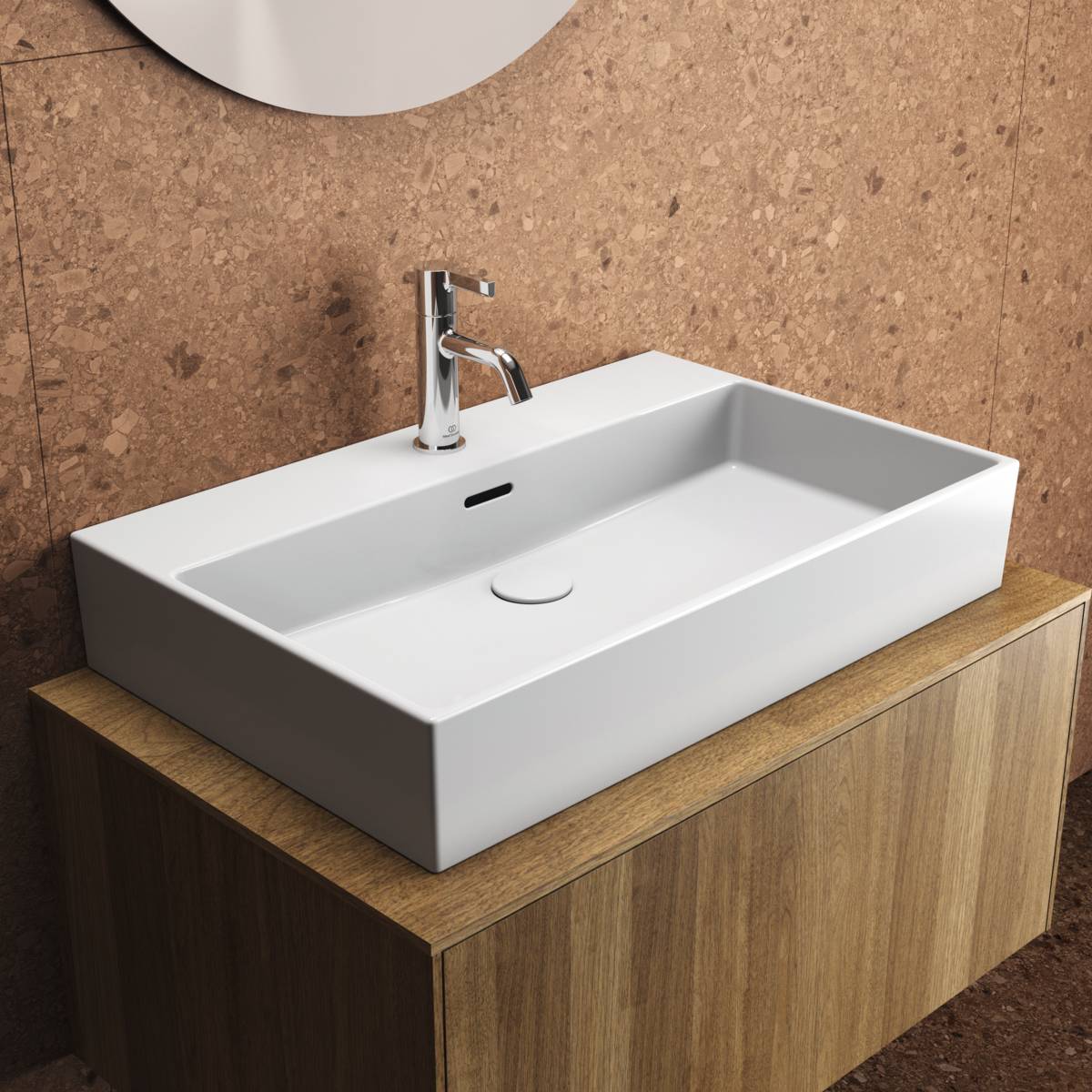

Ideal Standard Extra 70 cm Washbasin
Verified by manufacturer 1 month ago
EPD
Certificate type
One tap hole washbasin with overflow.
Application
Suitable for use as washbasin.
Description
Extra 70 cm one tap hole washbasin with overflow.
Features and benefits:
- No tap hole and three tap hole options also available.
- Integrated slotted overflow.
- Assortment of hand rinse, vessel and standard washbasins.
- Installation flexibility with wall, countertop and semi-countertop options.
- Washbasin wall mounted using E0157 wall fixing set with full pedestal mounted using two screws through the back of the basin (not supplied).
General information
Color | White |
Finish | Polished |
Material | Fireclay Ceramic |
Shape | Rectangle |
Length | 450 mm |
Width | 700 mm |
Height | 150 mm |
Warranty description | Lifetime |
Uniclass | |
CAWS | N13/335 Washbasins N13/30 Washbasins |
Specification data - Wall-hung washbasins
Standard | To BS EN 14688. |
Form | Wall-hung wash basin. |
Connecting dimensions | To BS EN 31. |
Materials | |
Body | Fireclay. |
Finish and colour | Polished.Manufacturer guidanceWhite. |
Size | 700 x 450 x 150 mm.Guidance for specification option: W x D x H. |
Water supply, overflow and waste holes | |
Water supply | Single tap hole, centred. |
Overflow | Rear overflow hole. |
Waste | Bottom waste outlet. No chainstay hole. |
Weight | 17.50 kg. |
Sustainability data
Material | Fireclay Ceramic |
Third party certifications
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Third party certifications
EPD
EPD - Ceramic Fine Fireclay
Literature
Atelier Collections Brochure
