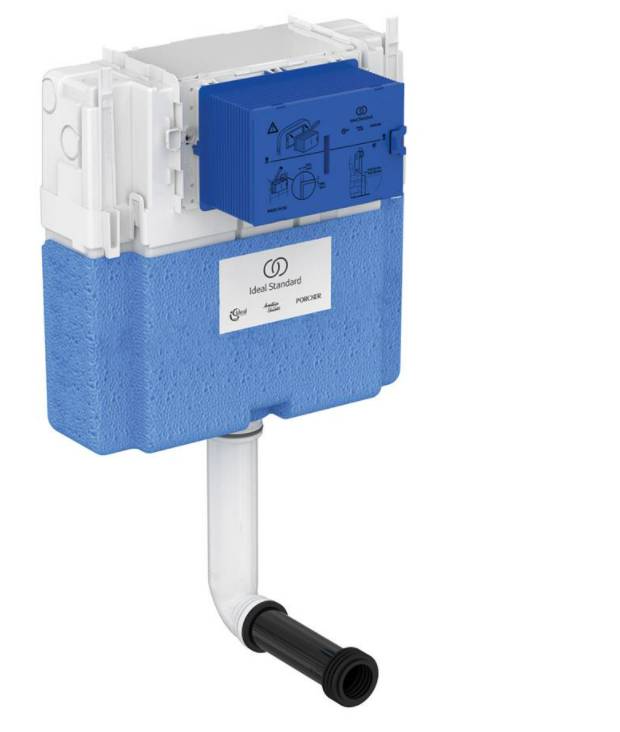

Ideal Standard ProSys 150 Depth WC Cistern, Mechanical
Verified by manufacturer 1 month ago
150 depth wc cistern, mechanical front or top actuation.
Application
Suitable for domestic or commercial applications.
Description
ProSys 150 depth WC cistern, mechanical front or top actuation.
Features and benefits:
- Mechanical actuation.
- 150 mm depth.
- Tool free maintenance.
- Wide range of contemporary flushplate options.
- Water saving smart valve (delay fill).
- Easy adjustment to 4.5/3 litre flush volume.
General information
Color | Blue White Black |
Finish | Guidance for specification option: Neutral / no finish (67). Manufacturer guidanceNeutral |
Material | Guidance for specification option: Mixed material. |
Shape | Rectangle |
Length | 150 mm |
Width | 440 mm |
Height | 405 mm |
Warranty description | Five year |
Uniclass | |
CAWS | N13/10 WC pans and flushing arrangements N13/75 Installing cisterns N13/300 WCs and cisterns |
Specification data - WC cisterns
Approval | Water Regulations Advisory Scheme (WRAS)-approved. |
Form | Concealed cistern. |
Operation | Flush plate. |
Materials | |
Body | Mixed material. |
Finish and colour | Neutral / no finish (67). |
Capacity | 4.5/3 L. |
Water supply, overflow and outlet holes | |
Outlet | Bottom outlet. |
Integral accessories | Not required.R0115 - Flush plate.Guidance for specification option: R0115(AA) Oleas M1 mechanical dual flushplate Ideal Standard - chrome. R0121 - WC Actuator.Guidance for specification option: Oleas M2 mechanical dual flushplate Ideal Standard - white. R0123 - WC Actuator.Guidance for specification option: Oleas M3 mechanical dual flushplate Ideal Standard - white. R0176 - Ancillary.Guidance for specification option: Prosys conversion kit (front to top actuation) for mechanical 150 depth frames & cisterns (for when using Oleas flushplates). S0767 - WC Actuator.Guidance for specification option: Oleas M2 mechanical dual flushplate Armitage Shanks - white. S0858 - WC Actuator.Guidance for specification option: Septa Pro M1 mechanical metal dual flushplate Armitage Shanks. S0859 - WC Actuator.Guidance for specification option: Septa Pro M2 mechanical metal single flushplate Armitage Shanks. |
Weight | 2.96 kg. |
Dimensions | 440 x 405 mm. Guidance for specification option: W x H. |
Sustainability data
Material | Guidance for specification option: Mixed material. |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Literature
Prosys
