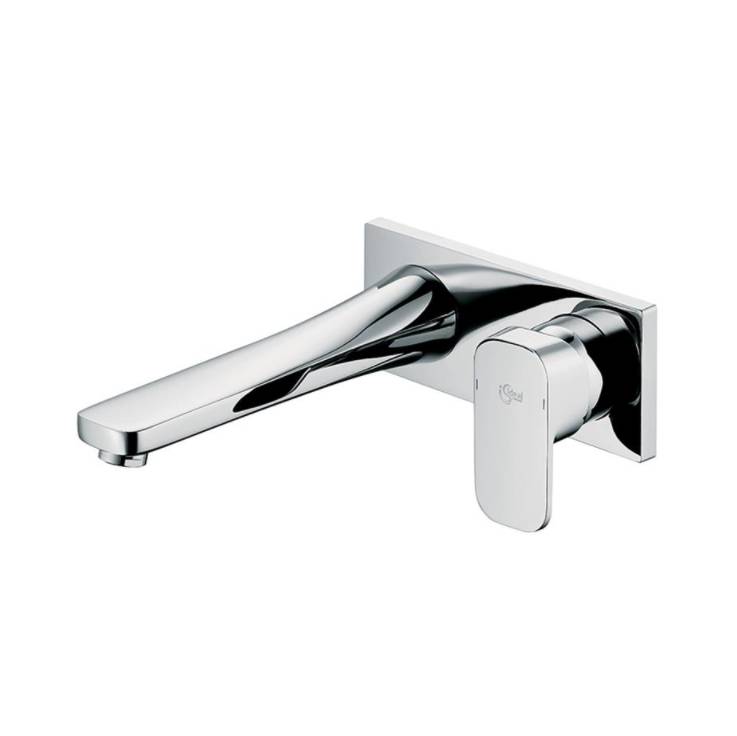

Ideal Standard Tonic II Single Lever Wall Mounted Basin Mixer With 225 mm Spout
Verified by manufacturer 1 month ago
EPD
Certificate type
Single lever wall mounted basin mixer with 255 mm spout.
Application
For use as wall mounted basin mixer.
Description
Single lever wall mounted basin mixer with 255 mm spout.
Features and benefits:
- Soft geometric design.
- Suitable for high pressure.
- 5lpm flow regulator.
- Temperature limiter.
- Available as 180 mm or 225 mm spout.
- Swivel outlet ±10°.
- Requires kit1 A5948NU.
- Weights: 1.78 kg.
- Flow rate: 5 litres per minute at 3 bar pressure.
- Suitable for balanced supplies. Inlets with G1/2" connections.
General information
Color | Silver |
Finish | Chrome |
Material | Metal |
Shape | Other |
Length | 241 mm |
Width | 193 mm Manufacturer guidanceAvailable as 180 mm or 225 mm spout. |
Height | 83 mm |
Warranty description | Five year |
Uniclass | |
CAWS | N13/335 Washbasins N13/30 Washbasins |
Specification data - Mixer taps
Form | Wall-mounted lever action bib taps on back plate elbows. |
Materials | |
Finish and colour | Chrome-plated. |
Flow rate (maximum) | 5 L/ min at 3 bar. |
Sustainability data
Material | Metal |
Third party certifications
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Third party certifications
EPD
EPD - Single lever mixer
Literature
Bathroom Collections brochure
Tap & Shower Collections
