Idealrain S1 Rain shower Fixed Shower Head With Angled Arm
Verified by manufacturer over a year ago

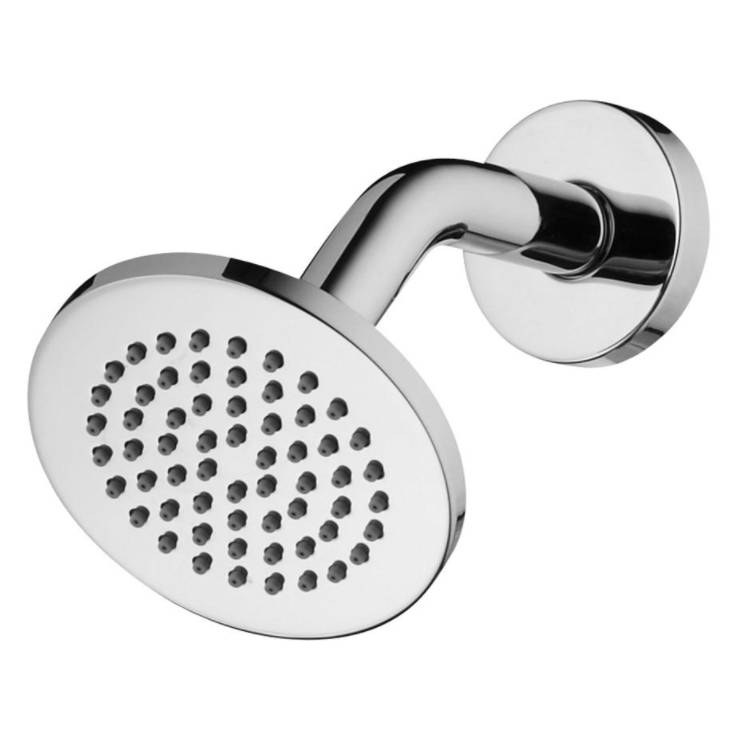

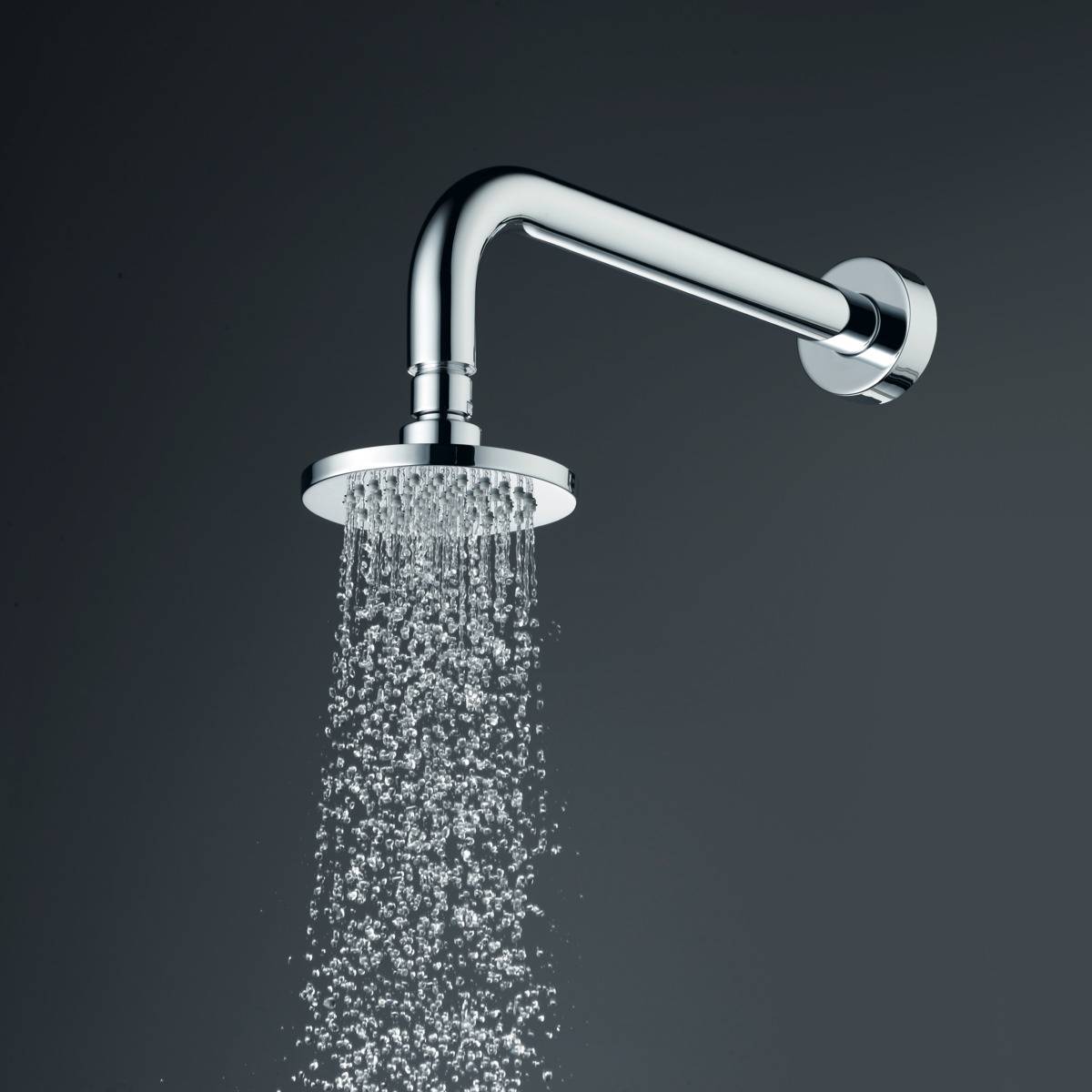

Fixed rain shower with 100 mm shower head with short angled arm.
Application
For use as fixed head rain-shower.
Description
Idealrain rain shower swivel, fixed shower head with short angled arm.
Features and benefits:
- Ø100 mm rain shower.
- Domestic and commercial use.
- For concealed supply.
- Removable 12 litre per minute eco flow regulator.
- Swivel head.
- Suitable for high pressure.
- Flow rate: 12 Litres per minute @ 3 bar pressure.
General information
Color | Silver |
Finish | Chrome |
Material | Metal |
Length | 184 mm Manufacturer guidance172 mm (Angled arm excluding 1/2 " male). 184 mm (Angled arm including 1/2 " male). |
Width | 102 mm |
Height | 132 mm Guidance for specification option: Angled arm. |
Warranty description | Five year |
Uniclass | |
CAWS | N13/375 Shower units N13/41 Shower heads |
SKU Code | B9436 |
Specification data - Shower heads
Classification data | |
Approval | Water Regulations Advisory Scheme (WRAS)-approved and Unified Water Label. |
Form | Single function fixed head and arm. |
Materials | |
Finish and colour | Chrome-plated. |
Size | 102 mm diameter. |
Weight | 0.52 kg. |
Dimensions | Manufacturer guidance172 x 132 mm (Angled arm excluding 1/2 " male L x H). 184 x 132 mm (Angled arm including 1/2 " male L x H). |
Sustainability data
Material | Metal |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Literature
