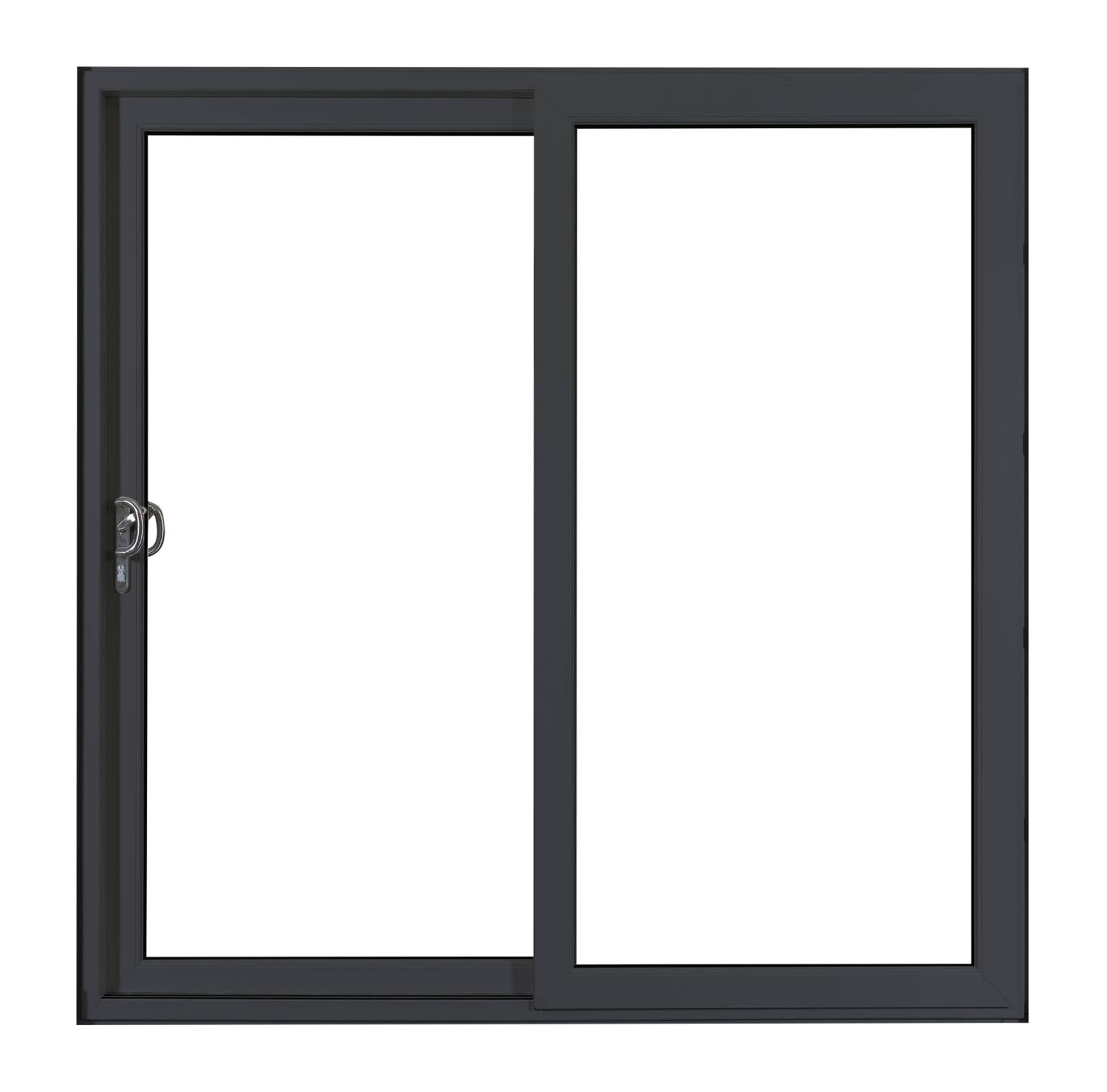

Imagine Patio Door
Verified by manufacturer today
Bevelled Bi-Fold Door
Bevelled Bi-Fold Door
BSI Kitemark
Certificate type
PVC-U patio doors with bevelled or sculptured profile.
Application
Suitable for all building types.
Description
Description
PVCu sliding patio door system designed to provide wide glazed openings with tested thermal, weather and security performance.
System Characteristics

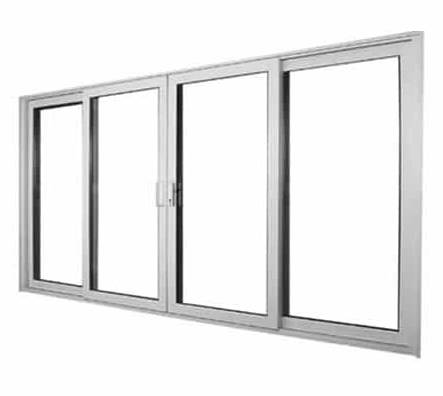

- Two, three or four pane configurations
- Sliding sash operation
- Internal or external sliding options
- Multiple threshold options (including a low easy access option which can be Part M compliant)
- Sculptured or bevelled sash options
Thermal performance
U-values achievable down to 1.1 W/m²K depending on configuration.
Weather performance
Typical tested performance:
- Air permeability: Class 3
- Water tightness: Class 5A
Security performance
- PAS 24:2022 certification
- Capability to meet Secured by Design requirements
Standards and Compliance
- Complies to BS EN 12608-1+A1:2020/ PAS 24:2022.
- VEKA window product information is independently assessed as CCPI-conformant.
- Manufactured under certified management systems: ISO 9001, ISO 14001 & ISO 50001.
General information
Color | Beige Black Blue Brown Cream Manufacturer guidanceAvailable in a large assortment of colours and woodgrain options from the Variations range and SPECTRAL. |
Finish | Coated Woodgrain |
Material | PVC-U |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | L20/60 Doors L20/530 Sliding folding external doors |
Specification data - Sliding folding doorsets
Classification data | |
Grade | External. |
Format | Internal sliding sashes. External sliding sashes. |
Track system | Manufacturer's standard. |
Door leaf | |
Construction | Manufacturer guidanceConsult manufacturer and insert requirements. Available in a range of optional configurations including; a choice of two, three or four pane opening sashes, an option for both doors to slide, internal or external sliding sashes, and multiple thresholds (including a low easy access option which can be Part M compliant). |
Finish | Manufacturer guidanceConsult manufacturer and insert requirements. Available in a large assortment of colours and woodgrain options from the Variations range and SPECTRAL*. * SPECTRAL is only available on bevelled or flat surfaces. |
Operation | Manual. |
Hardware | Manufacturer guidanceConsult manufacturer and insert requirements or omit. |
Accessories | Manufacturer guidanceConsult manufacturer and insert requirements or omit. Range of ancillary items available including:
|
Dimensions | Manufacturer guidanceConsult manufacturer and insert requirements. Maximum sash sizes:
|
Outer frame | 58 mm. |
Mid rails | 116 mm. |
Sash | 90 mm bevelled door sash. |
Glazing beads | 28 mm bevelled. 28 mm sculptured. 32 mm bevelled. |
Sustainability data
Country of product manufacture | United Kingdom |
Manufacturing plant location | |
Material | PVC-U |
Recyclability | Through our advanced recycling process, each PVCu frame can achieve a potential lifetime of 350 years. VEKA Recycling Ltd offer a fully circular solution for PVCu waste management. Collected and processed in the UK, for use in the UK. |
Expected Life | 35 year Guidance for specification option: Through our closed loop process, we can recycle windows and doors up to 10 times. This means each frame can achieve a potential lifetime of 350 years. Manufacturer guidanceThrough our closed loop process, we can recycle windows and doors up to 10 times. This means each frame can achieve a potential lifetime of 350 years. |
Product certifications
BSI Kitemark
Imagine Patio Door Kitemark™ Certificate No. KM 60983
