Imbris Aluminium Coping System
Verified by manufacturer 5 days ago
Aluminium coping system with hidden fixings, watertight brackets, and custom profiles. Provides durable, weatherproof protection for perimeter and parapet walls.
Application

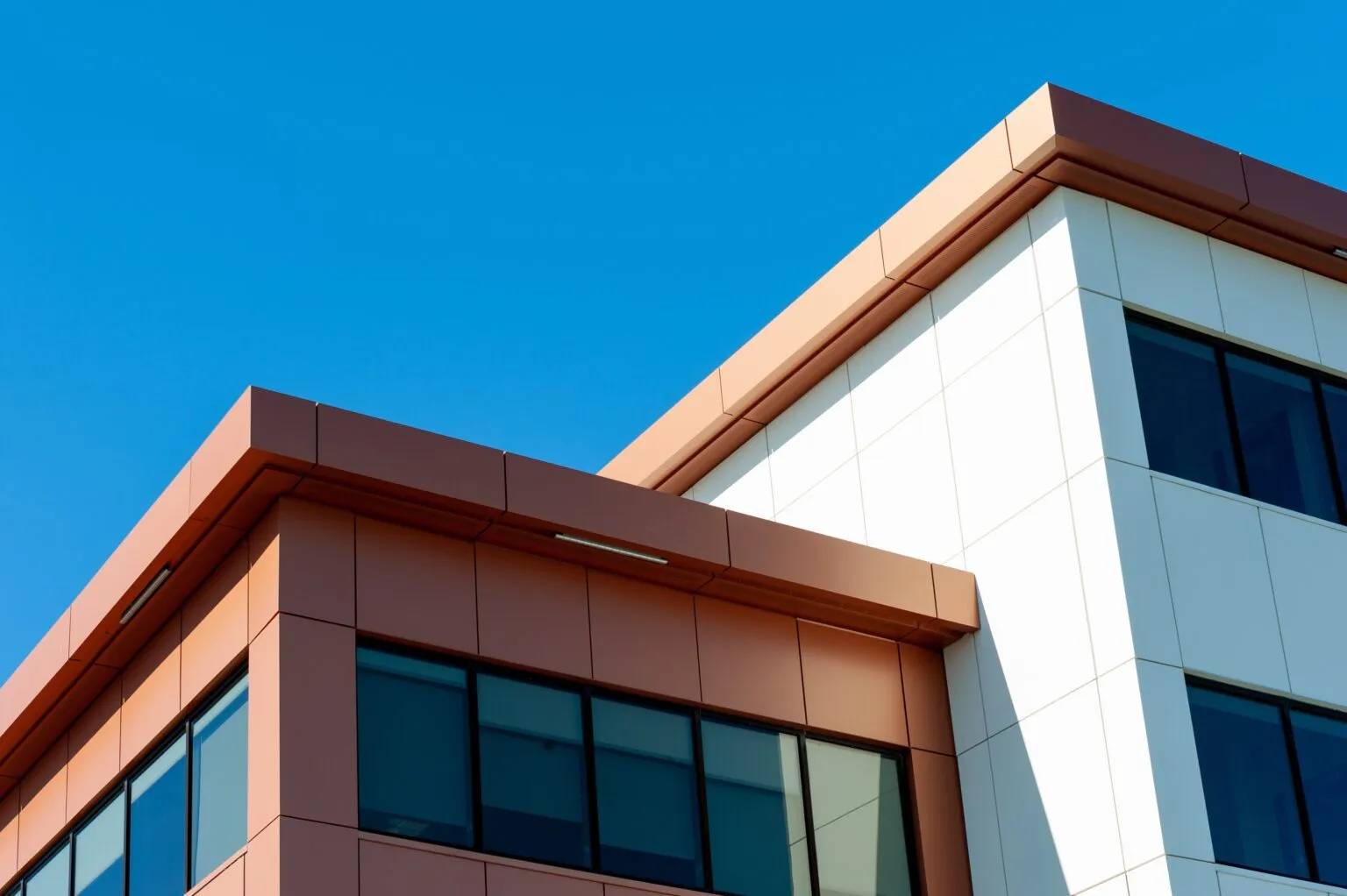

The Imbris Aluminium Coping System is suitable for new-build and refurbishment projects. Providing weatherproof protection to perimeter and parapet walls, offering a durable and low-maintenance solution with unobtrusive fixings that preserve architectural aesthetics.
Description

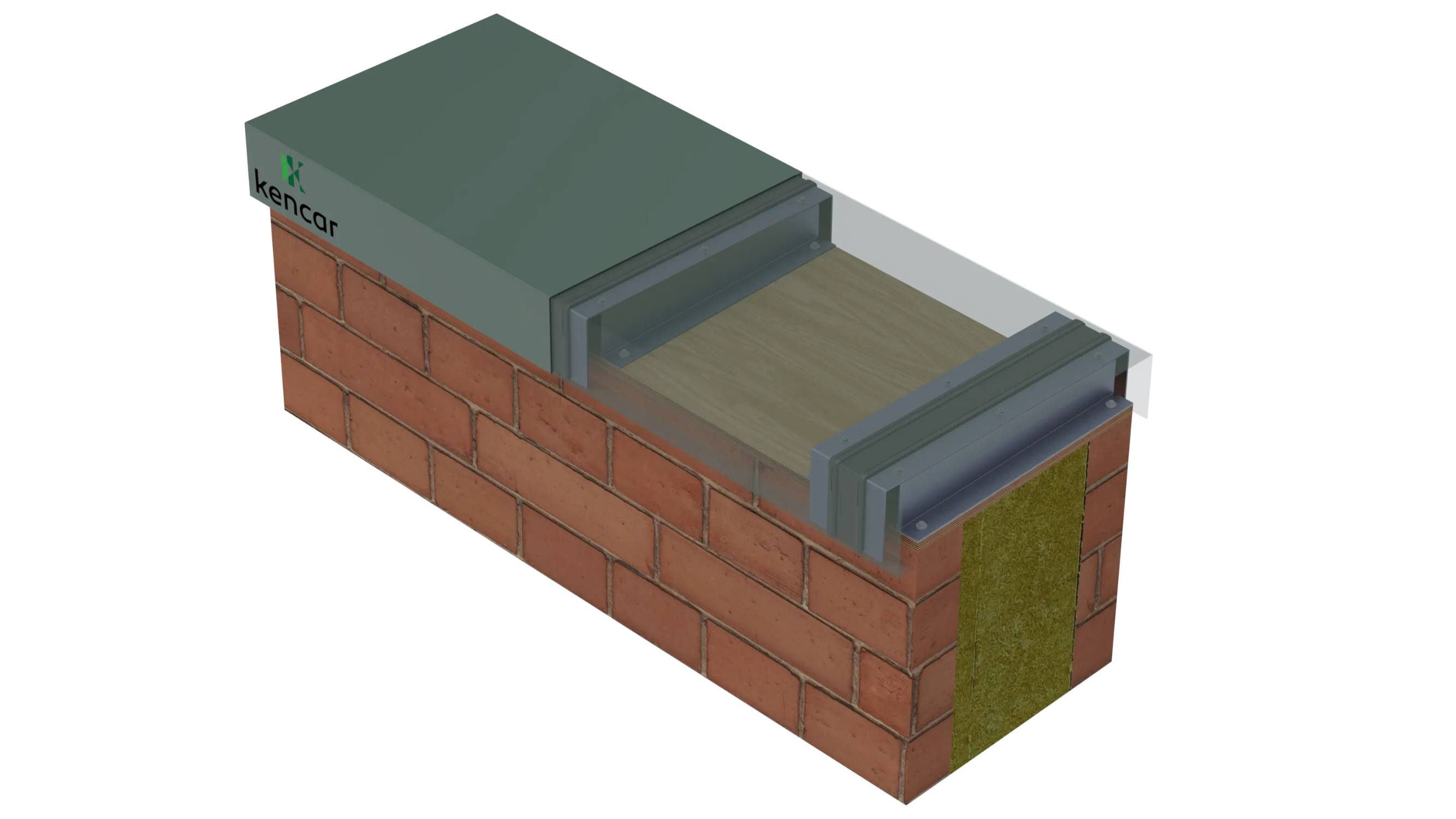

The Imbris Coping System is a precision-manufactured aluminium coping solution designed to protect perimeter and parapet walls from weathering while delivering a clean, contemporary finish.
Copings are secured with innovative two-part brackets featuring an extruded EPDM gasket, ensuring maximum adjustability and a watertight seal.
Panels are fixed from the roof side, eliminating the need for external access equipment and reducing installation time and cost. Fabricated in 2 mm or 3 mm aluminium, copings are available in modular sizes and can be polyester powder-coated or anodised in a wide range of finishes.
Pre-fabricated corners, T-sections, junctions, stop ends, and upstands are available to complete the system.
Features and benefits:
- Provides weatherproof protection for perimeter and parapet walls.
- Innovative two-part brackets with EPDM gasket for watertight performance.
- No joint straps required.
- Unobtrusive fixings.
- Easy install.
- Pre-fabricated corners, T sections, junctions, stop ends and upstands.
- Bespoke tapered top hats/ brackets to suit required coping fall.
- Suitable for wall widths from 150 mm to 950 mm.
- Can be complemented by Kencar's aluminium fascia and soffit, rainwater products and goods.
General information
Color | Other |
Finish | Powder-coated Anodized Mill |
Material | Aluminium |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | 25 year Guidance for specification option: PPC warranty (based on upkeeping of maintenance T&C's). |
Uniclass | |
CAWS | F30/80 Coping units F30/780 Coping systems H72/250 Weathering to H72/12 Weathering to |
Specification data - Aluminium coping units
Classification data | |
Finish | Powder-coated. Anodized. |
Material thickness (minimum) | 2 mm. 3 mm. |
Dimensions | Manufacturer guidanceSuitable for wall widths from 150 mm to 950 mm. Insert requirements or refer to a drawing. |
Fixings | Manufacturer's standard. |
Accessories | Not required. Pre-fabricated corners. T sections. Junctions. Stop ends. Upstands. |
Sustainability data
Material | Aluminium |
